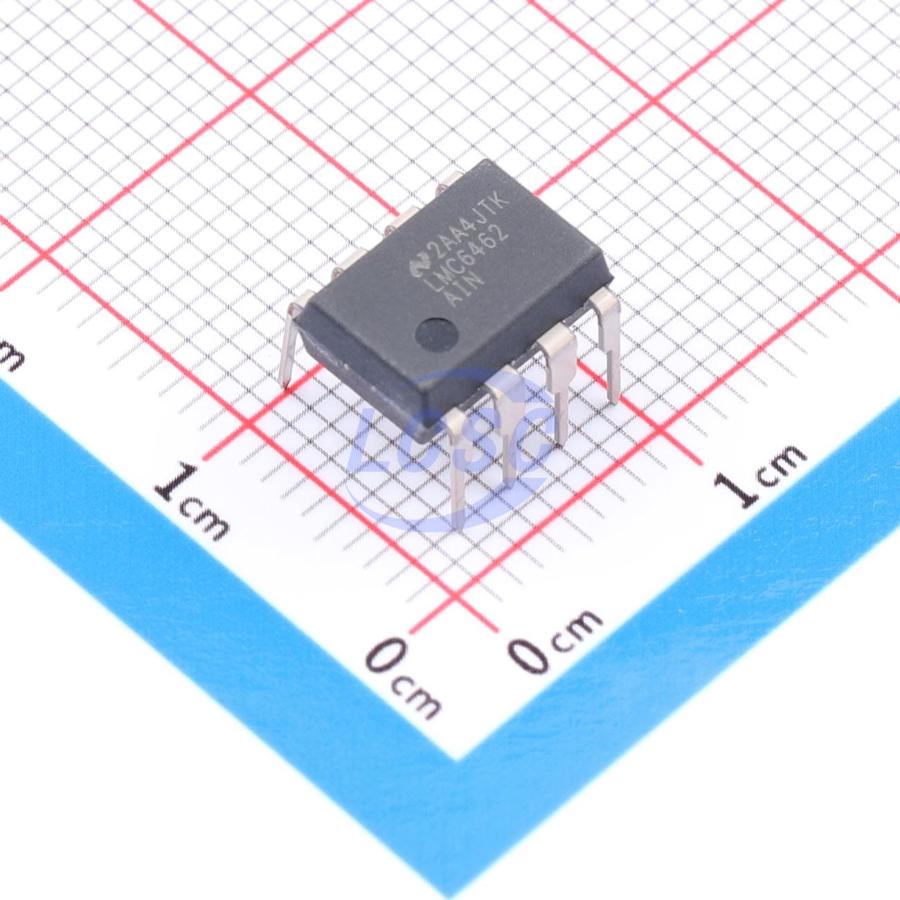

LMC6462AIN/NOPB

19mA 2 500uV 28V/ms 70dB 0.15pA 50kHz 40uA Rail-to-Rail Input, Rail-to-Rail Output PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS

PDIP-8ROHS3 CompliantDiscontinued

Dual/Quad Micropower, Rail-to-Rail Input and Output CMOS Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMC6462AIN/NOPB
Store part #: C1347189
Package / case: PDIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C1347189

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,315.10	₹1,315.10
10+	₹1,131.99	₹11,319.90
30+	₹1,020.58	₹30,617.40
100+	₹926.97	₹92,697.00

Quantity (min 1)

1 × ₹1,315.10

₹1,315.10

excl. GST

₹1,551.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 40 per tube

LMC6462AIN/NOPB

₹1,315.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 19mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 28V/ms
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 0.15pA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Gain Bandwidth Product: 50kHz
Quiescent Current: 40uA
Input Voltage Noise Density: 80nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3V~15.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Discontinued
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 40 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.32 g

Overview

The LMC6462/4 is a micropower version of the popular LMC6482/4, combining Rail-to-Rail Input and Output Range with very low power consumption. The LMC6462/4 provides an input common-mode voltage range that exceeds both rails. The rail-to-rail output swing of the amplifier, ensured for loads down to 25 KΩ, assures maximum dynamic signal range. This rail-to-rail performance of the amplifier, combined with its high voltage gain makes it unique among rail-to-rail amplifiers. The LMC6462/4 is an excellent upgrade for circuits using limited commonmode range amplifiers. The LMC6462/4, with ensured specifications at 3V and 5V, is especially well-suited for low voltage applications. A quiescent power consumption of 60 μw per amplifier (at VS = 3V) can extend the useful life of battery operated systems. The amplifier's 150 fA input current, low offset voltage of 0.25 mv, and 85 dB CMRR maintain accuracy in battery-powered systems.

Applications

Battery Operated Circuits
Transducer Interface Circuits
Portable Communication Devices
Medical Applications Battery Monitoring

Key features

Ultra Low Supply Current 20 μA/Amplifier
Ensured Characteristics at 3V and 5V
Rail-to-Rail Input Common-Mode Voltage Range
Rail-to-Rail Output Swing (within 10 mv of rail, VS = 5V and RL = 25 kΩ)
Low Input Current 150 fA
Low Input Offset Voltage 0.25 mv
