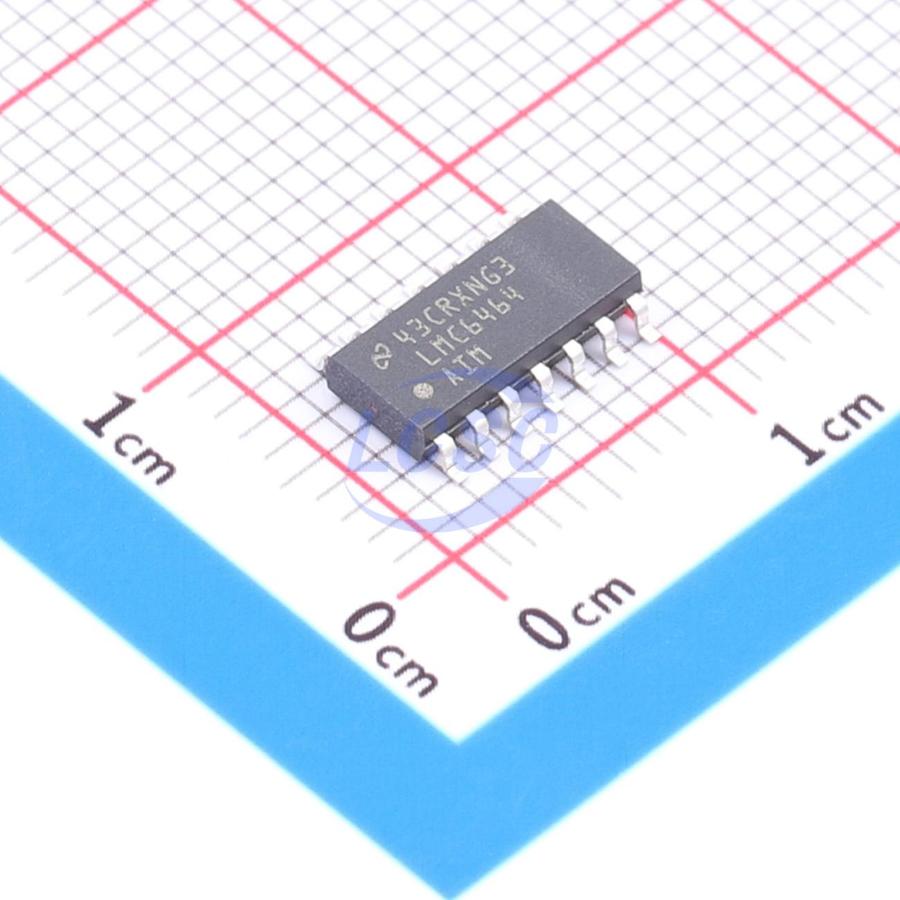

LMC6464AIMX/NOPB

The LMC6462/4 is a micropower version of the popular LMC6482/4, combining Rail-to-Rail Input and Output Range with very low power consumption. The LMC6462/4 provides an input common-mode voltage range that exceeds both rails. The rail-to-rail output swing of the amplifier, ensured for loads down to 25 KΩ, assures maximum dynamic signal range. This rail-to-rail performance of the amplifier, combined with its high voltage gain makes it unique among rail-to-rail amplifiers. The LMC6462/4 is an excellent upgrade for circuits using limited commonmode range amplifiers. The LMC6462/4, with ensured specifications at 3V and 5V, is especially well-suited for low voltage applications. A quiescent power consumption of 60 μw per amplifier (at VS = 3V) can extend the useful life of battery operated systems. The amplifier's 150 fA input current, low offset voltage of 0.25 mv, and 85 dB CMRR maintain accuracy in battery-powered systems.

Applications

• Battery Operated Circuits
• Transducer Interface Circuits
• Portable Communication Devices
• Medical Applications Battery Monitoring

Key features

• Ultra Low Supply Current 20 μA/Amplifier
• Ensured Characteristics at 3V and 5V
• Rail-to-Rail Input Common-Mode Voltage Range
• Rail-to-Rail Output Swing (within 10 mv of rail, VS = 5V and RL = 25 kΩ)
• Low Input Current 150 fA
• Low Input Offset Voltage 0.25 mv
