TIDatasheet (PDF)

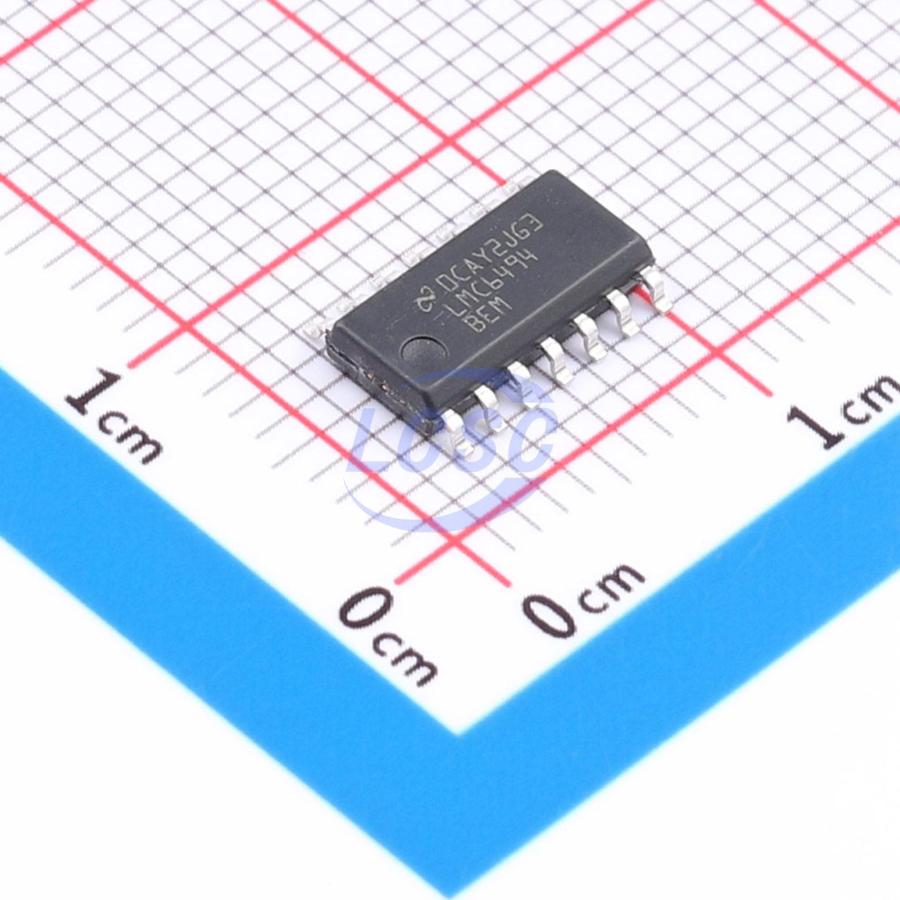

LMC6494BEMX/NOPB
16mA 4 6mV 700V/ms 63dB 200pA 3.5mA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
CMOS Rail-to-Rail Input and Output Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC6494BEMX/NOPB
- Store part #
- C2060253
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2060253
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹805.84 | ₹805.84 |
| 10+ | ₹786.95 | ₹7,869.50 |
| 30+ | ₹774.29 | ₹23,228.70 |
| 100+ | ₹761.62 | ₹76,162.00 |
1 × ₹805.84
₹805.84
excl. GST
₹950.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMC6494BEMX/NOPB
₹805.84 for 1 + GST
Specifications
- Output Current
- 16mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 63dB
- Ib - Input Bias Current
- 200pA
- Input Offset Voltage Drift(Vos TC)
- 6.8uV/℃
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 37nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~15.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
Rail-to-Rail Input Common-Mode Voltage Range, Ensured Over Temperature Rail-to-Rail Output Swing within 20mV of Supply Rail, 100 kΩ Load Operates from 5V to 15V Supply Excellent CMRR and PSRR 82 dB Ultra Low Input Current 150 fA High Voltage Gain (RL = 100 kΩ) 120 dB Low Supply Current (VS = 5V) 500 μA/Amplifier Low Offset Voltage Drift 1.0 μV/°C
Applications
- Automotive Transducer Amplifier
- Pressure Sensor
- Oxygen Sensor
- Temperature Sensor
- Speed Sensor
Key features
- Rail-to-Rail Input Common-Mode Voltage Range, Ensured Over Temperature
- Rail-to-Rail Output Swing within 20mV of Supply Rail, 100 kΩ Load
- Operates from 5V to 15V Supply
- Excellent CMRR and PSRR 82 dB
- Ultra Low Input Current 150 fA
- High Voltage Gain (RL = 100 kΩ) 120 dB
- Low Supply Current (VS = 5V) 500 μA/Amplifier
- Low Offset Voltage Drift 1.0 μV/°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLV2374QDRQ1#C2059386TI · SOIC-14 | TI | SOIC-14 | 53 | ₹146.47 · 53 in stock | View | |
 | LMC6484AIMX/NOPB#C67713TI · SOIC-14 | TI | SOIC-14 | 3,025 | ₹293.44 · 3,025 in stock | View |
 | LMC6484IMX/NOPB#C83401TI · SOIC-14 | TI | SOIC-14 | 884 | ₹289.31 · 884 in stock | View |
| TLV2374MDREP#C2878572TI · SOIC-14 | TI | SOIC-14 | 3 | ₹1,005.73 · 3 in stock | View | |
 | ISL28414FBZ#C1347758RENESAS · SOIC-14 | RENESAS | SOIC-14 | 49 | ₹401.11 · 49 in stock | View |
