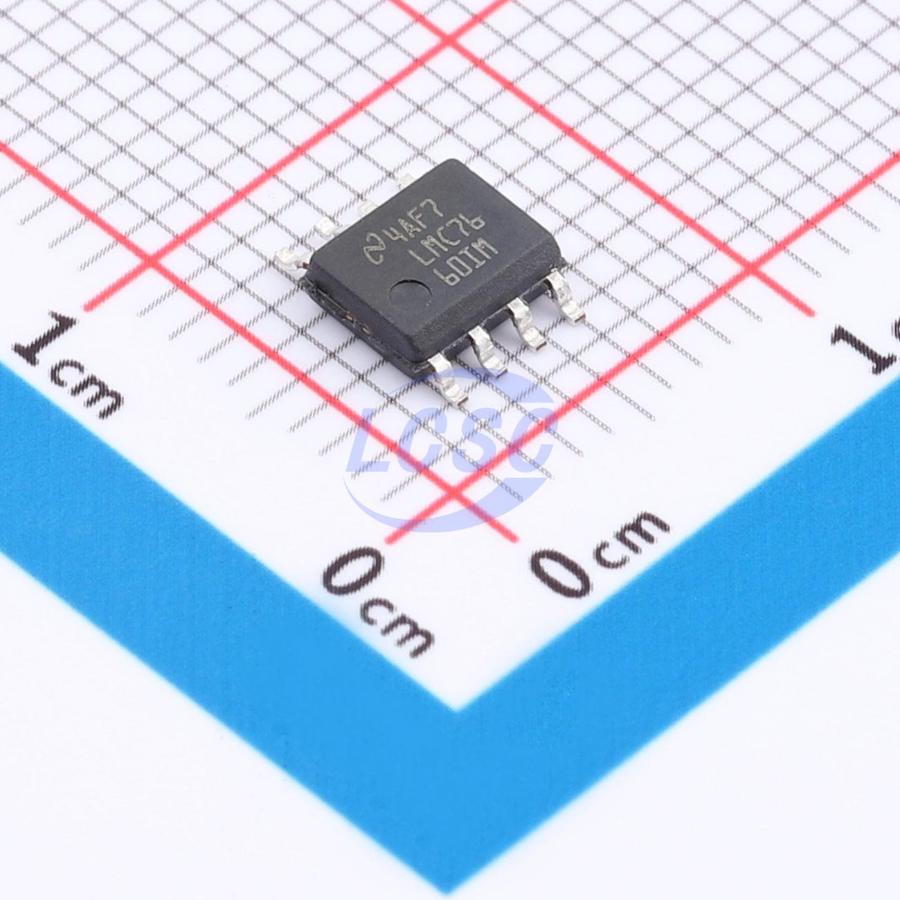

LMC7660IM/NOPB

10kHz Inverted -10V~-1.5V SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS3 CompliantActive

Switched Capacitor Voltage Converter

Manufacturer: TI
Manufacturer part #: LMC7660IM/NOPB
Store part #: C1355682
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3 in stock

#C1355682

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹124.68	₹124.68
10+	₹100.35	₹1,003.50
30+	₹88.19	₹2,645.70
100+	₹76.02	₹7,602.00
500+	₹68.86	₹34,430.00
1,000+	₹64.95	₹64,950.00

Quantity (min 1)

1 × ₹124.68

₹124.68

excl. GST

₹147.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 95 per tube

LMC7660IM/NOPB

₹124.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 10kHz
Function: Inverted
Features: Output short-circuit protection;Cascade support
Operating Voltage: 1.5V~10V
Output Voltage: -10V~-1.5V
Quiescent Current: 120uA
Energy Efficiency: 99.9%

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 95 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.863 g

Overview

The LMC7660 is a CMOS voltage converter capable of converting a positive voltage in the range of +1.5V to +10V to the corresponding negative voltage of -1.5V to -10V. The LMC7660 is a pin-for-pin replacement for the industry-standard 7660. The converter features: operation over full temperature and voltage range without need for an external diode, low quiescent current, and high power efficiency. The LMC7660 uses its built-in oscillator to switch 4 power MOS switches and charge two inexpensive electrolytic capacitors.
