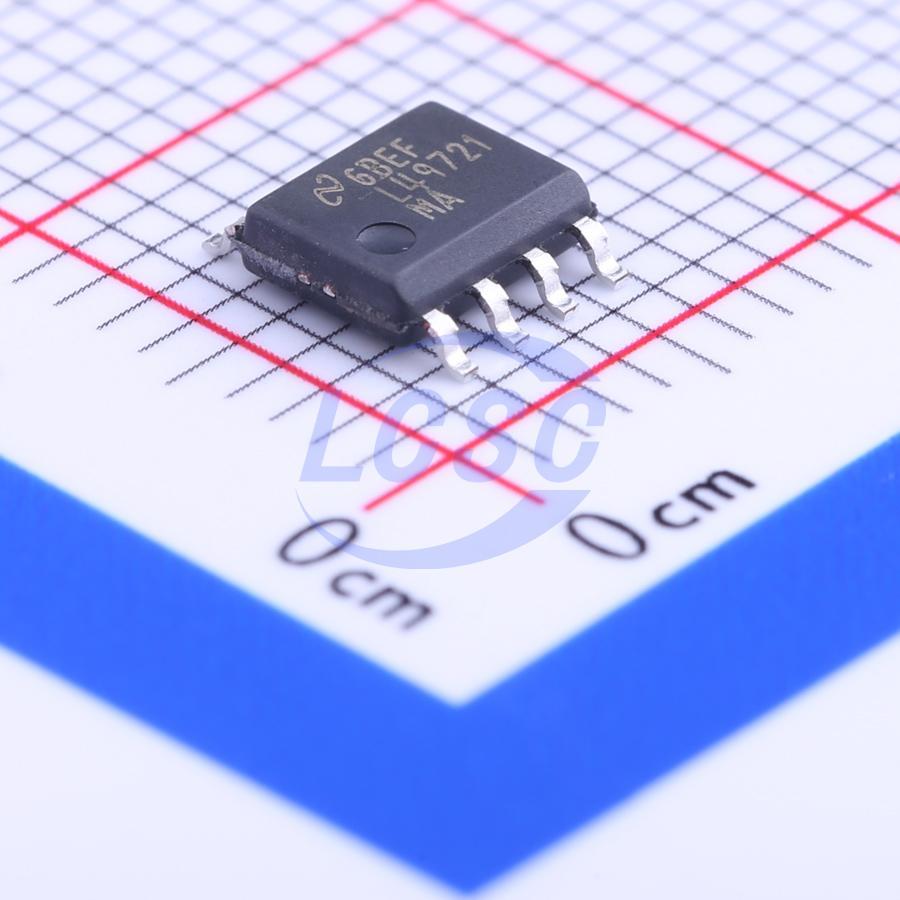

LME49721MAX/NOPB

The LME49721 is a low-distortion, low-noise Rail-toRail Input/Output operational amplifier optimized and fully specified for high-performance, high-fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LME49721 Rail-to-Rail Input/Output operational amplifier delivers superior signal amplification for outstanding performance. The LME49721 combines a very high slew rate with low THD+N to easily satisfy demanding applications. To ensure that the most challenging loads are driven without compromise, the LME49721 has a high slew rate of ±8.5V/μs and an output current capability of ±9.7mA. Further, dynamic range is maximized by an output stage that drives 10kΩ loads to within 10mV of either power supply voltage. The LME49721 has a wide supply range of 2.2V to 5.5V. Over this supply range the LME49721’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49721 is unity gain stable.

Applications

• Ultra High-Quality Portable Audio Amplification
• High-Fidelity Preamplifiers
• High-Fidelity Multimedia
• State-of-the-Art Phono Pre Amps
• High-Performance Professional Audio
• High-Fidelity Equalization and Crossover Networks
• High-Performance Line Drivers
• High-Performance Line Receivers
• High-Fidelity Active Filters
• DAC I–V Converter
• ADC Front-End Signal Conditioning

Key features

• Rail-to-Rail Input and Output
• Easily Drives 10kΩ Loads to Within 10mV of Each Power Supply Voltage
• Optimized for Superior Audio Signal Fidelity
• Output Short Circuit Protection
