TIDatasheet (PDF)

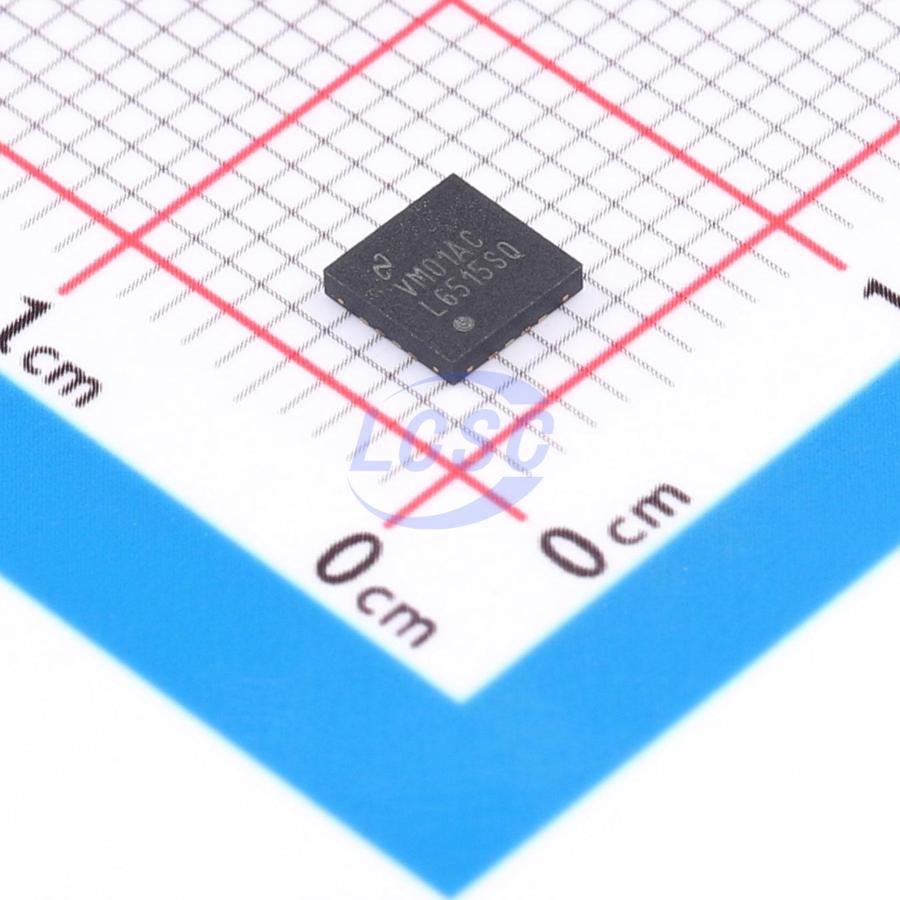

LMH6515SQ/NOPB
23.4dB 1 30mV VGA 85dB WQFN-16(4x4) Instrumentation, Op Amps, Buffer Amps RoHS
WQFN-16(4x4)ROHS3 CompliantDiscontinued
600 MHz, Digital Controlled, Variable Gain Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMH6515SQ/NOPB
- Store part #
- C2058731
- Package / case
- WQFN-16(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2058731
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,443.17 | ₹1,443.17 |
| 10+ | ₹1,224.05 | ₹12,240.50 |
| 30+ | ₹1,090.43 | ₹32,712.90 |
| 100+ | ₹978.38 | ₹97,838.00 |
1 × ₹1,443.17
₹1,443.17
excl. GST
₹1,702.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMH6515SQ/NOPB
₹1,443.17 for 1 + GST
Specifications
- output type
- Differential
- Gain
- 23.4dB
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 30mV
- Features
- Fully differential;Digital interface gain
- Current - Supply
- 107mA
- Amplifier Type
- VGA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Single Supply
- 4V~5.25V
- -3dB Bandwidth
- 600MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The LMH6515 is a high performance, digitally controlled variable gain amplifier (DVGA). It combines precision gain control with a low noise, ultra-linear, differential amplifier. Typically, the LMH6515 drives a high performance ADC in a broad range of mixed signal and digital communication applications such as mobile radio and cellular base stations where automatic gain control (AGC) is required to increase system dynamic range. When used in conjunction with a high speed ADC, system dynamic range can be extended by up to 32 dB.
Applications
- Cellular Base Stations
- IF Sampling Receivers
- Instrumentation
- Modems
- Imaging Differential Line Receiver
Key features
- Adjustable Gain with a 31 dB Range
- Precise 1 dB Gain Steps
- Parallel 5-bit Gain Control
- On Chip Register Stores Gain Setting
- Fully Differential Signal Path
- Single Ended to Differential Capable
- 200Ω Input Impedance
- Small Footprint (4mm×4mm) WQFN Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMH6514SQ/NOPB#C2873507TI · WQFN-16(4x4) | TI | WQFN-16(4x4) | 2 | ₹1,769.26 · 2 in stock | View |
