TIDatasheet (PDF)

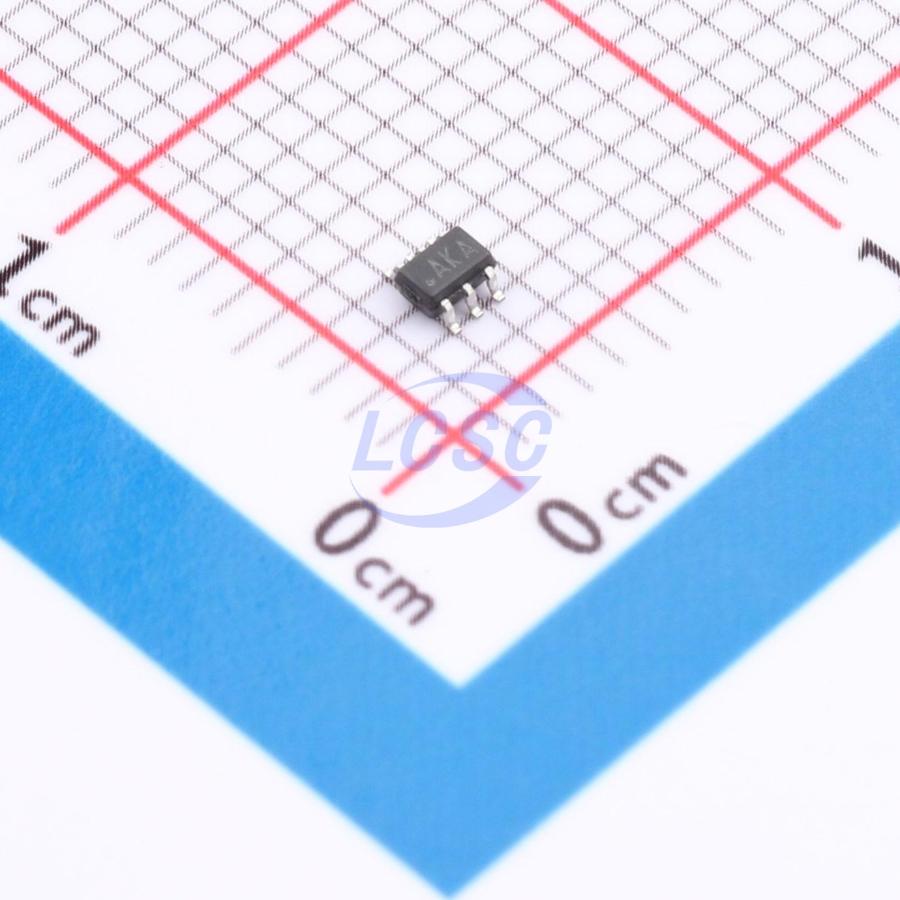

LMH6601QMG/NOPB
150mA 1 2.4mV 275V/us 68dB 50pA Rail-to-rail output SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-6ROHS3 CompliantActive
250-MHz, 2.4-V CMOS Operational Amplifier With Shutdown
- Manufacturer
- TI
- Manufacturer part #
- LMH6601QMG/NOPB
- Store part #
- C2873170
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C2873170
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹645.68 | ₹645.68 |
| 10+ | ₹568.28 | ₹5,682.80 |
| 30+ | ₹528.82 | ₹15,864.60 |
| 100+ | ₹476.13 | ₹47,613.00 |
| 500+ | ₹457.06 | ₹2,28,530.00 |
| 1,000+ | ₹449.03 | ₹4,49,030.00 |
1 × ₹645.68
₹645.68
excl. GST
₹761.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMH6601QMG/NOPB
₹645.68 for 1 + GST
Specifications
- Output Current
- 150mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2.4mV
- Slew Rate
- 275V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 68dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 10nV/√Hz@1MHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
The LMH6601 device is a low-voltage (2.4 V to 5.5 V), high-speed voltage feedback operational amplifier suitable for use in a variety of consumer and industrial applications. With a bandwidth of 125 MHz at a gain of +2 and ensured high-output current of 100 mA, the LMH6601 is an ideal choice for video line driver applications, including HDTV. Low-input bias current (50 pA maximum), rail-to-rail output, and low current noise allow the use of the LMH6601 in various industrial applications such as transimpedance amplifiers, active filters, or high-impedance buffers. The LMH6601 is an attractive solution for systems which require high performance at low supply voltages. The LMH6601 is available in a 6-pin SC70 package, and includes a micropower shutdown feature.
Applications
- Video Amplifiers
- Charge Amplifiers
- Set-Top Boxes
- Sample and Holds
- Transimpedance Amplifiers
- Line Drivers
- High-Impedance Buffers
- Automotive
Key features
- LMH6601-Q1 Qualified for Automotive Applications AEC-Q100 Grade 3
- -40°C to 85°C Ambient Operating Temperature Range
- 125 MHz -3 dB Small Signal Bandwidth
- 75 MHz -3 dB Large Signal Bandwidth
- 30 MHz Large Signal 0.1-dB Gain Flatness
- 260 V/μs Slew Rate
- 0.25%/0.25° Differential Gain and Differential Phase
- Rail-to-Rail Output
- 2.4-V to 5.5-V Single-Supply Operating Range
- 6-Pin SC70 Package
