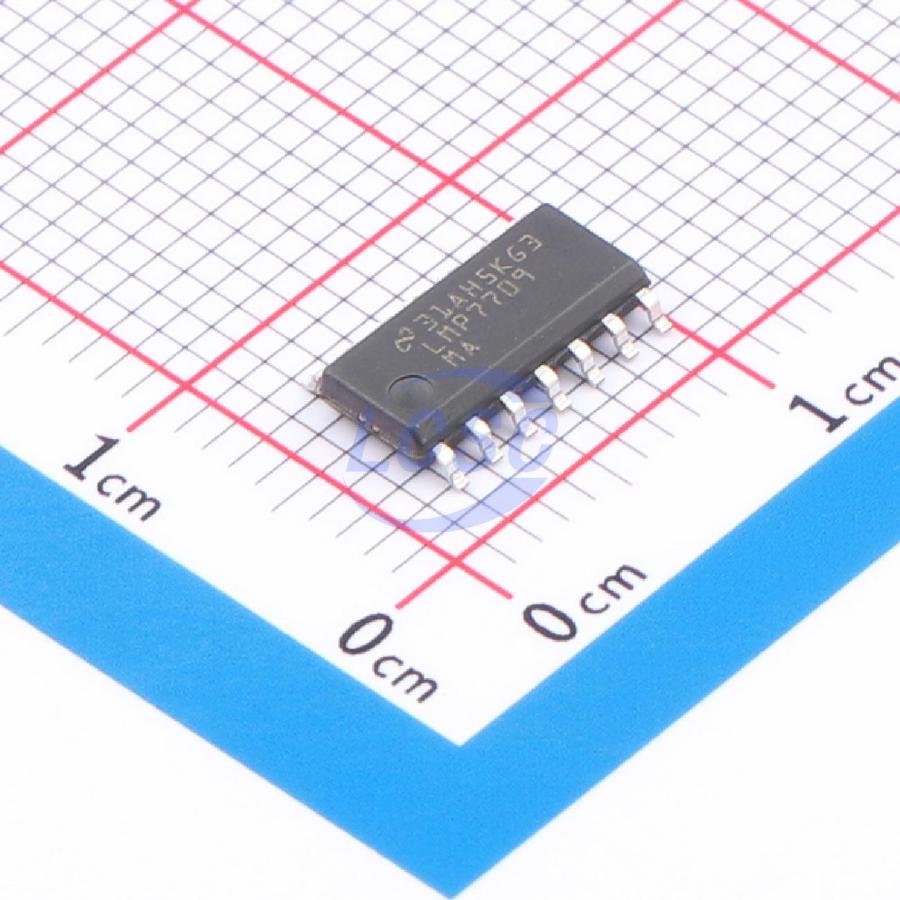

LMP7709MAX/NOPB

66mA 4 32uV 5.6V/us 130dB 0.2pA 2.9mA 14MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Precision, CMOS Input, RRIO, Wide Supply Range Decompensated Amplifiers

Manufacturer: TI
Manufacturer part #: LMP7709MAX/NOPB
Store part #: C2859649
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14 in stock

#C2859649

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹640.93	₹640.93
10+	₹544.24	₹5,442.40
30+	₹486.73	₹14,601.90
100+	₹428.60	₹42,860.00
500+	₹401.80	₹2,00,900.00
1,000+	₹389.64	₹3,89,640.00

Quantity (min 1)

1 × ₹640.93

₹640.93

excl. GST

₹756.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMP7709MAX/NOPB

₹640.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 66mA
Number of Channels: 4
Vos - Input Offset Voltage: 32uV
Slew Rate: 5.6V/us
Input Offset Current(Ios): 0.04pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 2.9mA
Gain Bandwidth Product: 14MHz
Features: Decompensated stable
Input Voltage Noise Density: 9nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

The LMP7707/LMP7708/LMP7709 devices are single, dual, and quad low offset voltage, rail-to-rail input and output precision amplifiers which each have a CMOS input stage and a wide supply voltage range. The LMP7707/LMP7708/LMP7709 are ideal for sensor interface and other instrumentation applications. These decompensated amplifiers are stable at a gain of 6 and higher. The ensured low offset voltage of less than ±200 μV along with the ensured low input bias current of less than ±1 pA make the LMP7707/LMP7708/LMP7709 ideal for precision applications. The LMP7707/LMP7708/LMP7709 are built utilizing VIP50 technology, which allows the combination of a CMOS input stage and a supply voltage range of 12V with rail-to-rail common mode voltage capability. The LMP7707/LMP7708/LMP7709 are the perfect choice in many applications where conventional CMOS parts cannot operate due to the voltage conditions. The unique design of the rail-to-rail input stage of each of the LMP7707/LMP7708/LMP7709 significantly reduces the CMRR glitch commonly associated with rail-to-rail input amplifiers. Both sides of the complimentary input stage have been trimmed, thereby reducing the difference between the NMOS and PMOS offsets. The output swings within 40 mV of either rail to maximize the signal dynamic range in applications requiring low supply voltage. The LMP7707 is offered in the space-saving 5-pin SOT-23 and 8-pin SOIC packages, the LMP7708 is offered in the 8-pin VSSOP and 8-pin SOIC packages, and the quad LMP7709 is offered in the 14-pin TSSOP and 14-pin SOIC packages. These small packages are ideal solutions for area constrained PC boards and portable electronics.
