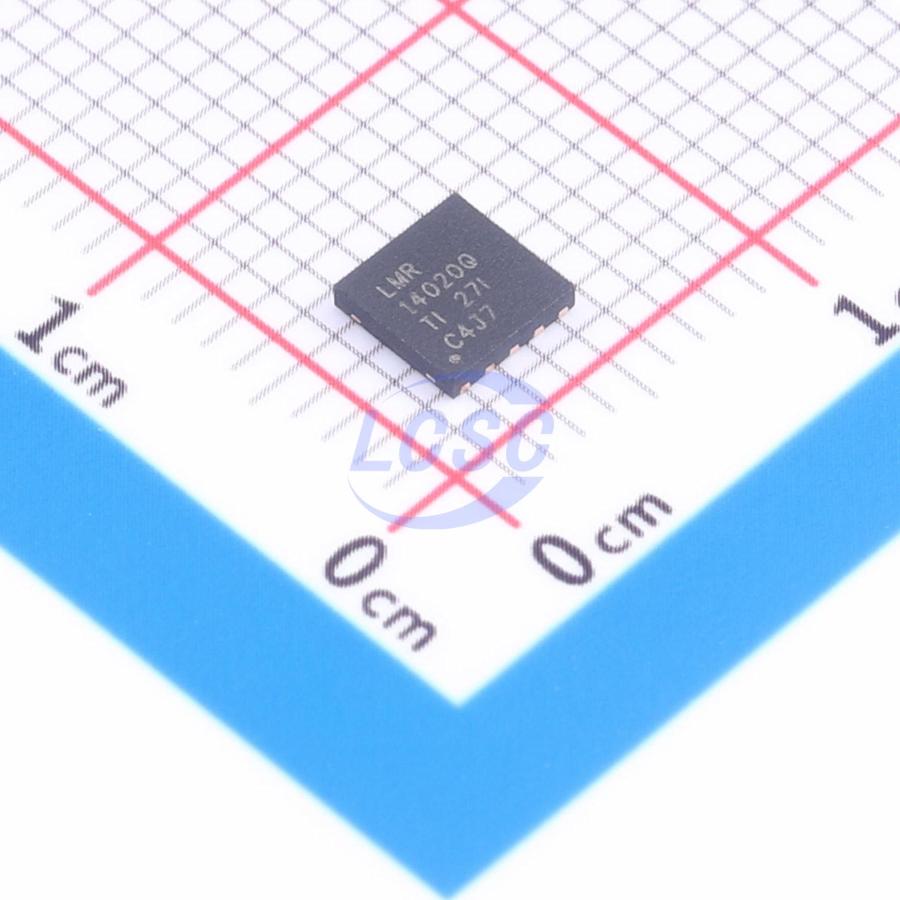

LMR14020QDPRTQ1

The LMR14020-Q1 is a 40V, 2A step-down regulator with an integrated high-side MOSFET. Its wide input voltage range of 4V to 40V makes it suitable for regulating power from unregulated supplies across applications ranging from industrial to automotive. An extended family of pin-to-pin compatible devices offers 3.5A and 5A current options. The regulator's 40µA quiescent current in sleep mode makes it ideal for battery-powered systems, while its ultra-low 1µA shutdown current further extends battery life. A wide adjustable switching frequency range allows optimization of efficiency or external component size. Internal loop compensation eliminates the tedious task of designing loop compensation components while minimizing the number of external components. A precision enable input simplifies regulator control and system power sequencing. The device also integrates multiple protection features: cycle-by-cycle current limiting, thermal sensing and thermal shutdown for excessive power dissipation, and output overvoltage protection. The LMR14020-Q1 is available in an 8-pin HSOIC or 10-pin WSON package with an exposed pad for low thermal resistance.

Applications

• Automotive battery regulation
• Industrial power supplies
• Telecom and data communication systems
• General-purpose wide VIN regulation

Key features

• Automotive electronics applications
• AEC-Q100 qualified with the following results:
• Device temperature grade 1: –40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level H1C
• Device CDM ESD classification level C4A
• Input voltage range: 4V to 40V
• 2A continuous output current
• 40µA ultra-low quiescent current
• 90mΩ high-side MOSFET
• Minimum on-time: 75ns
• Current mode control
• Adjustable switching frequency range: 200kHz to 2.5MHz
• Synchronization to external clock frequency
• Spread spectrum option for reduced EMI
• Internal compensation for ease of use
• High duty cycle operation support
• Precision enable pin
• Shutdown current: 1µA
• External soft-start
• Thermal protection, overvoltage protection, and short-circuit protection
