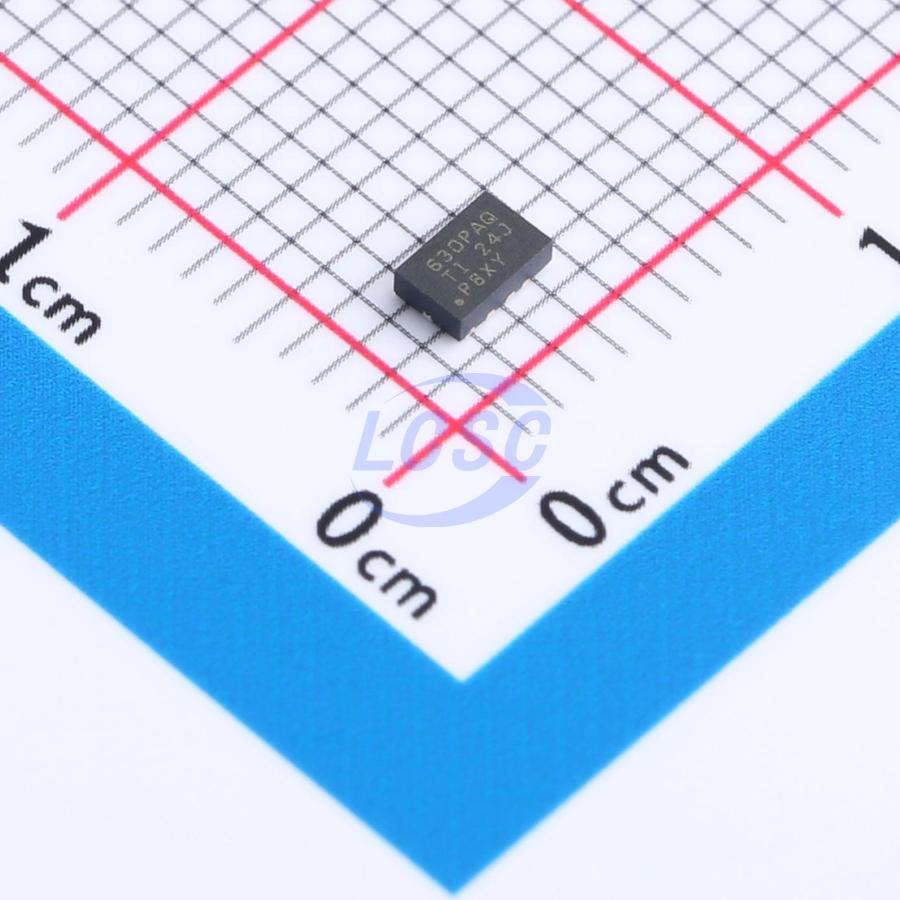

LMR33630APAQRNXRQ1

The LMR336x0AP-Q1 regulator is an automotive-grade, easy-to-use synchronous step-down DC/DC converter that delivers excellent efficiency for demanding applications. The LMR336x0AP-Q1 supports input voltages up to 36V and can drive load currents of up to 2A or 3A. The LMR336x0AP-Q1 provides excellent light-load efficiency and output accuracy in a compact solution size. Features such as a power-good flag and precision enable facilitate flexible, easy-to-use solutions across a wide range of applications. The LMR336x0AP-Q1 automatically folds back switching frequency under light-load conditions to improve efficiency. Integration eliminates most external components, and the pinout is designed for simplified PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limiting, and hiccup short-circuit protection. The LMR336x0AP-Q1 is available in a 12-pin 3mm×2mm VQFN package with wettable flanks.

Applications

• Infotainment systems and instrument clusters
• Telematics control units

Key features

• AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
• Functional Safety version available with documentation to support functional safety system design, dedicated to harsh automotive applications
• Input voltage range: 3.8V to 36V
• Output voltage range: 1V to 24V
• Output current: 2A, 3A
• 75mΩ/50mΩ RDS-ON power MOSFET
• Peak current mode control
• Minimum on-time as low as 68ns
• Frequency: 400kHz, 2.1MHz
• Integrated compensation network
• Low EMI and switching noise
• HotRod package with parallel input current path for high-efficiency power conversion at all loads
• Peak efficiency >95%
• Shutdown quiescent current as low as 5μA
• Operating quiescent current as low as 25μA
