LMR34215SC5QRNXRQ1

The LMR34215-Q1 regulator is an easy-to-use synchronous step-down DC/DC converter. The device features integrated high-side and low-side power MOSFETs, delivering output current over a wide input voltage range of 4.2V to 42V. The LMR34215-Q1 employs a peak current mode control scheme to provide excellent efficiency and output voltage accuracy. A precision enable pin supports direct connection to wide input voltages or precise control of device startup and shutdown, offering design flexibility. A power good flag with built-in filtering and delay provides a true indication of system status, eliminating the need for external supervisors.

Applications

• ADAS camera module
• Head-up display
• Body control module
• General-purpose wide input voltage power supply

Key features

• AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
• Functional Safety designed for automotive applications
• Junction temperature range: -40°C to +150°C
• 0.4V dropout at 1.5A load (typical)
• ±1.5% reference voltage tolerance
• 5V fixed output and adjustable output voltage options
• Pin-compatible with scalable power devices: LMR36015-Q1, LMR36006-Q1 (60V, 0.6A or 1.5A); LMR33630-Q1, LMR33620-Q1 (36V, 2A or 3A)
• 400kHz and 2.1MHz frequency options
• Reduced solution size and cost through integrated technology

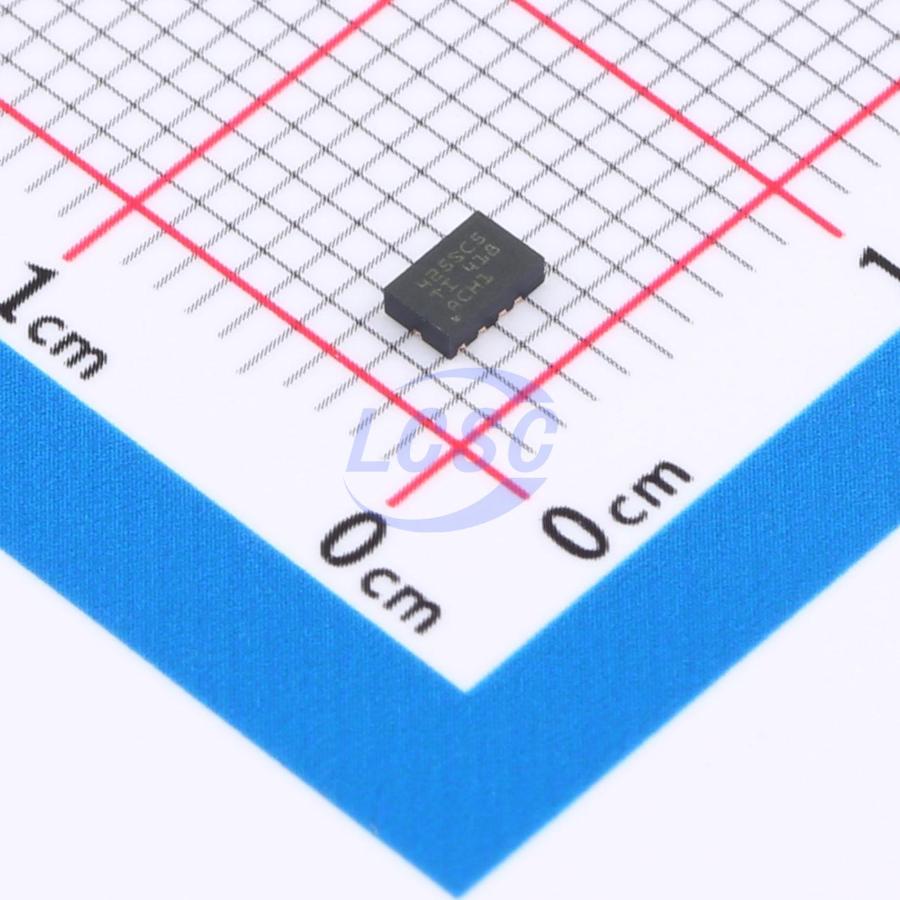

• Small 2mm×3mm VQFN package with wettable flanks
• Minimal external components
