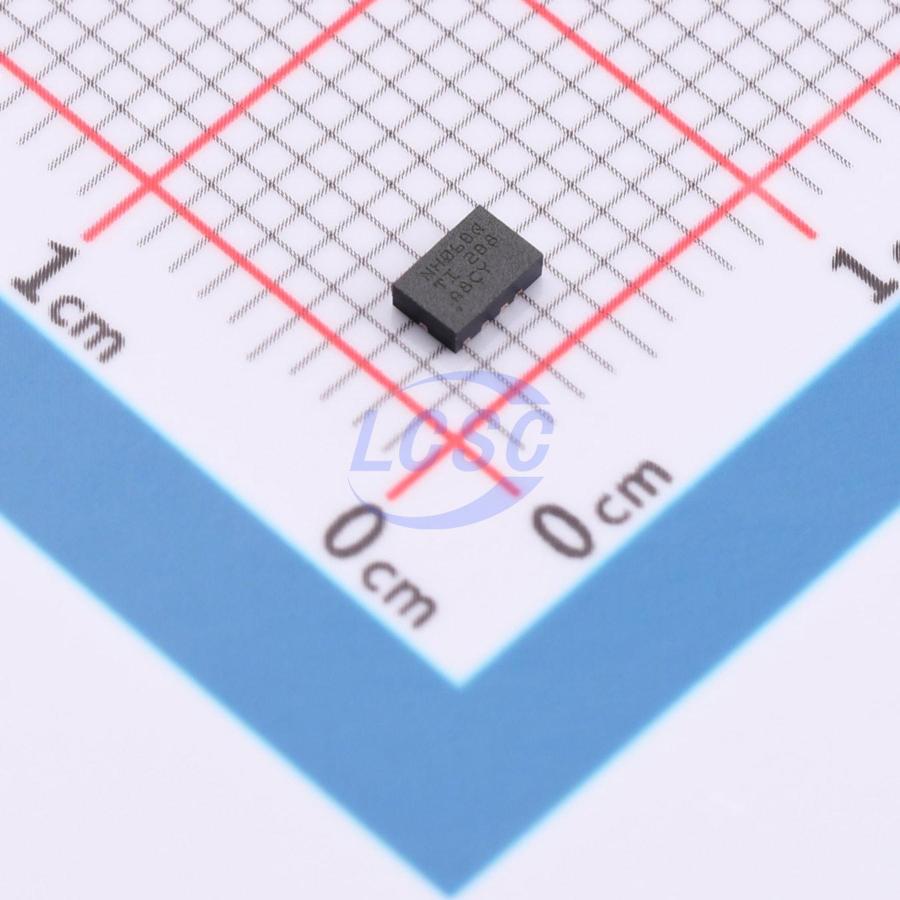

LMR36006BQRNXRQ1

Step-down type 1MHz Adjustable 600mA 1V~57V VQFN-12-HR(2x3) Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-12-HR(2x3)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: LMR36006BQRNXRQ1
Store part #: C20345528
Package / case: VQFN-12-HR(2x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C20345528

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹465.44	₹465.44
10+	₹453.34	₹4,533.40
30+	₹445.12	₹13,353.60
100+	₹436.91	₹43,691.00

Quantity (min 1)

1 × ₹465.44

₹465.44

excl. GST

₹549.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMR36006BQRNXRQ1

₹465.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 1MHz
Features: EMI optimization (spread spectrum);Frequency synchronization;Light load efficient mode;Built-in LDO regulator;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.2V~60V
Switch tube (built-in/external): Built-in
Output Current: 600mA
Output Voltage: 1V~57V
Quiescent Current: 26uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 3.66 g

Overview

LMR36506-Q1 is the industry's smallest 65V, 0.6A synchronous step-down DC/DC converter, housed in a 2mm×2mm HotRod package. This easy-to-use converter handles input voltage transients up to 70V, delivers excellent EMI performance, and supports fixed 3.3V, 5V, and other adjustable output voltages. The LMR36506-Q1 employs a peak current mode control architecture with internal compensation, maintaining stable operation with minimal output capacitance. Its wide input operating range helps sustain functionality during deep input voltage droops, making it ideal for automotive applications subject to severe cold-crank pulses. The PGOOD flag in the LMR36506-Q1 accurately indicates output voltage status without requiring an external monitor. Seamless transition between FPWM and PFM modes, combined with ultra-low standby quiescent current, enables higher system efficiency at light output loads. The MODE/SYNC pin variant facilitates synchronization of the LMR36506-Q1 to an external clock. By selecting an appropriate resistor, the RT pin variant of the LMR36506-Q1 can also be externally programmed to any desired switching frequency. The rich feature set of the LMR36506-Q1 is designed to simplify application design across a wide range of automotive end equipment.

Applications

Advanced Driver Assistance Systems (ADAS)
Body Electronics & Lighting
Infotainment & Instrument Cluster

Key features

AEC-Q100 qualified for automotive applications:
Device temperature grade 1: ambient temperature TA from -40°C to +125°C
Functional Safety capable
Documentation available to support functional safety system design
Efficiency >80% at 1mA
Quiescent current Iq of 4μA (switching) at 24VIN to 3.3VOUT (fixed output option)
Small solution size with low component cost
2mm×2mm HotRod package with solderable leads
Internal compensation
Designed for automotive applications:
Junction temperature range: -40°C to +150°C
Pseudo-random spread spectrum compatible with CISPR 25 EMI standards
Wide input voltage range: 3.0V (falling threshold) to 65V
Adjustable, 3.3V, and 5V fixed output voltage options
Synchronizable via MODE/SYNC pin variant
Frequency adjustable from 200kHz to 2.2MHz via RT pin variant
Pin-compatible with LMR36503-Q1 (65V, 300mA)
