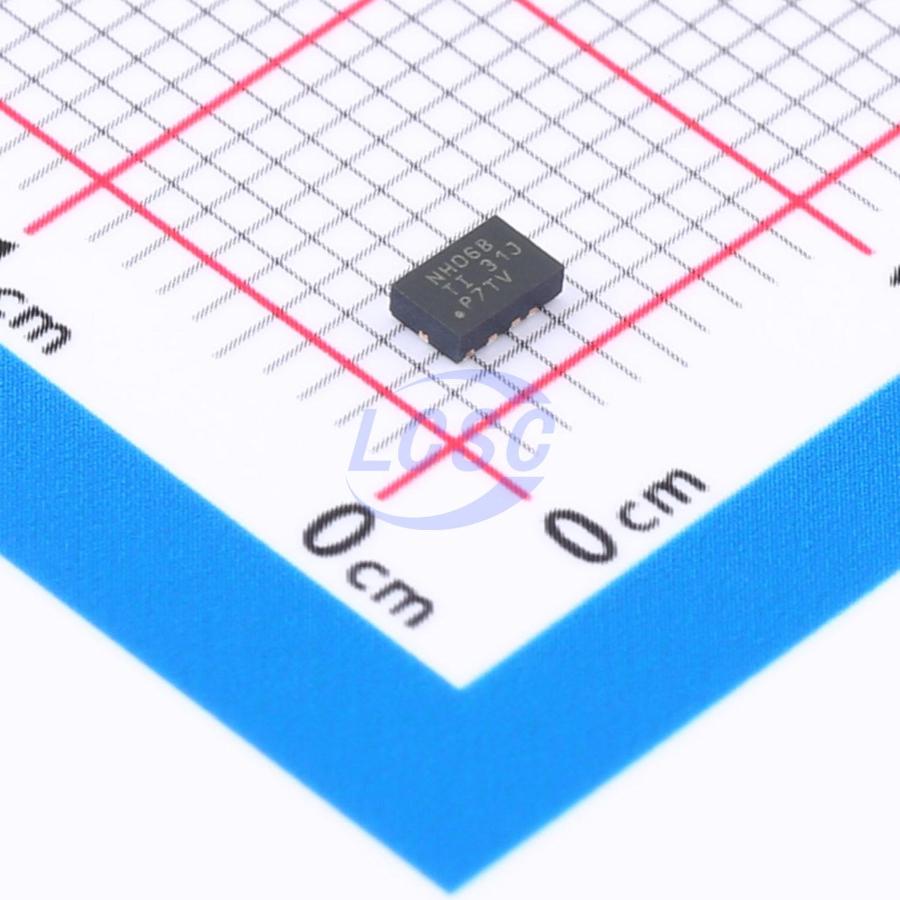

LMR36006BRNXR

The LMR36006 regulator is an easy-to-use synchronous step-down DC/DC converter. The device features integrated high-side and low-side power MOSFETs, delivering up to 0.6A of output current over a wide input voltage range of 4.2V to 60V. Tolerance up to 66V. This transient voltage tolerance reduces the design effort required to protect against overvoltage and meets the surge immunity requirements of IEC 61000-4-5. The LMR36006 uses a peak current mode control mechanism to provide optimal efficiency and output voltage accuracy. Precision enable supports direct connection to wide input voltages or precise control of device startup and shutdown, offering design flexibility. A power-good flag with built-in filtering and delay provides a true indication of system status, eliminating the need for external monitors. The LMR36006 uses a HotRod package to achieve low noise, higher efficiency, and minimal package-to-die ratio. The device requires minimal external components, with a pin layout designed for simple PCB routing. The LMR36006's small solution size and feature set are designed to simplify implementation across a variety of end equipment, including applications with stringent space requirements such as ultra-compact field transmitters and vision sensors.

Applications

• Field transmitters and sensors
• PLC modules
• Thermostats
• Video surveillance
• HVAC systems
• AC and servo drives
• Rotary encoders
• Industrial transportation
• Asset tracking

Key features

• Designed for reliable and durable applications
• Input transient protection up to 66V
• Junction temperature range: -40°C to +150°C
• Protection features: thermal shutdown, input undervoltage lockout, cycle-by-cycle current limiting, and hiccup short-circuit protection
• 0.2V dropout voltage at 0.6A load (typical)
• Scalable industrial power supply applications
• Pin-compatible with: LMR36015 (60V, 1.5A), LMR33620/LMR33630 (36V, 2A or 3A)
• 1MHz and 2.1MHz frequency options
• Low power dissipation across the full load range
• 87% efficiency at 1MHz (24VIN, 5VOUT, 0.6A)
• 92% efficiency at 1MHz (12VIN, 5VOUT, 0.6A)
• Improved light-load efficiency in PFM mode
• Quiescent current as low as 26μA
• Compact 2mm×3mm HotRod package solution with minimal external components
• LMR36006-Q1 and LMR36015-Q1 available in 400kHz and 2.1MHz frequencies, with adjustable output and fixed 3.3VOUT
• Optimized for ultra-low EMI requirements
• Compliant with CISPR25 Class 5
• HotRod package minimizes switching node ringing
• Parallel input paths minimize parasitic inductance
• Spread-spectrum frequency reduces peak radiated emissions
• Create custom designs using LMR36006 with WEBENCH Power Designer
