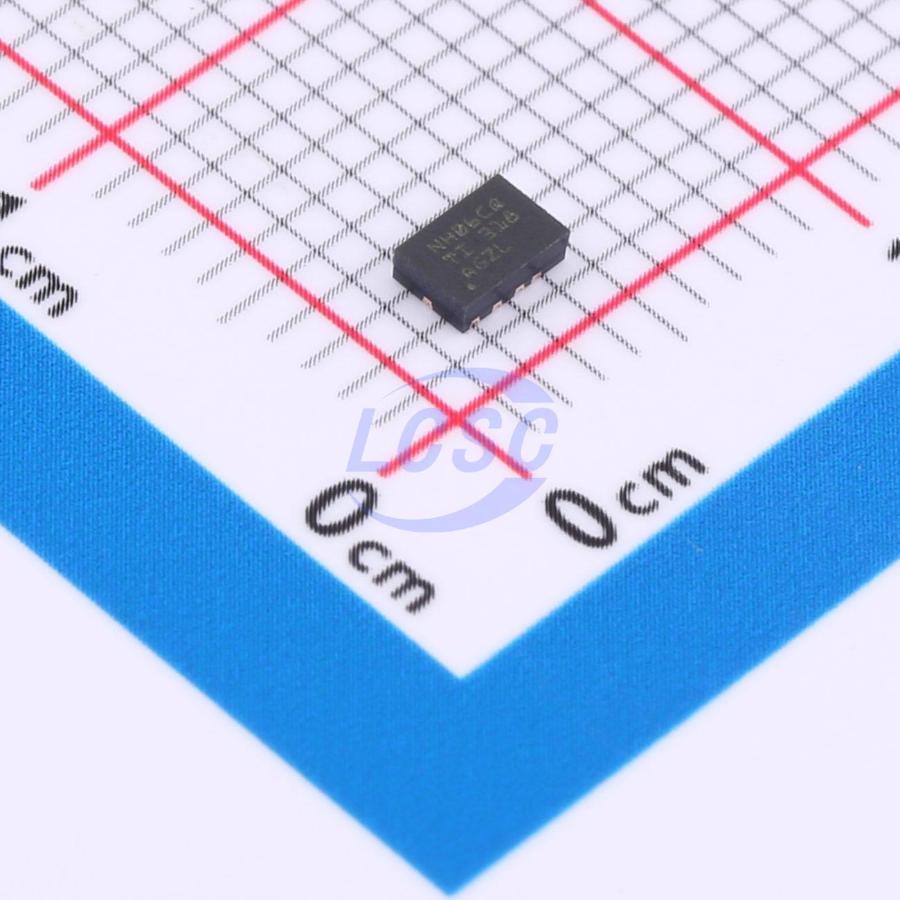

LMR36006FSCQRNXRQ1

The LMR36006-Q1 regulator is an easy-to-use synchronous step-down DC/DC converter. The device features integrated high-side and low-side power MOSFETs, capable of delivering up to 0.6A of output current over a wide input voltage range of 4.2V to 60V. Tolerant up to 66V. The LMR36006-Q1 employs peak current mode control to provide optimal efficiency and output voltage accuracy. Using advanced high-speed circuitry, the LMR36006-Q1 achieves regulation from a 20V input to a 5V output at a fixed frequency of 2.1MHz. Precision enable supports direct connection to a wide input voltage or precise control of device startup and shutdown, providing design flexibility. A power-good flag with built-in filtering and delay provides a true indication of system status, eliminating the need for an external supervisor. The LMR36006-Q1 is available in a HotRod package, achieving low EMI, higher efficiency, and an ultra-small package-to-die ratio. The device requires minimal external components and features a pin assignment that simplifies PCB layout. The LMR36006-Q1's compact solution size and versatile feature set are designed to simplify implementation across a wide range of end equipment.

Applications

• ADAS camera module
• Body control module

Key features

• AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
• Functional Safety-capable with documentation to support functional safety system design, purpose-built for automotive applications
• Junction temperature range: -40°C to +150°C
• Protection features: thermal shutdown, input UVLO, cycle-by-cycle current limiting, and hiccup short-circuit protection
• 0.2V dropout voltage (typical) at 0.6A load
• ±1.5% reference voltage tolerance
• 3.3V fixed output voltage option available
• Scalable power supply compatibility — pin-compatible with LMR36015-Q1 (60V, 1.5A) and LMR33620/30-Q1 (36V, 2A or 3A)
• 400kHz and 2.1MHz frequency options with integrated technology for reduced solution size and cost
• Compact 2mm×3mm VQFN package (with wettable flanks), minimal external components
• Low power dissipation across full load range
• 94% efficiency at 400kHz (12VIN, 5VOUT, 0.6A)
• Enhanced light-load efficiency in PFM mode
• Quiescent current as low as 26μA
• Optimized for ultra-low EMI requirements
• CISPR25 Class 5 compliant
• HotRod package minimizes switching node ringing
• Parallel input path minimizes parasitic inductance
• Spread spectrum reduces peak emissions
• Create custom designs using LMR36006-Q1 with WEBENCH PowerDesigner
