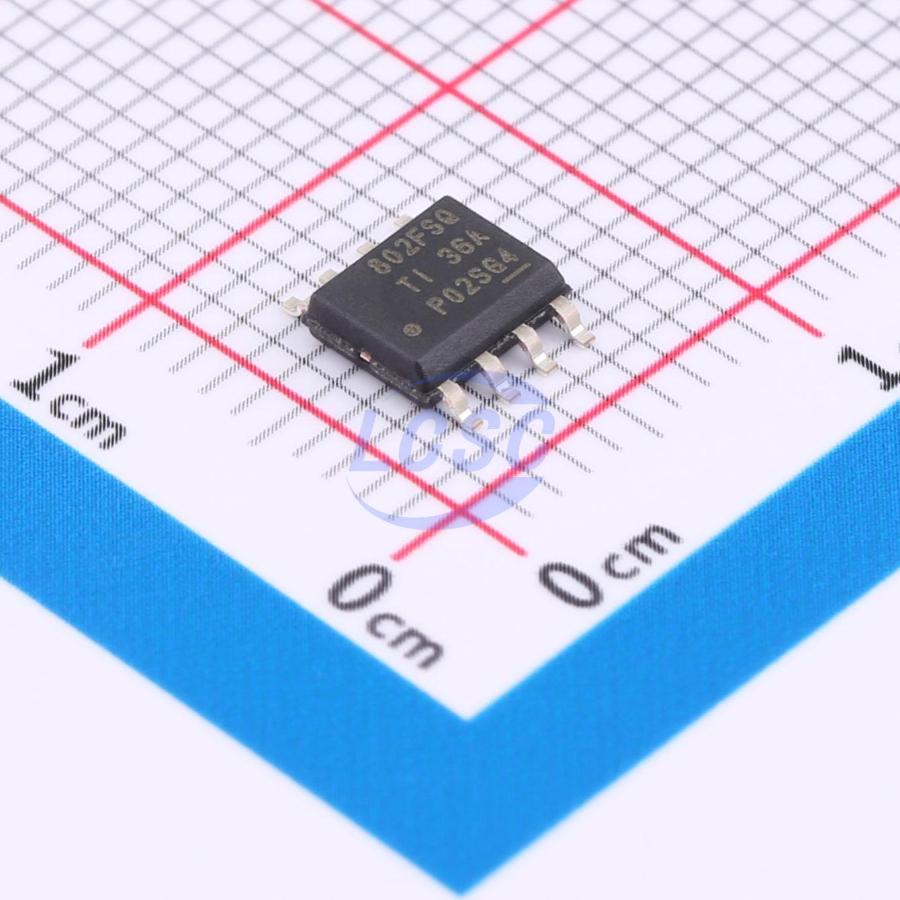

LMR38020FSQDDARQ1

Buck Switching Regulator IC Adjustable 1V~75V 1 Output 2A SOP-8

SOP-8ROHS3 CompliantActive

4.2V to 80V, 2A Automotive Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: LMR38020FSQDDARQ1
Store part #: C20345530
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C20345530

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹584.89	₹584.89
10+	₹500.90	₹5,009.00
30+	₹450.85	₹13,525.50
100+	₹400.37	₹40,037.00
500+	₹377.09	₹1,88,545.00
1,000+	₹366.64	₹3,66,640.00

Quantity (min 1)

1 × ₹584.89

₹584.89

excl. GST

₹690.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMR38020FSQDDARQ1

₹584.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 200kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.2V~80V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 1V~75V
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The LMR38020-Q1 synchronous buck converter is designed to regulate over a wide input voltage range, minimizing the need for external surge suppression components. The LMR38020-Q1 operates during input voltage dips as low as 4.2V, at nearly 100% duty cycle if needed, making the device an excellent choice for 48-V battery automotive applications and MHEV/EV systems. The LMR38020-Q1 uses precision enable to provide flexibility by enabling a direct connection to the wide input voltage or precise control over device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status, eliminating the need for an external supervisor. The device incorporates pseudorandom spread spectrum for minimal EMI and switching frequency can be configured between 200kHz and 2.2MHz to avoid noise sensitive frequency bands. In addition, the frequency can be selected for improved efficiency at low operating frequency or smaller design size at high operating frequency. The device has built-in protection features such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown in case of excessive power dissipation. The LMR38020-Q1 is qualified to automotive AEC-Q100 grade 1 and is available in an 8-pin HSOIC PowerPAD integrated circuit package.

Applications

Automotive Inverter and motor control
Automotive DC/DC converters
Automotive battery management system
Automotive 48V mild hybrid ECU bias supplies

Key features

AEC-Q100 qualified for automotive applications – Temperature grade 1: -40°C to +125°C, TA
Functional Safety-Capable Documentation available to aid functional safety system design
Configured for rugged automotive applications
4.2V to 80V input voltage range
2A continuous output current
Ultra-low 40μA operating quiescent current
>1.5mm distance between VIN and GND pin
200kHz to 2.2MHz adjustable switching frequency
Frequency synchronization to external clock
Spread spectrum for reduced EMI
97% maximum duty cycle
Support start-up with prebiased output
±1.0% tolerance voltage reference at room temperature
Precision enable
Easy to use device with integrated compensation network enabling low BOM count
Integrated synchronous rectification
8-pin HSOIC with PowerPAD integrated circuit package
PFM and forced PWM (FPWM) options
Available in 1A, LMR38010-Q1
