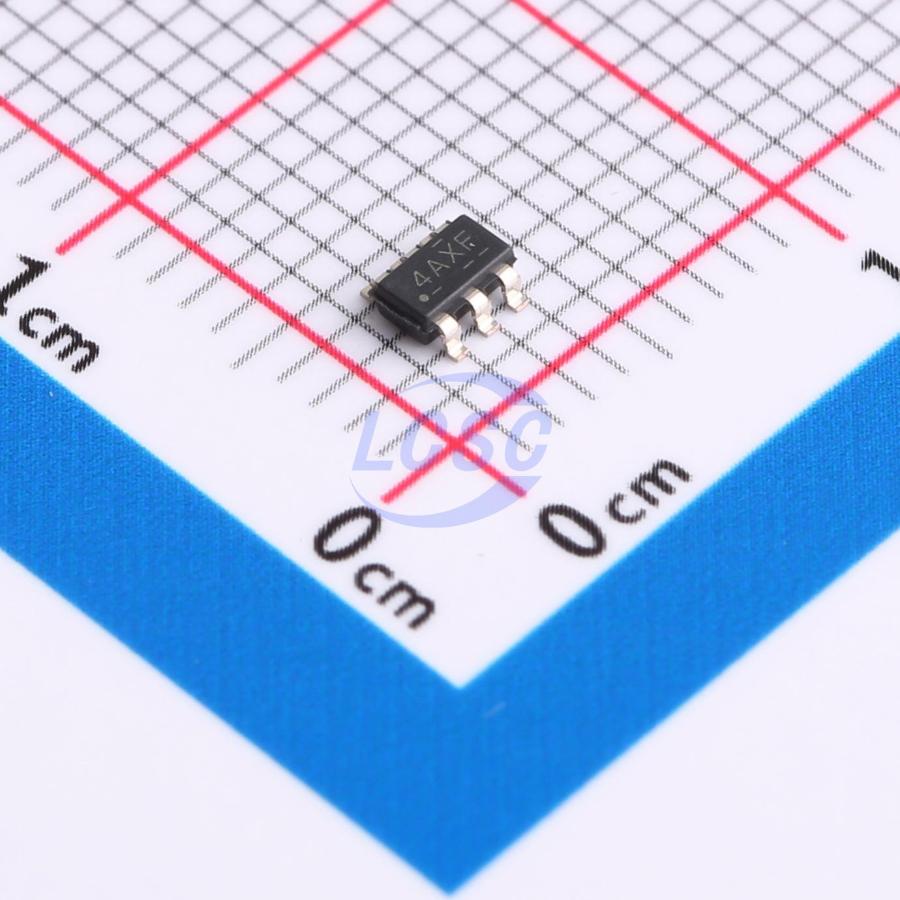

LMR50410XFDBVR

LMR50410 is an easy-to-use wide input voltage synchronous buck converter capable of driving load currents up to 1A. The device features a wide input range of 4V to 36V, making it suitable for a variety of industrial applications requiring power regulation from unregulated sources. The LMR50410 operates at a switching frequency of 700kHz, enabling the use of relatively small inductors for an optimized solution size. It is available in a PFM version for high efficiency at light loads and an FPWM version for constant frequency operation with low output voltage ripple across the full load range. Soft-start and compensation circuitry are implemented internally, minimizing the number of external components required. The device features built-in protection functions, including cycle-by-cycle current limiting, hiccup mode short-circuit protection, and thermal shutdown under excessive power dissipation conditions. The LMR50410 is available in a SOT-23-6 package.

Applications

• Large Appliances
• PLC, DCS, and PAC
• Smart Meters
• Universal Wide Input Voltage Power Supplies

Key features

• Functional Safety documentation provided to support functional safety system design
• Designed for harsh industrial applications
• Input voltage range: 4V to 36V
• 1A continuous output current
• Minimum on-time: 60ns
• 700kHz fixed switching frequency
• Junction temperature range: -40°C to 150°C
• 98% maximum duty cycle
• Monotonic startup with pre-biased output
• Internal short-circuit protection with hiccup mode
• ±1% tolerance voltage reference
• Precision enable pin
• Compact and easy-to-use solution
• Integrated synchronous rectification
• Built-in compensation for ease of use
• SOT-23-6 package
• Pin-to-pin compatible with LMR14010A and TPS560430
• Multiple options in pin-compatible packages
• PFM and forced PWM (FPWM) options
• Create custom designs using LMR50410 with WEBENCH Power Designer
