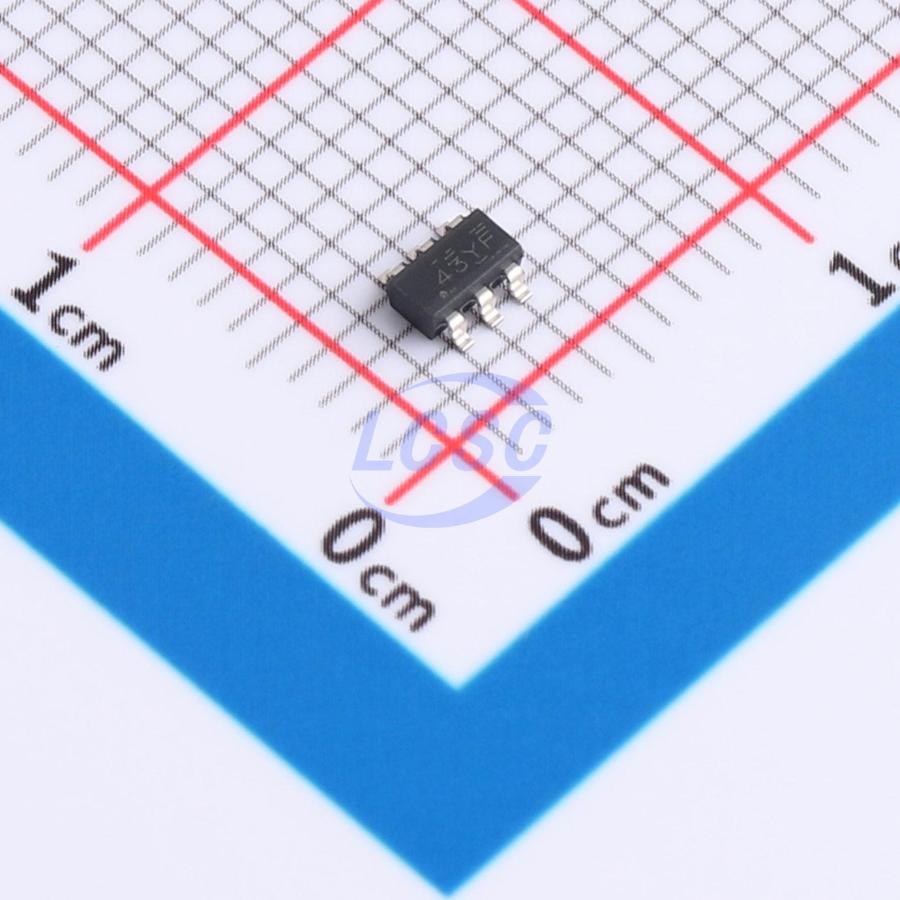

LMR51403YFDBVR

The LMR51403 is a simple, easy-to-use wide-VIN synchronous buck converter capable of driving load currents up to 300mA. The device features a wide 4V to 42V input range, making it suitable for a variety of industrial applications requiring power regulation from unregulated sources. The LMR51403 operates at switching frequencies of 400kHz and 1.1MHz, enabling the use of smaller inductors to reduce design footprint. The LMR51403 offers pulse frequency modulation (PFM version) for high efficiency at light loads and forced pulse-width modulation (FPWM version) for constant-frequency operation with low output voltage ripple across the full load range. Soft-start and compensation circuitry are implemented internally to minimize the number of external components required. The device incorporates built-in protection features including cycle-by-cycle current limiting, discontinuous mode short-circuit protection, and thermal shutdown under excessive power dissipation conditions.

Applications

• Large Appliances
• PLC, DCS and PAC
• Smart Meters
• Power Transmission

Key features

• Functional Safety compliant, with documentation available for functional safety system design
• Designed for harsh industrial applications
• Input voltage range: 4V to 42V
• Input transient protection up to 50V
• 300mA continuous output current
• 80ns minimum on-time
• Fixed 400kHz and 1.1MHz switching frequencies
• Junction temperature range: -40°C to 150°C
• 96% maximum duty cycle
• Monotonic startup with pre-biased output
• Discontinuous mode short-circuit protection
• Precision enable pin
• ±1.5% tolerance voltage reference
• Compact design, easy to use
• Integrated synchronous rectification
• Built-in compensation for ease of use
• SOT-23 package
• Multiple options in pin-to-pin compatible packages
• PFM and forced PWM (FPWM) options
• Pin-to-pin compatible with LMR51610, LMR51406, LMR16006, LV2862, LMR50410, TPS560430, and LMR54410
• Create custom designs using LMR51403 with WEBENCH Power Designer
