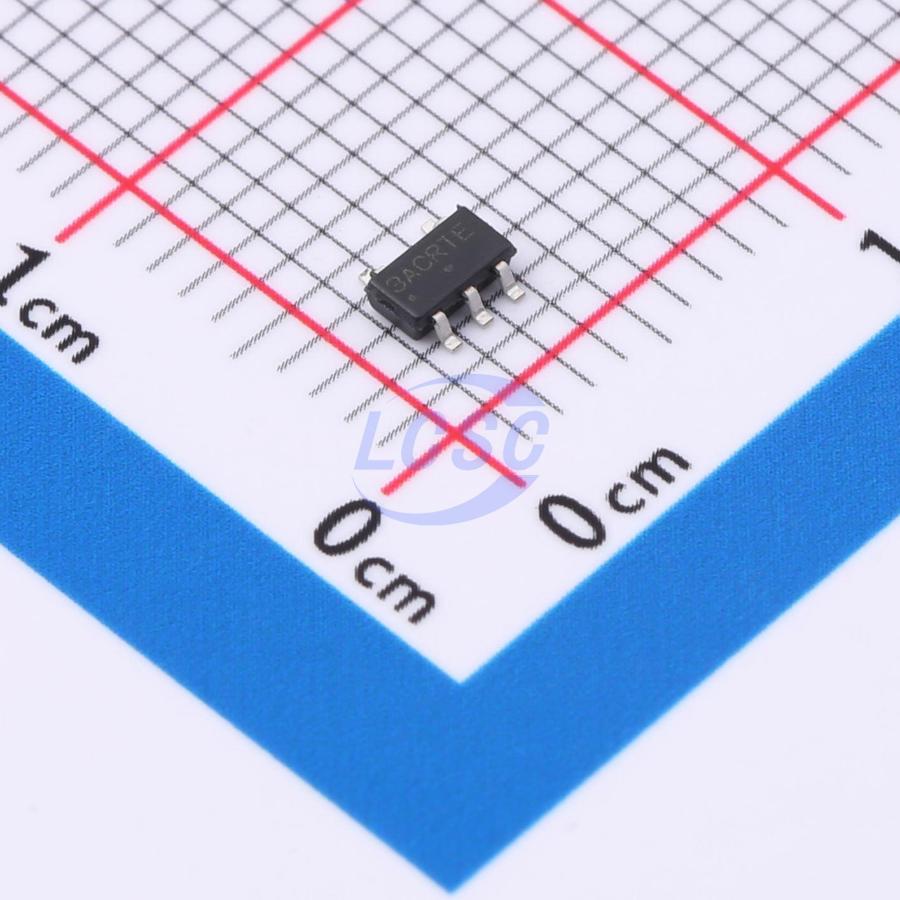

LMV321SN3T1G

The LMV321, LMV358, and LMV324 are CMOS single, dual, and quad low voltage operational amplifiers with rail−to−rail output swing. These amplifiers are a cost−effective solution for applications where low power consumption and space saving packages are critical. Rail−to−Rail operation provides improved signal−to−noise preformance. Ultra low quiescent current makes this series of amplifiers ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The ultra small packages allow for placement on the PCB in close proximity to the signal source thereby reducing noise pickup.

Applications

• Notebook Computers and PDA’s
• Portable Battery−Operated Instruments
• Active Filters

Key features

• Operation from 2.7 V to 5.0 V Single−Sided Power Supply
• LMV321 Single Available in Ultra Small 5 Pin SC70 Package
• No Output Crossover Distortion
• Industrial temperature Range: -40°C to +85°C
• Rail−to−Rail Output
• Low Quiescent Current: LMV358 Dual − 220 μA, Max per Channel
• No Output Phase−Reversal from Overdriven Input
• These are Pb−Free Devices
