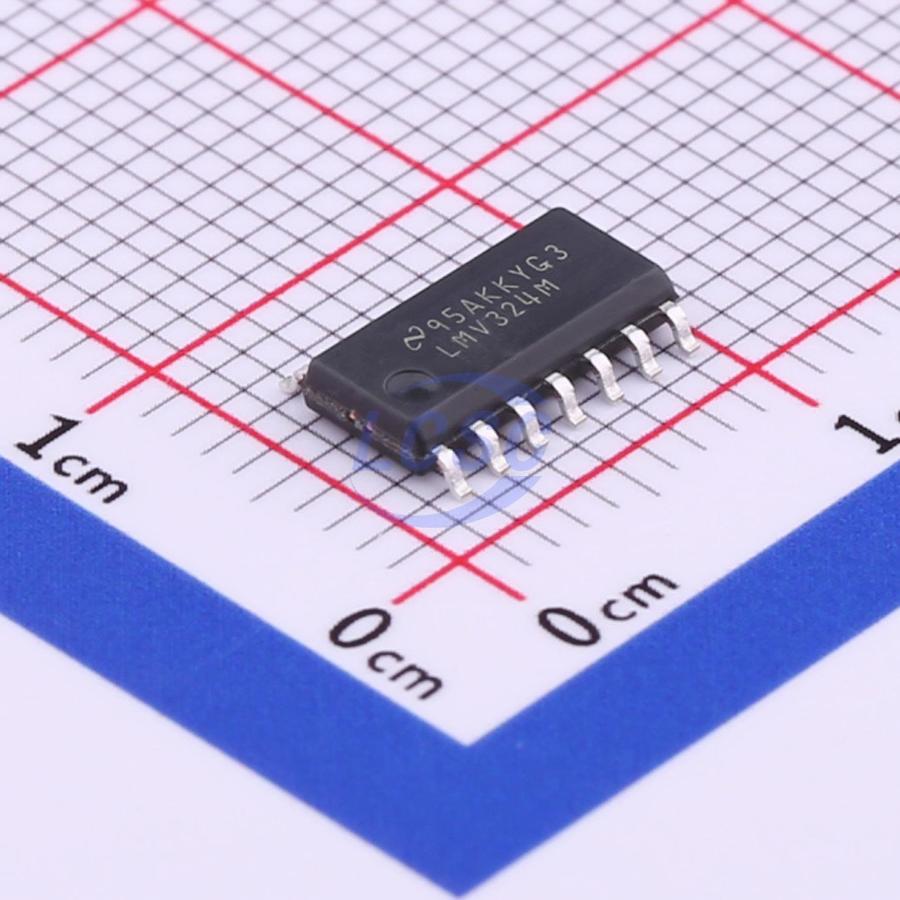

LMV324MX/NOPB

The LMV358-N and LMV324-N are low-voltage (2.7V to 5.5V) versions of the dual and quad commercial operational amplifiers LM358 and LM324 (5V to 30V). The LMV321-N is the single-channel version. The LMV321-N, LMV358-N, and LMV324-N are highly cost-effective solutions for applications where low operating voltage, space efficiency, and low cost are important considerations. These devices offer specifications that meet or exceed those of the common LM358 and LM324. The LMV321-N, LMV358-N, and LMV324-N feature rail-to-rail output swing capability, and the input common-mode voltage range includes ground. All of these devices have an excellent speed-to-power ratio, capable of achieving a 1MHz bandwidth and a 1V/μs slew rate with a low supply current.

Applications

• Active filter
• General-purpose low-voltage applications
• General-purpose portable devices

Key features

• Automotive-grade AEC-Q100 Grade 1 and Grade 3 versions available
• Reliable performance at 2.7V and 5V
• No crossover distortion
• Industrial temperature range: -40°C to +125°C
• Gain bandwidth product: 1MHz
• Low supply current
• LMV321-N 130μA
• LMV358-N 210μA
• LMV324-N 410μA
• Rail-to-rail output swing at 10kΩ: V⁺ - 10mV to V⁻ + 65mV
• VCM range: -0.2V to V⁺ - 0.8V
• LMV321-N in space-saving 5-pin SC70 package, approximately half the size of a 5-pin SOT23 package
• Small form factor packages save PCB space, enabling compact portable electronic device designs
• Allows designers to place devices closer to signal sources, reducing noise pickup and enhancing signal integrity
• Fabricated using advanced sub-micron silicon-gate BiCMOS process
• Bipolar input and output stages for improved noise immunity and output current drive
