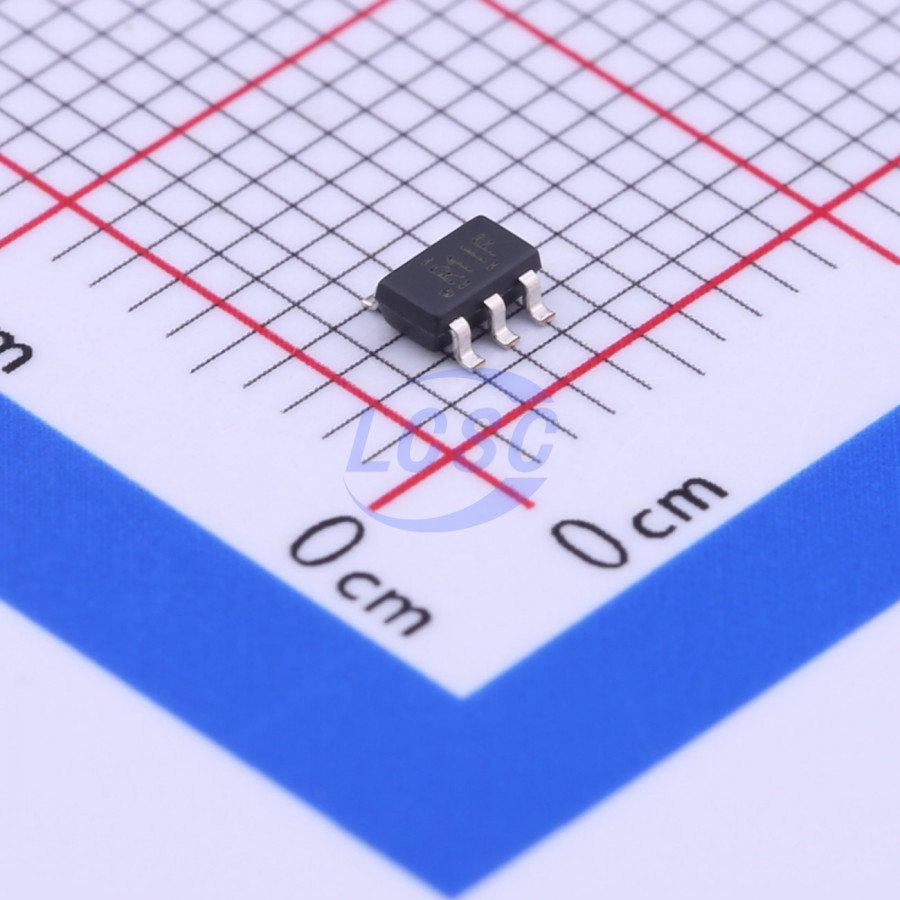

LMV331IDBVR
1 60uA 7mV Rail-to-rail input SOT-23-5 Comparators RoHS
General-purpose Low-voltage Comparators
- Manufacturer
- TI
- Manufacturer part #
- LMV331IDBVR
- Store part #
- C34731
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,36,025 in stock
#C34731
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.47 | ₹82.35 |
| 50+ | ₹13.15 | ₹657.50 |
| 150+ | ₹11.43 | ₹1,714.50 |
| 500+ | ₹10.03 | ₹5,015.00 |
| 3,000+ | ₹9.53 | ₹28,590.00 |
| 6,000+ | ₹9.19 | ₹55,140.00 |
5 × ₹16.47
₹82.35
excl. GST
₹97.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV331IDBVR
₹82.35 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 600ns
- Quiescent Current(Iq)
- 60uA
- Vos - Input Offset Voltage
- 7mV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The LMV393 and LMV339 devices are low-voltage (2.7 V to 5.5 V) versions of the dual and quad comparators, LM393 and LM339, which operate from 5 V to 30 V. The LMV331 is the single-comparator version. The LMV331, LMV339, and LMV393 are cost-effective solutions for applications where low-voltage operation, low power, and space saving are the primary specifications in circuit design for portable consumer products. These devices offer specifications that meet or exceed the familiar LM339 and LM393 devices at a fraction of the supply current.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment Test and Measurement
Key features
- 2.7-V and 5-V Performance
- Low Supply Current: LMV331 130 μA Typ, LMV393 210 μA Typ, LMV339 410 μA Typ
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 200 mv Typical
- Open-Collector Output for Maximum Flexibility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT331VRTZ#C2834469HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 3,960 | ₹23.88 · 3,960 in stock | View |
 | TPV331S5#C7419970TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,725 | ₹30.60 · 3,725 in stock | View |
 | RS331XF#C783423RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | On request | ₹20.60 · 0 in stock | View |
