TIDatasheet (PDF)

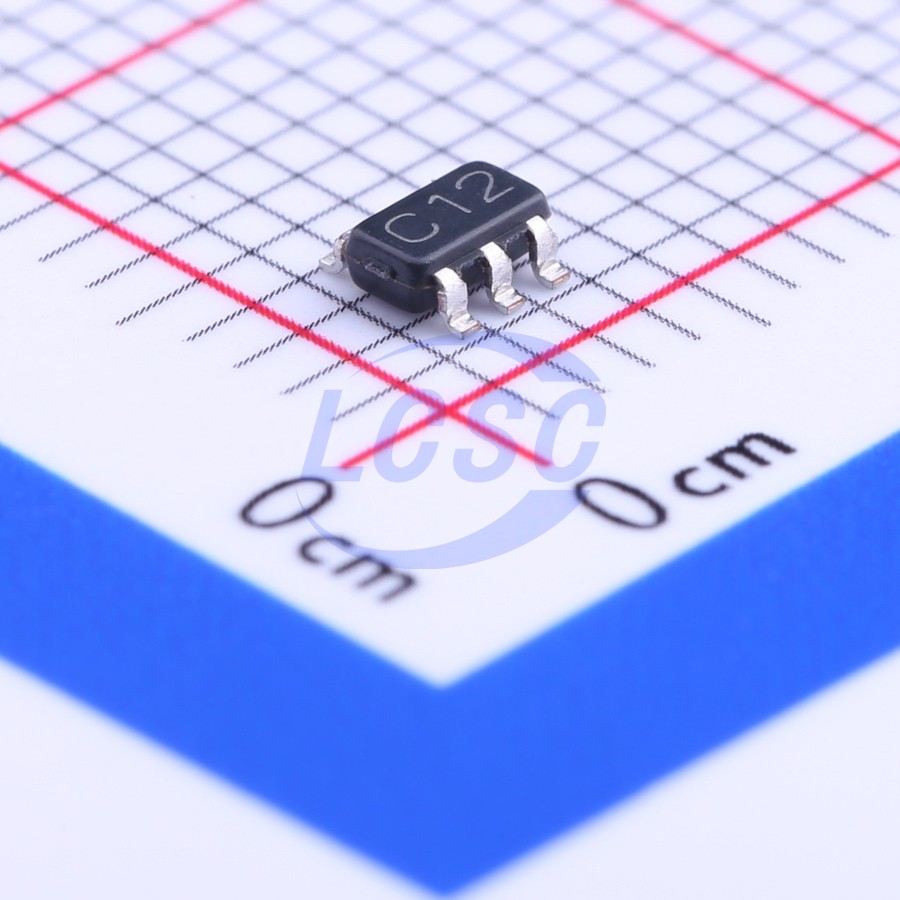

LMV331M5/NOPB
1 60uA 1.7mV SOT-23-5 Comparators RoHS
SOT-23-5ROHS CompliantActive
General-Purpose,Low-Voltage,TinyPack Comparators
- Manufacturer
- TI
- Manufacturer part #
- LMV331M5/NOPB
- Store part #
- C131917
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,406 in stock
#C131917
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.01 | ₹154.01 |
| 10+ | ₹125.95 | ₹1,259.50 |
| 30+ | ₹111.82 | ₹3,354.60 |
| 100+ | ₹97.89 | ₹9,789.00 |
| 500+ | ₹79.18 | ₹39,590.00 |
| 1,000+ | ₹74.83 | ₹74,830.00 |
1 × ₹154.01
₹154.01
excl. GST
₹181.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMV331M5/NOPB
₹154.01 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- CMOS;TTL
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 10nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 200ns
- Quiescent Current(Iq)
- 60uA
- Vos - Input Offset Voltage
- 1.7mV
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LMV393-N and LMV339-N are low-voltage (2.7 to 5 V) versions of the dual and quad comparators, LM393/339, which are specified at 5 to 30 V. The LMV331-N is the single version, which is available in space-saving, 5-pin SC70 and 5-pin SOT23 packages. The 5-pin SC70 is approximately half the size of the 5-pin SOT23.
Applications
- Mobile Communications
- Notebooks and PDAs
- Battery-Powered Electronics
- General-Purpose Portable Devices
- General-Purpose, Low-Voltage Applications
Key features
- Ensured 2.7-V and 5-V Performance
- Industrial Temperature Range -40°C to 85°C
- Low Supply Current 60 μA/Channel
- Input Common Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 200 mV
- Propagation Delay 200 ns
- Space-Saving 5-Pin SC70 and 5-Pin SOT23 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV331M5X/NOPB#C253067TI · SOT-23-5 | TI | SOT-23-5 | 3,881 | ₹67.46 · 3,881 in stock | View |
 | HT331VRTZ#C2834469HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 3,960 | ₹23.88 · 3,960 in stock | View |
 | LMV331M5X#C7419965TECH PUBLIC · SOT23-5 | TECH PUBLIC | SOT23-5 | 9,450 | ₹25.61 · 9,450 in stock | View |
