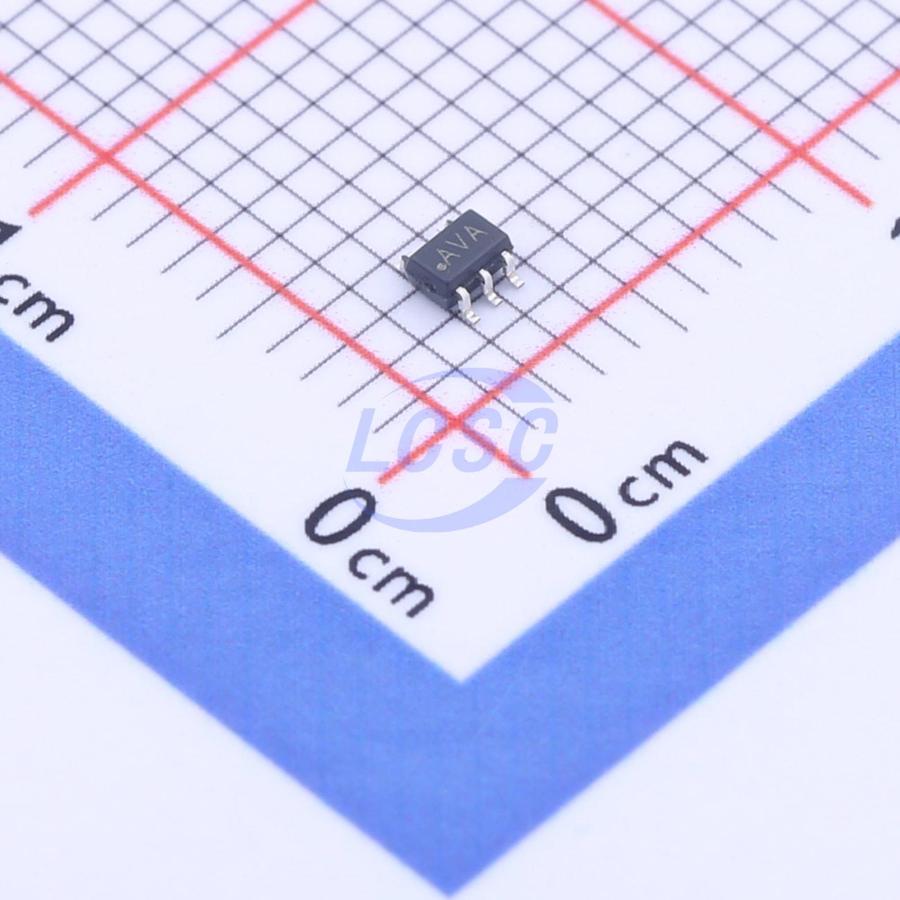

LMV611MGX/NOPB

The LMV61x devices are single, dual, and quad low-voltage, low-power op amps designed for low-voltage, general-purpose applications. Key product features include rail-to-rail input/output, a low supply voltage of 1.8V, and a wide temperature range. The LMV61x input common-mode extends 200mV beyond the supply rails, provides rail-to-rail output swing with no load, and delivers output voltage within 30mV of the rails when powered from a 1.8V supply with a 2kΩ load. With a quiescent current of 100μA (typical), the LMV61x achieves a gain-bandwidth product of 1.4MHz. The industrial-enhanced temperature range of -40°C to 125°C enables the LMV61x to operate across a variety of extended environments. The LMV611 is available in a miniature 5-pin SC70 package, the LMV612 in space-saving 8-pin VSSOP and SOIC packages, and the LMV614 in 14-pin TSSOP and SOIC packages. These small-package amplifiers are ideal for applications requiring minimum PCB size, including portable and battery-powered electronics where PCB space is constrained.

Applications

• Consumer communications products
• Consumer computing products
• Personal Digital Assistants (PDA)
• Pre-amplifiers
• Portable or battery-powered electronic equipment
• Power current monitoring
• Battery monitoring

Key features

• Supply voltage: 1.8V (typical), guaranteed specifications at 1.8V, 2.7V, and 5V
• Output swing: 80mV from rail with 600Ω load; 30mV from rail with 2kΩ load
• VCM = 200mV beyond supply rails
• 100μA supply current (per channel)
• 1.4MHz gain bandwidth product
• Maximum VOS = 4mV
• Temperature range: -40°C to +125°C
