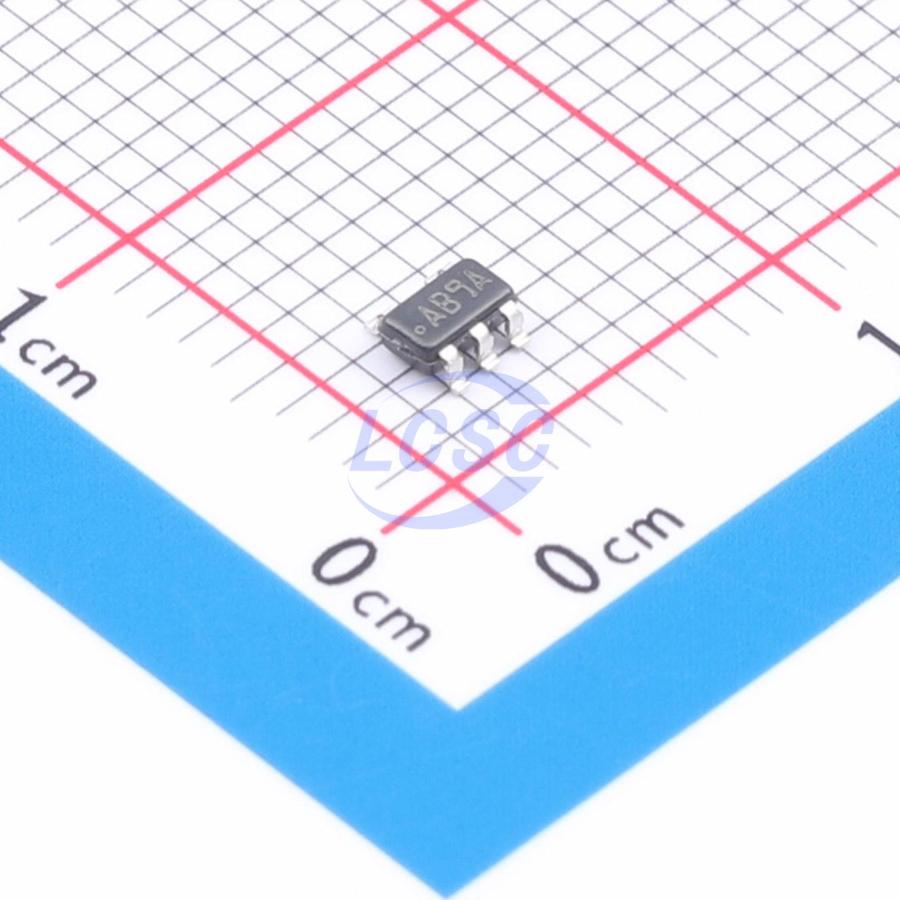

LMV641MFX/NOPB

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

Low-Power 10MHz Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMV641MFX/NOPB
Store part #: C2059681
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

150 in stock

#C2059681

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹283.12	₹283.12
10+	₹251.81	₹2,518.10
30+	₹229.57	₹6,887.10
100+	₹209.26	₹20,926.00
500+	₹199.76	₹99,880.00
1,000+	₹196.10	₹1,96,100.00

Quantity (min 1)

1 × ₹283.12

₹283.12

excl. GST

₹334.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV641MFX/NOPB

₹283.12 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 22mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 2.3V/us
Input Offset Current(Ios): 110nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 95nA
Input Offset Voltage Drift(Vos TC): 100nV/℃
Quiescent Current: 138uA
Gain Bandwidth Product: 10MHz
Input Voltage Noise Density: 14nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The LMV641 is a low-power, wide-bandwidth op-amp with an extended supply voltage range of 2.7V to 12V. The device features a gain bandwidth product of 10MHz with unity-gain stability at a typical supply current of 138μA. Additional key specifications include: PSRR of 105dB, CMRR of 120dB, VOS of 500μV, input-referred voltage noise of 14nV/√Hz, and THD of 0.002%. This amplifier features a rail-to-rail output stage and a common-mode input voltage range that includes the negative supply. The LMV641 operates over a temperature range of -40°C to +125°C, and is available in space-saving 5-pin SC70, SOT-23, and 8-pin SOIC packages.

Applications

Portable devices
Battery-powered systems
Sensors and instrumentation

Key features

Specified 2.7V and ±5V performance
Low supply current: 138μA
High unity-gain bandwidth: 10MHz
Maximum input offset voltage: 500μV
CMRR: 120dB
PSRR: 105dB
Input-referred voltage noise: 14nV/√Hz
1/f corner frequency: 4Hz
Output swing to supply rail: 40mV with 2kΩ load
Total harmonic distortion: 0.002% at 1kHz, 2kΩ
Temperature range: -40°C to 125°C
