LMV796QMF/NOPB

60mA 1 100uV 1.1V/us 94dB 0.1pA 1.15mA 17MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

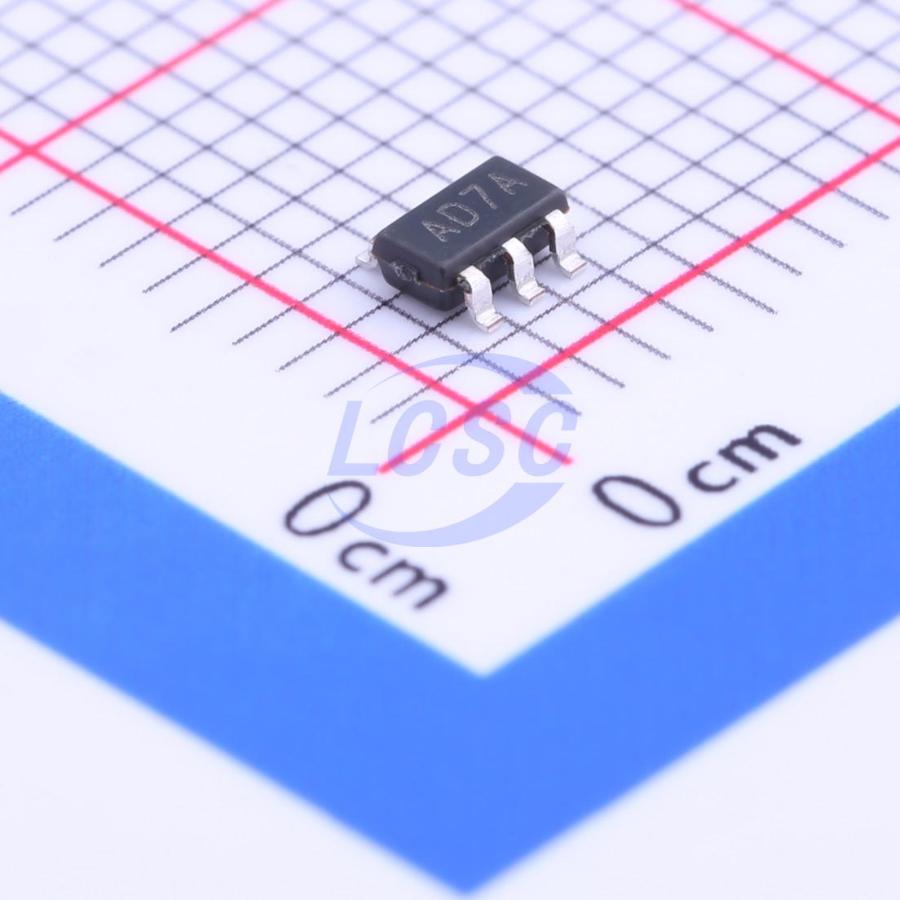

17 MHz, Low Noise, CMOS Input, 1.8V Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LMV796QMF/NOPB
Store part #: C205936
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21 in stock

#C205936

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹231.21	₹231.21
10+	₹196.41	₹1,964.10
30+	₹174.87	₹5,246.10
100+	₹152.69	₹15,269.00
500+	₹142.47	₹71,235.00
1,000+	₹138.12	₹1,38,120.00

Quantity (min 1)

1 × ₹231.21

₹231.21

excl. GST

₹272.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LMV796QMF/NOPB

₹231.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Slew Rate: 1.1V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 94dB
Ib - Input Bias Current: 0.1pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 1.15mA
Gain Bandwidth Product: 17MHz
Features: Built-in compensation
Input Voltage Noise Density: 5.8nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The LMV796/LMV796Q (Single) and the LMV797 (Dual) low noise, CMOS input operational amplifiers offer a low input voltage noise density of 5.8 nV/√Hz while consuming only 1.15 mA (LMV796/LMV796Q) of quiescent current. The LMV796/LMV796Q and LMV797 are unity gain stable op amps and have gain bandwidth of 17 MHz. The LMV796/LMV796Q/ LMV797 have a supply voltage range of 1.8V to 5.5V and can operate from a single supply. The LMV796/LMV796Q/LMV797 each feature a rail-to-rail output stage capable of driving a 600Ω load and sourcing as much as 60 mA of current. The LMV796/LMV796Q family provides optimal performance in low voltage and low noise systems. A CMOS input stage, with typical input bias currents in the range of a few femtoAmperes, and an input common mode voltage range, which includes ground, make the LMV796/LMV796Q and the LMV797 ideal for low power sensor applications. The LMV796/LMV796Q/LMV797 are manufactured using TI’s advanced VIP50 process. The LMV796/ LMV796Q are offered in 5–pin SOT-23 package. The LMV797 is offered in 8–pin VSSOP package.

Applications

Photodiode Amplifiers
Active Filters and Buffers
Low Noise Signal Processing
Medical Instrumentation
Sensor Interface Applications
Automotive

Key features

Input Referred Voltage Noise 5.8 nV/√Hz
Input Bias Current 100 fA
Unity Gain Bandwidth 17 MHz
Supply Current per Channel:
LMV796/LMV796Q 1.15 mA
LMV797 1.30 mA
Rail-to-Rail Output Swing:
10 kΩ Load 25 mV from Rail
2 kΩ Load 45 mV from Rail
Guaranteed 2.5V and 5.0V Performance
Total Harmonic Distortion 0.01% @ 1kHz, 600Ω
Temperature Range -40°C to 125°C
LMV796Q is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow.
