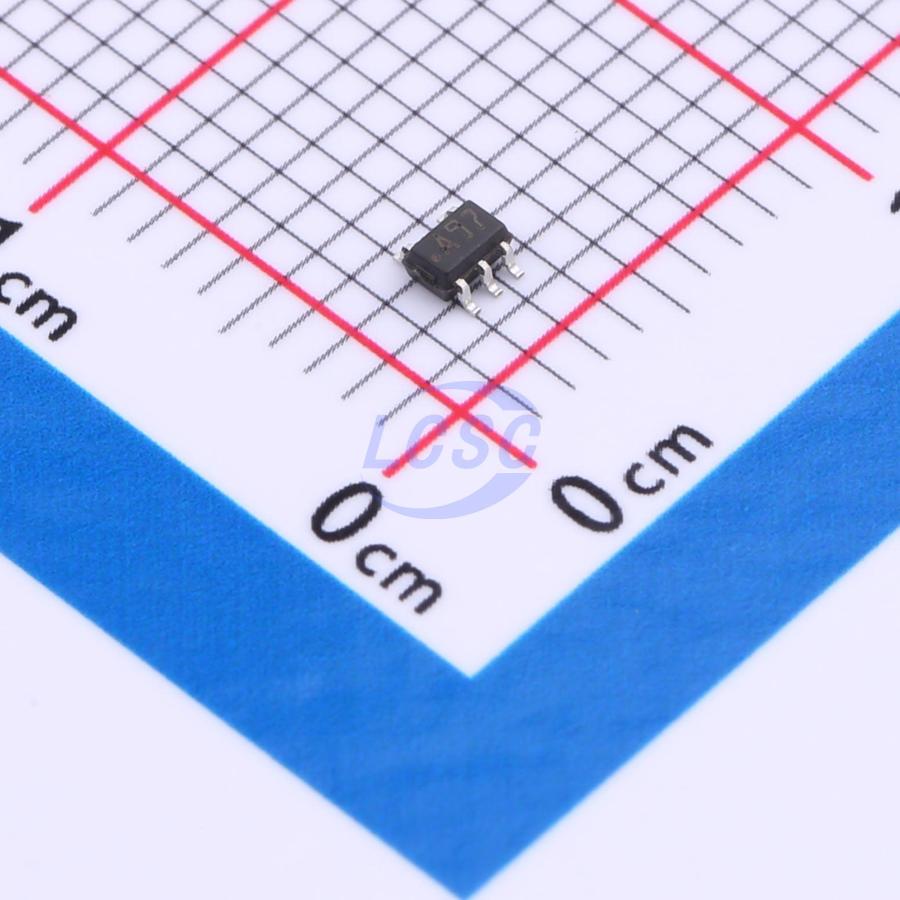

LMV841MG/NOPB

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SC-70-5

SC-70-5ROHS3 CompliantActive

4.5MHz operational amplifier with CMOS input, RRIO, low power consumption, and wide supply voltage range

Manufacturer: TI
Manufacturer part #: LMV841MG/NOPB
Store part #: C2861857
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C2861857

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹371.84	₹371.84
10+	₹316.99	₹3,169.90
30+	₹282.51	₹8,475.30
100+	₹232.86	₹23,286.00
500+	₹216.83	₹1,08,415.00
1,000+	₹210.11	₹2,10,110.00

Quantity (min 1)

1 × ₹371.84

₹371.84

excl. GST

₹438.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LMV841MG/NOPB

₹371.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Slew Rate: 2.5V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 112dB
Ib - Input Bias Current: 0.3pA
Input Offset Voltage Drift(Vos TC): 500nV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 4.5MHz
Input Voltage Noise Density: 20nV/√Hz@1kHz
Dual Supply: -5V~5V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The LMV84x devices are low-voltage, low-power op amps operating from 2.7V to 12V supply voltage with rail-to-rail input and output capability. Their low offset voltage, low supply current, and CMOS input characteristics make them ideal for high-impedance sensor interfaces and battery-powered applications. The single LMV841 is available in a space-saving 5-pin SC70 package, the dual LMV842 in 8-pin VSSOP and 8-pin SOIC packages, and the quad LMV844 in 14-pin TSSOP and 14-pin SOIC packages. These compact packages are ideal solutions for space-constrained PCBs and portable electronics.

Applications

High-impedance sensor interface
Battery-powered instrumentation
High-gain and instrumentation amplifiers
DAC buffers and active filters

Key features

Compact 5-pin SC70 package (2.00mm×1.25mm×0.95mm)
Wide supply voltage range: 2.7V to 12V
Operates at 3.3V, 5V, and ±5V rated voltages
Low supply current: 1mA per channel
Unity-gain bandwidth: 4.5MHz
Open-loop gain: 133dB
Input offset voltage: 500μV maximum
Input bias current: 0.3pA
CMRR: 112dB, PSRR: 108dB
Input voltage noise: 20nV/√Hz
Temperature range: -40°C to 125°C
Rail-to-rail input and output (RRIO)
