STDatasheet (PDF)

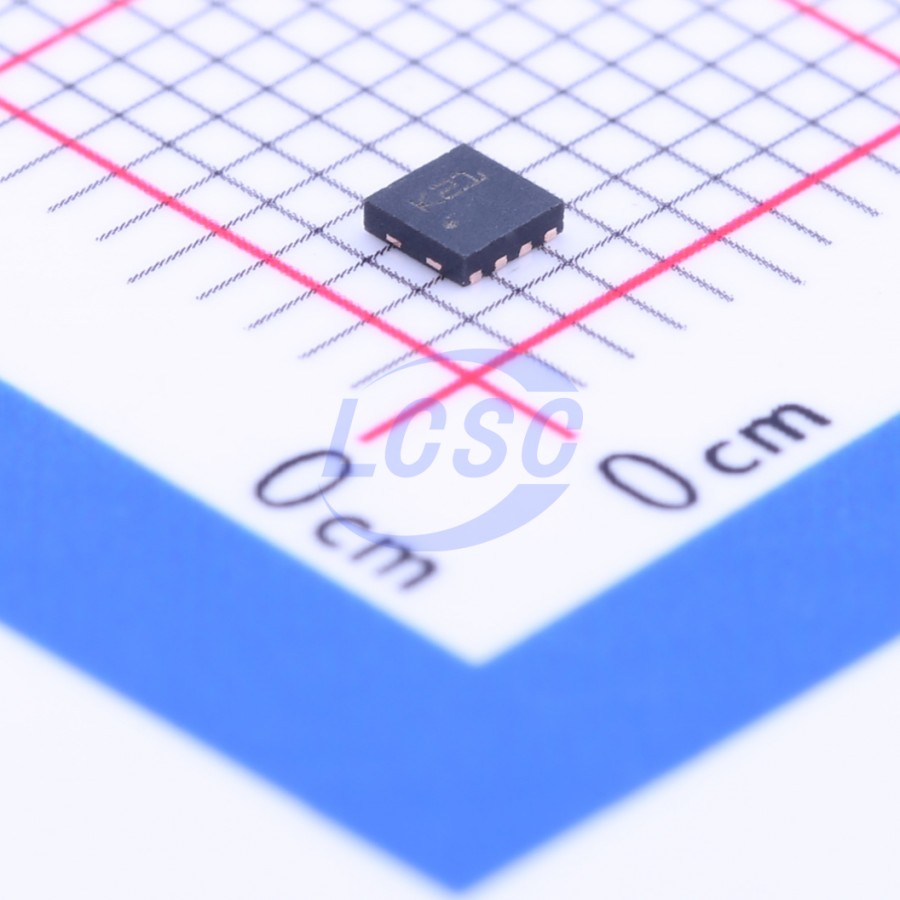

LMX358IQ2T
21mA 2 4mV 600V/ms 75dB 27nA 120uA 1.3MHz Rail-to-rail output DFN-8-EP(2x2) Instrumentation, Op Amps, Buffer Amps RoHS
DFN-8-EP(2x2)ROHS3 CompliantActive
Low-power general-purpose operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- LMX358IQ2T
- Store part #
- C157376
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C157376
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.35 | ₹71.35 |
| 10+ | ₹55.47 | ₹554.70 |
| 30+ | ₹48.73 | ₹1,461.90 |
| 100+ | ₹40.25 | ₹4,025.00 |
| 500+ | ₹36.33 | ₹18,165.00 |
| 1,000+ | ₹34.16 | ₹34,160.00 |
1 × ₹71.35
₹71.35
excl. GST
₹84.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMX358IQ2T
₹71.35 for 1 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 27nA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 120uA
- Gain Bandwidth Product
- 1.3MHz
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The LMX3xx series is a set of single, dual, and quad low-voltage, general-purpose, operational amplifiers. These devices can operate from 2.3 V to 5.5 V with a typical current consumption of 120 μA per channel. The LMX3xx series offers a rail-to-rail output and an input common-mode voltage that includes ground. The LMX3xx series also exhibits a 1.3 MHz gain bandwidth and they can drive capacitive loads. The devices are stable while operating at unity gain. They are offered with industry standard pinouts in tiny packages.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
- Active filtering
- Medical instrumentation
Key features
- Low power consumption: 120 μA at 2.7 V
- Low supply voltage: 2.3 V - 5.5 V
- Rail-to-rail output swing
- Gain bandwidth product: 1.3 MHz
- Extended temperature range: -40 °C to 125 °C
- No crossover distortion
- No phase reversal
- Tiny packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV822IQ2T#C2971614ST · DFN-8(2x2) | ST | DFN-8(2x2) | 15 | ₹168.18 · 15 in stock | View |
 | TSV912IQ2T#C443986ST · DFN-8(2x2) | ST | DFN-8(2x2) | 11,468 | ₹86.56 · 11,468 in stock | View |
 | TP1562AL1-FR#C387461683PEAK · DFN-8(2x2) | 3PEAK | DFN-8(2x2) | 2,845 | ₹57.37 · 2,845 in stock | View |
 | TSV7722IQ2T#C4368680ST · DFN-8(2x2) | ST | DFN-8(2x2) | 50 | ₹228.47 · 50 in stock | View |
 | TSV912IQ2T-TUDI#C54858237Tudi · DFN-8(2x2) | Tudi | DFN-8(2x2) | 114 | ₹65.05 · 114 in stock | View |
