NATLINEAR

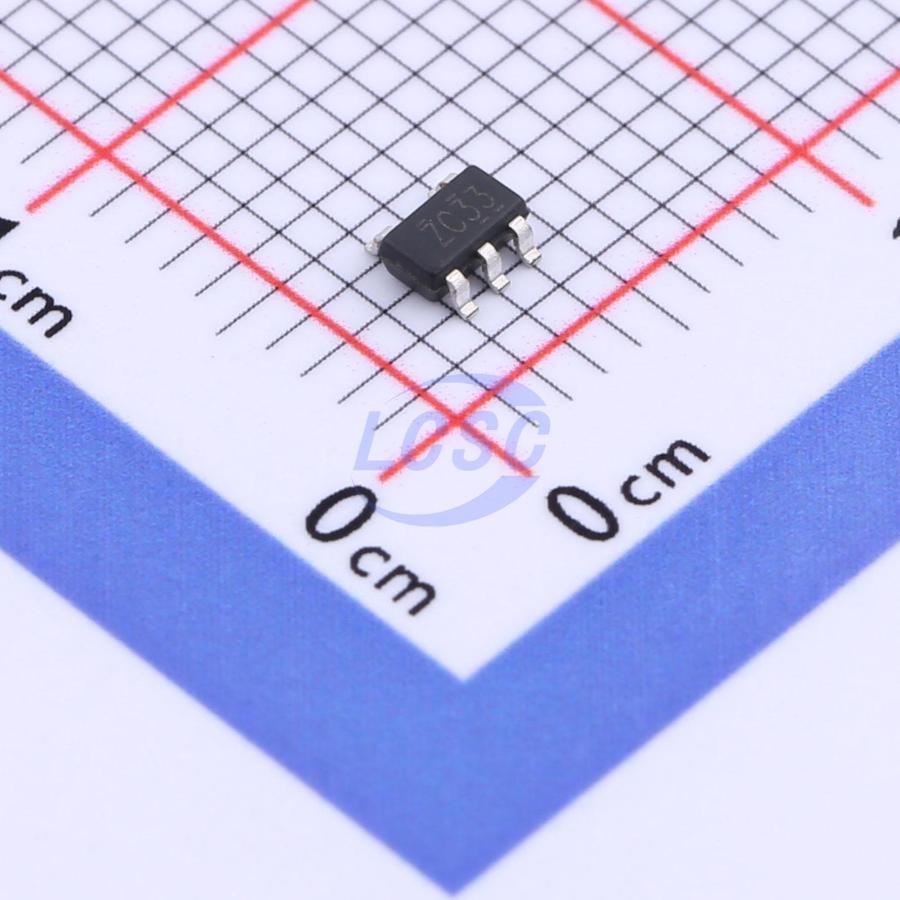

LN2119B123MR-G

Boost Switching Regulator IC Adjustable 1 Output SOT-23-5L

SOT-23-5LROHS CompliantActive

Fixed Frequency High Efficiency Boost DC-DC Controller

Manufacturer: NATLINEAR
Manufacturer part #: LN2119B123MR-G
Store part #: C3008005
Package / case: SOT-23-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C3008005

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.46	₹52.30
50+	₹8.27	₹413.50
150+	₹7.18	₹1,077.00
500+	₹6.35	₹3,175.00
3,000+	₹5.70	₹17,100.00
6,000+	₹5.37	₹32,220.00

Quantity (min 5, multiples of 5)

5 × ₹10.46

₹52.30

excl. GST

₹61.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LN2119B123MR-G

₹52.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Number of Outputs: 1
Frequency - Switching: 800kHz~1.2MHz
Function: Boost
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~22V
Output Current: 600mA
Quiescent Current: 1.2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The LN2119 series is a fixed-frequency, high-efficiency boost DC/DC controller designed primarily for OLED driving applications. The output voltage can reach up to 22V, and it can deliver 12V to drive an OLED when powered by a lithium battery. The device integrates an internal power switch with 2Ω on-resistance and 22V breakdown voltage rating, housed in a compact SOT23-5L package to save PCB space and reduce BOM cost.
