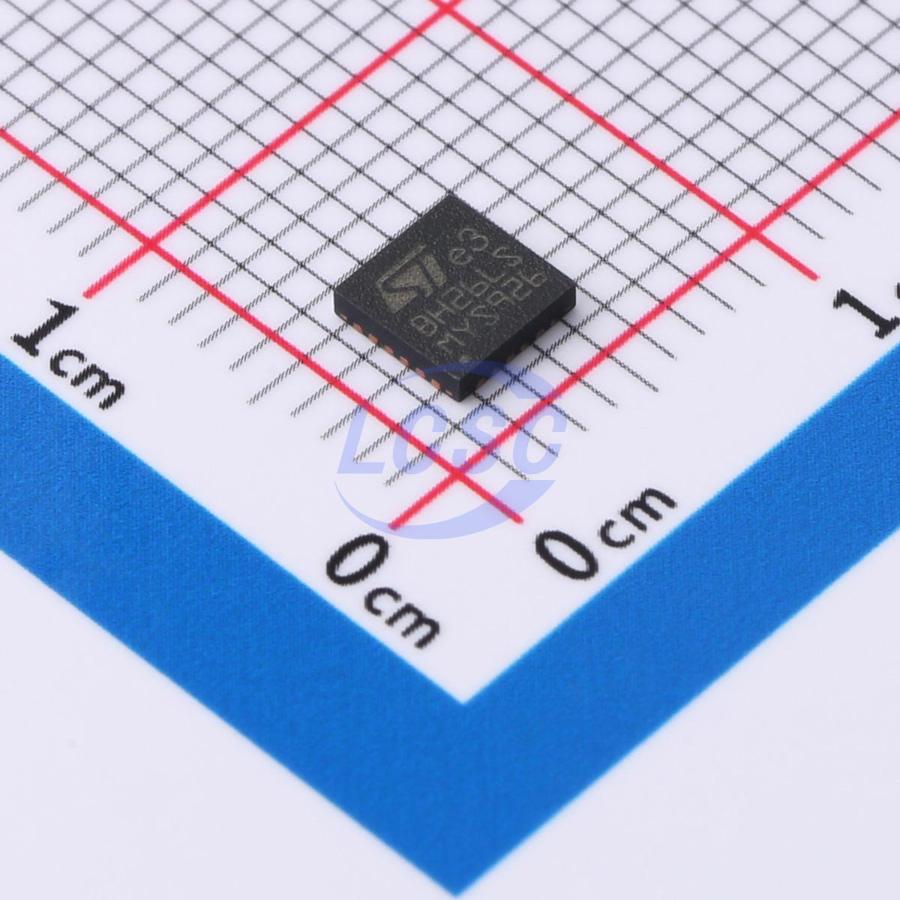

LNBH26LSPQR

440kHz Boost Adjustable 12.545V~19.82V QFN-24(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-24(4x4)ROHS CompliantActive

Dual LNBS supply and control IC with step-up and I2C interface

Manufacturer: ST
Manufacturer part #: LNBH26LSPQR
Store part #: C5199064
Package / case: QFN-24(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5199064

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹239.37	₹239.37
10+	₹233.36	₹2,333.60
30+	₹229.28	₹6,878.40
100+	₹225.20	₹22,520.00

Quantity (min 1)

1 × ₹239.37

₹239.37

excl. GST

₹282.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

LNBH26LSPQR

₹239.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+125℃
Frequency - Switching: 440kHz
Number of Outputs: 2
Function: Boost
Features: Adjustable current limiting;Hiccup current limiting;Protection latch;Overcurrent Protection;Built-in LDO regulator;Operating status indication
Output Type: Adjustable
Topology: Boost
Operating Voltage: 8V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 12.545V~19.82V
Quiescent Current: 12mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.5 g

Overview

Intended for analog and digital dual satellite receiver/Sat-TV, Sat-PC cards, the LNBH26LS is a monolithic voltage regulator and IC interface, assembled in QFN24 (4x4 mm) specifically designed to provide the 13/18 V power supply and the 22 kHz tone signaling to the LNB downconverter in the antenna dishes or to the multiswitch box. In this application field, it offers a complete solution for dual tuner satellite receivers with extremely low component count, low power dissipation together with simple design and I²C standard interfacing.

Applications

STB satellite receivers
TV satellite receivers
PC card satellite receivers

Key features

Complete interface between then LNB and I²C bus
Built-in DC-DC converter for single 12 V supply operation and high efficiency (typ. 93% @ 0.5A)
Selectable output current limit by external resistor
Compliant with main satellite receiver output voltage specification (8 programmable levels)
Accurate built-in 22 kHz tone generator suits widely accepted standards
22 kHz tone waveform integrity guaranteed also at no load condition
Low drop post regulator and high efficiency step-up PWM with integrated power NMOS allowing low power losses
Overload and overtemperature internal protection with I²C diagnostic bits
LNB short-circuit dynamic protection
+/-4 kV ESD tolerant on output power pins
