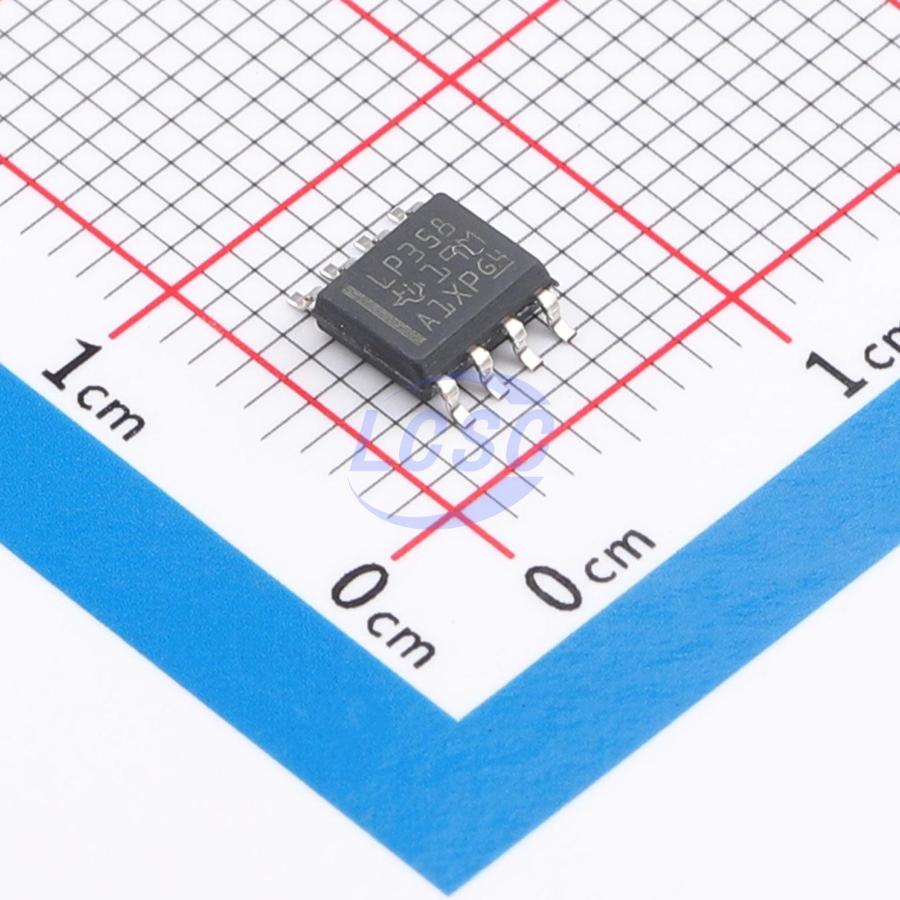

LP358DR
10mA 2 2mV 50V/ms 80dB 2nA 54uA 100kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Ultra-Low Power Dual Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LP358DR
- Store part #
- C1848139
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
285 in stock
#C1848139
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.40 | ₹77.40 |
| 10+ | ₹61.96 | ₹619.60 |
| 30+ | ₹54.24 | ₹1,627.20 |
| 100+ | ₹46.53 | ₹4,653.00 |
| 500+ | ₹42.02 | ₹21,010.00 |
| 1,000+ | ₹39.66 | ₹39,660.00 |
1 × ₹77.40
₹77.40
excl. GST
₹91.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LP358DR
₹77.40 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 50V/ms
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 45uV/℃
- Quiescent Current
- 54uA
- Gain Bandwidth Product
- 100kHz
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
The LP358 and LP2904 devices are dual low-power operational amplifiers especially suited for battery-operated applications. Good input specifications and wide supply-voltage range still are achieved despite the ultra-low supply current. Single-supply operation is achieved with an input common-mode range that includes GND. The LP358 and LP2904 devices are ideal in applications where wide supply voltages and low power are more important than speed and bandwidth. These applications include portable instrumentation, LCD displays, consumer electronics (MP3 players, toys, and so forth), and power supplies.
Applications
- LCD Displays
- Portable Instrumentation
- Sensor and Metering Equipment
- Consumer Electronics (MP3 Players, Toys)
- Power Supplies
Key features
- Low Supply Current: 54 μA (Typical)
- Low Offset Voltage: 2 mV (Typical)
- Low Input Bias Current: 2 nA (Typical)
- Input Common-Mode to GND
- Wide Supply Voltage: 3 V < VCC < 32 V
- Pin Compatible With LM358 and LM2904
