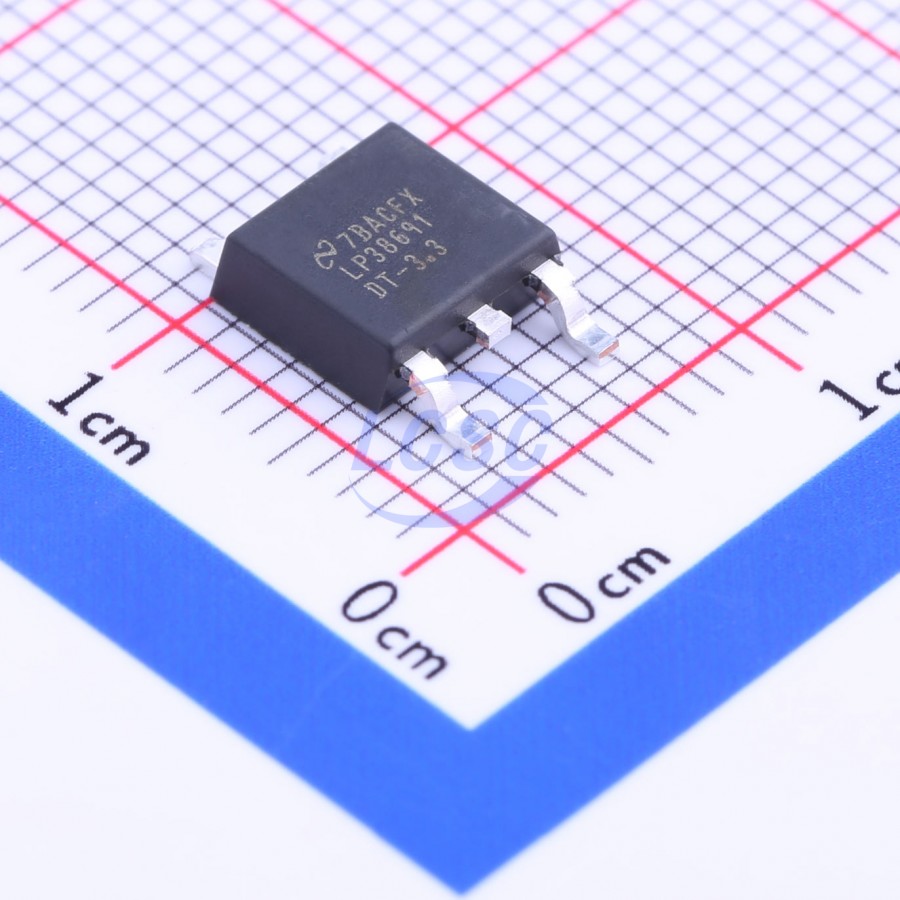

LP38691DTX-3.3/NOPB

The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage 250 mV at 500-mA load current, VOUT = 5 ΔV; ), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 μA regardless of load current, input voltage, or operating temperature.

Applications

• Hard Disk Drives
• Notebook Computers
• Battery-Powered Devices
• Portable Instrumentation

Key features

• Wide Input Voltage Range (2.7 V to 10 V)
• All WSON Options are Available as AEC-Q100 Grade 1
• 2% Output Accuracy (25°C)
• Low Dropout Voltage: 250 mV at 500 mA (Typical, 5 V Out)
• Precision (Trimmed) Bandgap Reference
• Ensured Specifications for -40°C to 125°C
• 1-μA Off-State Quiescent Current
• Thermal Overload Protection
• Foldback Current Limiting
• Ground Pin Current: 55 μA (typical) at full load
• Enable Pin (LP38693)
