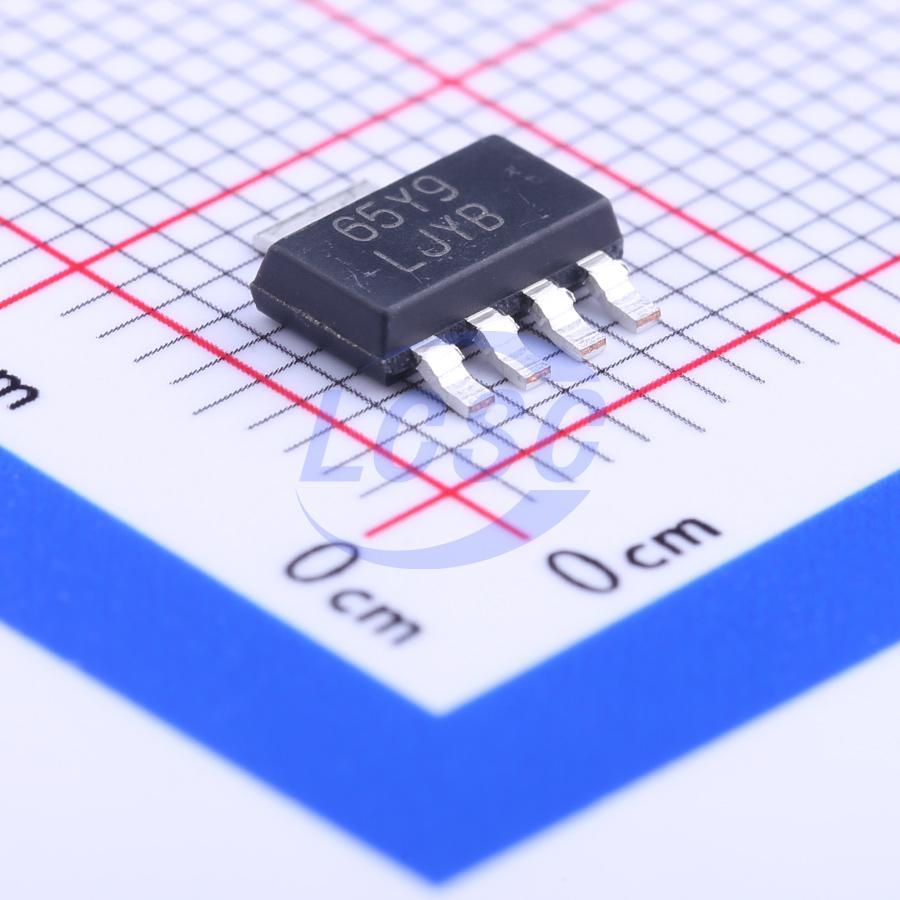

LP38693MP-3.3/NOPB
3.3V Positive Fixed SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
500mA, 10V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38693MP-3.3/NOPB
- Store part #
- C130904
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
292 in stock
#C130904
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.51 | ₹241.51 |
| 10+ | ₹212.55 | ₹2,125.50 |
| 30+ | ₹192.30 | ₹5,769.00 |
| 100+ | ₹173.79 | ₹17,379.00 |
| 500+ | ₹165.08 | ₹82,540.00 |
| 1,000+ | ₹161.82 | ₹1,61,820.00 |
1 × ₹241.51
₹241.51
excl. GST
₹284.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP38693MP-3.3/NOPB
₹241.51 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage 250 mV at 500-mA load current, VOUT = 5 V; ), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 μA regardless of load current, input voltage, or operating temperature.
Applications
- Hard Disk Drives
- Notebook Computers
- Battery-Powered Devices
- Portable Instrumentation
Key features
- Wide Input Voltage Range (2.7 V to 10 V)
- All WSON Options are Available as AEC-Q100 Grade 1
- 2% Output Accuracy (25°C)
- Low Dropout Voltage: 250 mV at 500 mA (Typical, 5 V Out)
- Precision (Trimmed) Bandgap Reference
- Ensured Specifications for -40°C to 125°C
- 1-μA Off-State Quiescent Current
- Thermal Overload Protection
- Foldback Current Limiting
- Ground Pin Current: 55 μA (typical) at full load
- Enable Pin (LP38693)
