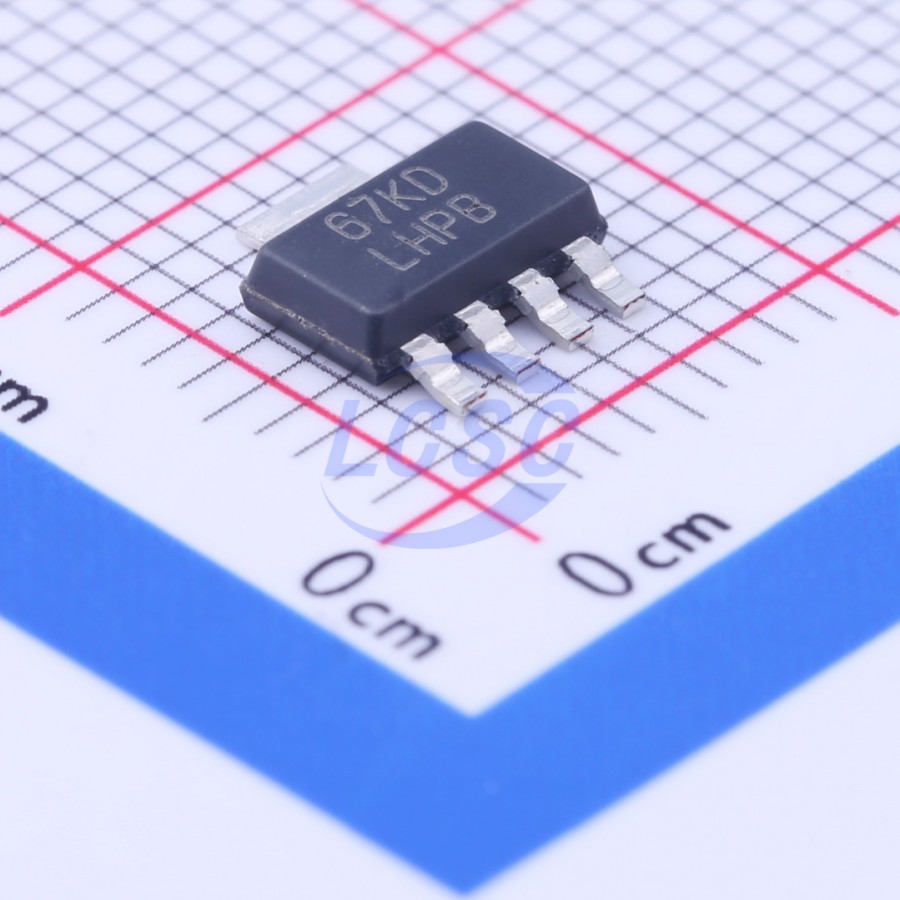

LP3875EMP-3.3/NOPB
3.3V Positive Fixed SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
1.5A, 7V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP3875EMP-3.3/NOPB
- Store part #
- C206480
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C206480
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹326.17 | ₹326.17 |
| 10+ | ₹274.60 | ₹2,746.00 |
| 30+ | ₹242.19 | ₹7,265.70 |
| 100+ | ₹209.11 | ₹20,911.00 |
| 500+ | ₹194.10 | ₹97,050.00 |
| 1,000+ | ₹187.56 | ₹1,87,560.00 |
1 × ₹326.17
₹326.17
excl. GST
₹384.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP3875EMP-3.3/NOPB
₹326.17 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 1.5A
- Operating Voltage
- 7V
- Features
- Enable control;Operating status indication;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The LP387x series of fast ultra low-dropout linear regulators operate from a 2.5-V to 7-V input supply. Wide range of preset output voltage options are available. These ultra low-dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low-voltage microprocessor applications. The LP3872 and LP3875 are developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3872 and LP3875 to operate under extremely low dropout conditions.
Applications
- Microprocessor Power Supplies
- GTL, GTL+, BTL, and SSTL Bus Terminators
- Power Supplies for DSPs
- SCSI Terminators
- Post Regulators
- High Efficiency Linear Regulators
- Battery Chargers
- Other Battery-Powered Applications
Key features
- Input Voltage Range: 2.5 V to 7 V
- Ultra Low-Dropout Voltage
- Low Ground Pin Current
- Load Regulation of 0.06%
- 10-nA Quiescent Current in Shutdown Mode
- Ensured Output Current of 1.5-A DC
- Available in DDPAK/TO-263, TO-220, and SOT-223 Packages
- Output Voltage Accuracy ± 1.5%
- ERROR Flag for Output Status
- Sense Option Improves Load Regulation
- Minimum Output Capacitor Requirements
- Overtemperature/Overcurrent Protection
- -40°C to 125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3872EMP-3.3/NOPB#C2868678TI · SOT-223-5 | TI | SOT-223-5 | 978 | ₹555.42 · 978 in stock | View |
| LP3872EMPX-3.3/NOPB#C2877955TI · SOT-223-5 | TI | SOT-223-5 | 5 | ₹377.33 · 5 in stock | View | |
| LP3852EMP-3.3/NOPB#C2870940TI · SOT-223-5 | TI | SOT-223-5 | 9 | ₹501.28 · 9 in stock | View | |
 | LP3962EMP-3.3/NOPB#C2860065TI · SOT-223-5 | TI | SOT-223-5 | 8 | ₹773.84 · 8 in stock | View |
 | LP3855EMP-3.3/NOPB#C2866776TI · SOT-223-5 | TI | SOT-223-5 | On request | ₹358.63 · 0 in stock | View |
