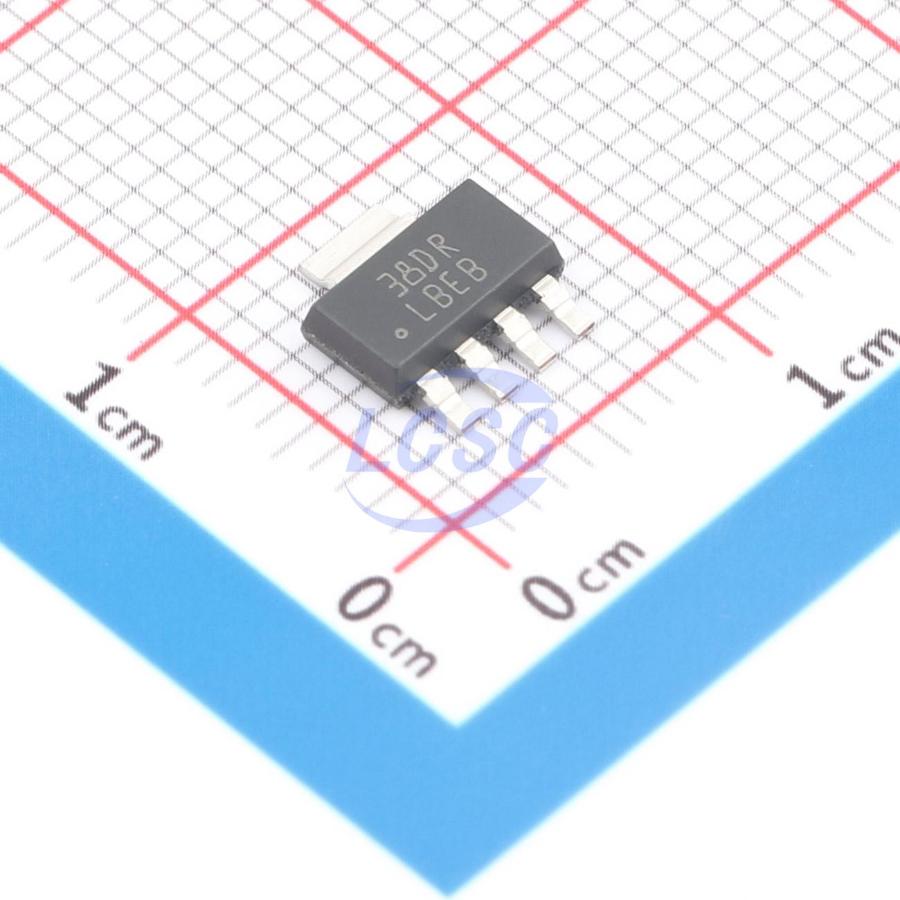

LP3962EMP-3.3/NOPB

3.3V Positive Fixed SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223-5ROHS3 CompliantActive

1.5A, high-precision, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: LP3962EMP-3.3/NOPB
Store part #: C2860065
Package / case: SOT-223-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C2860065

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹773.84	₹773.84
10+	₹690.01	₹6,900.10
30+	₹636.47	₹19,094.10
100+	₹584.65	₹58,465.00

Quantity (min 1)

1 × ₹773.84

₹773.84

excl. GST

₹913.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LP3962EMP-3.3/NOPB

₹773.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5mA
Output Configuration: Positive
Output Current: 1.5A
Operating Voltage: 7V
Features: Operating status indication;Short Circuit Protection;Over Current Protection;Thermal shutdown;Enable control
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.72 g

Overview

The LP3962/LP3965 series of fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. These ultra low dropout linear regulators respond very fast to step changes in load which makes them suitable for low voltage microprocessor applications. The LP3962/LP3965 are developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3962/LP3965 to operate under extremely low dropout conditions.

Applications

Microprocessor Power Supplies
GTL, GTL+, BTL, and SSTL Bus Terminators
Power Supplies for DSPs
SCSI Terminator Post Regulators
High Efficiency Linear Regulators
Battery Chargers
Other Battery Powered Applications

Key features

Ultra Low Dropout Voltage
Low Ground Pin Current
Load Regulation of 0.04%
15μA Quiescent Current in Shutdown Mode
Specified Output Current of 1.5A DC
Available in SOT - 223, SFM/TO - 263 and TO - 220 Packages
Output Voltage Accuracy ± 1.5%
Error Flag Indicates Output Status (LP3962)
Sense Option Improves Better Load Regulation (LP3965)
Extremely Low Output Capacitor Requirements
Overtemperature/Overcurrent Protection
-40°C to +125°C Junction Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP3852EMP-3.3/NOPB#C2870940TI · SOT-223-5	TI	SOT-223-5	9	₹501.28 · 9 in stock	View
LP3875EMP-3.3/NOPB#C206480TI · SOT-223-5	TI	SOT-223-5	6	₹326.17 · 6 in stock	View
LP3872EMP-3.3/NOPB#C2868678TI · SOT-223-5	TI	SOT-223-5	978	₹555.42 · 978 in stock	View
LP3872EMPX-3.3/NOPB#C2877955TI · SOT-223-5	TI	SOT-223-5	5	₹377.33 · 5 in stock	View
LP3965EMP-3.3/NOPB#C2859791TI · SOT-223-5	TI	SOT-223-5	On request	₹252.16 · 0 in stock	View
