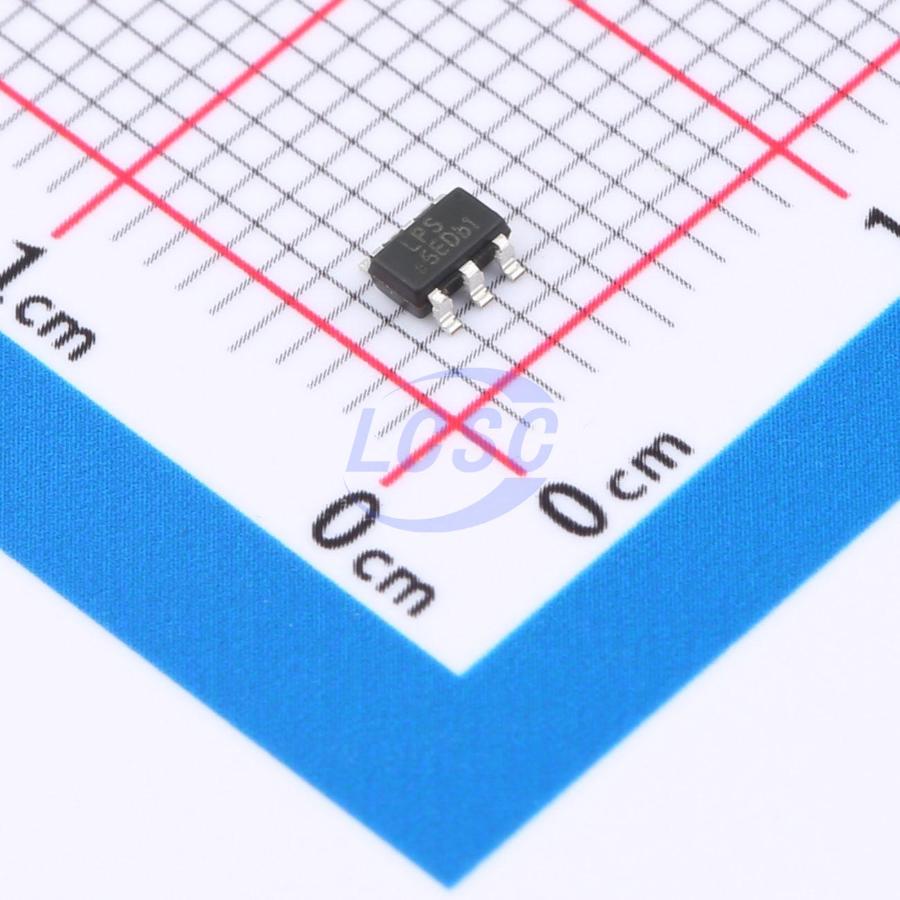

LP6225B6F
Boost Switching Regulator IC Adjustable 2.5V~18V 1 Output SOT-23-6
SOT-23-6RoHSActive
High Efficiency Boost DC/DC Convertor
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP6225B6F
- Store part #
- C47345730
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C47345730
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.71 | ₹133.55 |
| 50+ | ₹21.25 | ₹1,062.50 |
| 150+ | ₹18.89 | ₹2,833.50 |
| 500+ | ₹15.98 | ₹7,990.00 |
| 3,000+ | ₹14.67 | ₹44,010.00 |
| 6,000+ | ₹13.89 | ₹83,340.00 |
5 × ₹26.71
₹133.55
excl. GST
₹157.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP6225B6F
₹133.55 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Function
- Boost
- Number of Outputs
- 1
- Frequency - Switching
- 900kHz
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~15V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~18V
- Quiescent Current
- 32uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
LP6225 is an asynchronous boost converter utilizing peak current mode control with a fixed switching frequency of 900kHz. The internal compensation network eliminates the need for external compensation components. The integrated soft-start circuit effectively limits inrush current during startup, preventing the battery or external supply voltage from being pulled down. Output voltage is programmable via external resistors to accommodate various power system requirements. The LP6225 automatically enters PFM mode under light load conditions to improve conversion efficiency. As load current increases, the device transitions to PWM mode, which offers a relatively fixed output ripple frequency band and high conversion efficiency. The LP6225 integrates protection features including undervoltage, overcurrent, and overtemperature. The device is available in a compact SOT23-6 package.
Applications
- Battery products
- Host products
- Panels
Key features
- 2.5V to 15V input voltage
- Up to 92% efficiency
- Shutdown current: <1μA @ VIN = 5V
- Integrated 80mΩ power MOSFET
- Adjustable output voltage up to 18V
- Internal compensation, soft-start
- 900kHz fixed switching frequency
- Internal switch current limiting
- SOT23-6 package
- RoHS compliant, 100% lead-free
