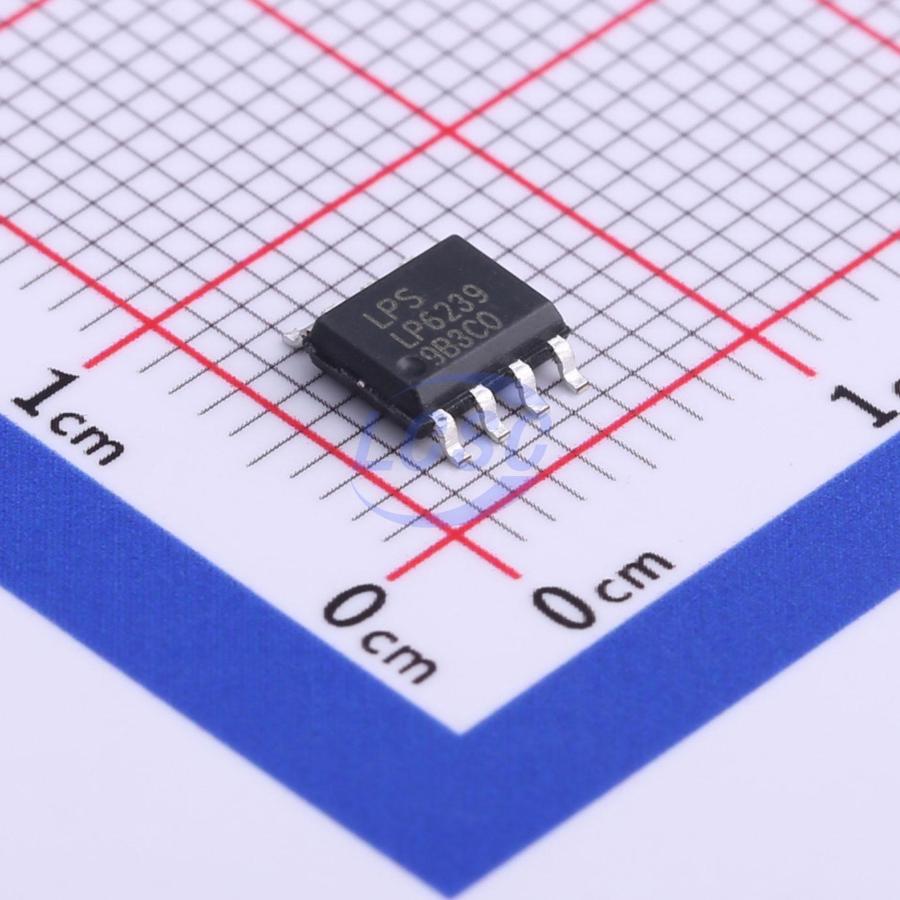

LOWPOWER

LP6239SOF

Boost 600kHz Adjustable SOP-8 Voltage Regulators - DC DC Switching Regulators

SOP-8RoHSActive

High Efficiency Boost DC/DC Controller

Manufacturer: LOWPOWER
Manufacturer part #: LP6239SOF
Store part #: C517061
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,850 in stock

#C517061

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.50	₹182.50
50+	₹32.12	₹1,606.00
150+	₹30.24	₹4,536.00
500+	₹27.95	₹13,975.00
2,500+	₹26.91	₹67,275.00
4,000+	₹26.29	₹1,05,160.00
8,000+	₹25.86	₹2,06,880.00
20,000+	₹25.65	₹5,13,000.00

Quantity (min 5, multiples of 5)

5 × ₹36.50

₹182.50

excl. GST

₹215.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

LP6239SOF

₹182.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Function: Boost
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Adjustable current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): External
Quiescent Current: 2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.147 g

Overview

The LP6239 is a high performance non-synchronous boost converter controller that drives N-channel power MOSFETs. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the LP6239 to be used in high power boost applications. A 2.5V to 6V input supply range encompasses a wide range of system architectures. The LP6239 features operating fixed-frequency at 600kHz and a 1.215V reference voltage. The CS pin can adjustable the current limited and slope compensation by permutations the external resistor. Other features include over current protection (OCP), output over voltage protection (OVP), and under-voltage lockout (UVLO). The LP6239 is available in SOP-8 (0.5mm pitch) package.
