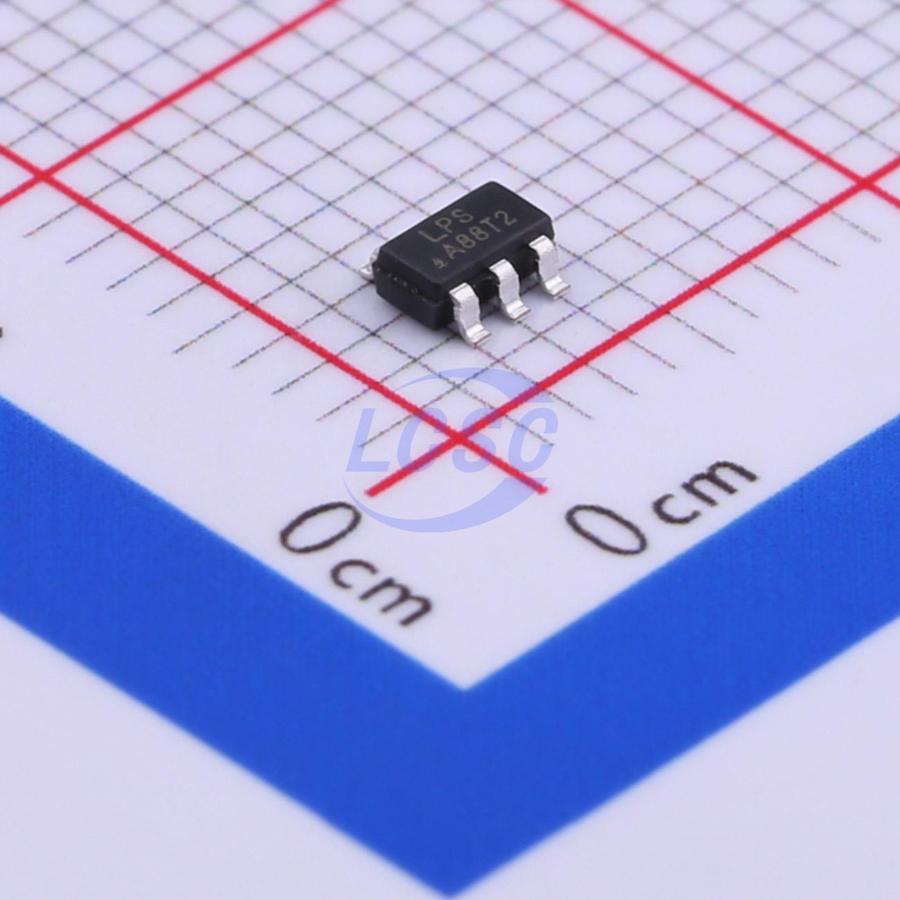

Step-down type 600kHz Adjustable 800mV~12V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

600KHz 16V/2A Synchronous Step-down Converter

Manufacturer: LOWPOWER
Manufacturer part #: LP6470B6F
Store part #: C387628
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C387628

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹16.39	₹16.39
10+	₹12.87	₹128.70
30+	₹11.11	₹333.30
100+	₹9.80	₹980.00
500+	₹8.75	₹4,375.00
1,000+	₹8.22	₹8,220.00

Quantity (min 1)

1 × ₹16.39

₹16.39

excl. GST

₹19.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP6470B6F

₹16.39 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~12V
Output Current: 2A
Quiescent Current: 450uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.024 g

Overview

The LP6470 contains an independent 600KHz constant frequency, current mode, PWM step-down converters. The converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The LP6470 is ideal for powering portable equipment that runs from a 2-cell Lithium-Ion (Li+) battery. The converter can supply 2000mA of load current from a 3.5V to 16V input voltage. The output voltage can be regulated as low as 0.8V. The LP6470 is available in a SOT23-6 package and is rated over the -40℃ to 85℃ temperature range. The LP6470 is a high output current monolithic switch-mode step-down DC-DC converter. The device operates at a fixed 600KHz switching frequency, and uses a slope compensated current mode architecture. This step-down DC-DC converter can supply up to 2A output current at input voltage range from 3.5V to 16V. It minimizes external component size and optimizes efficiency at the heavy load range. The integrated slope compensation allows the device to remain stable over a wider range of inductor values so that smaller values (2.2μH to 10μH) with lower DCR can be used to achieve higher efficiency. The device can be programmed with external feedback to any voltage, ranging from 0.8V to 12V. It uses internal MOSFETs to achieve high efficiency and can generate very low output voltages by using an internal reference of 0.8V. At dropout, the converter duty cycle increases to 95% and the output voltage tracks the input voltage minus the low RDS(ON) drop of the P-channel high-side MOSFET and the inductor DCR. The internal error amplifier and compensation provides excellent transient response, load and line regulation.
