LOWPOWER

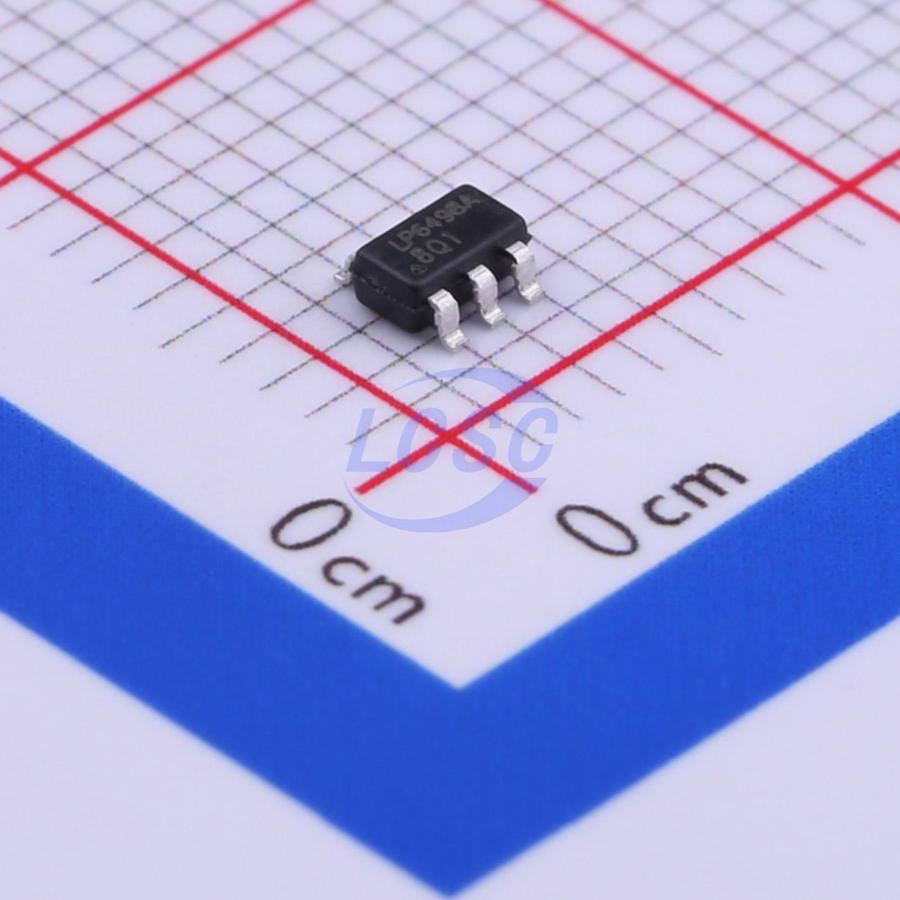

LP6498AB6F

Step-down type 600kHz Adjustable 800mV~12V 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

600KHz 36V/1.2A Synchronous Step-down Converter

Manufacturer: LOWPOWER
Manufacturer part #: LP6498AB6F
Store part #: C387722
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,750 in stock

#C387722

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.98	₹134.90
50+	₹21.04	₹1,052.00
150+	₹18.07	₹2,710.50
500+	₹15.85	₹7,925.00
3,000+	₹13.26	₹39,780.00
6,000+	₹12.37	₹74,220.00

Quantity (min 5, multiples of 5)

5 × ₹26.98

₹134.90

excl. GST

₹159.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LP6498AB6F

₹134.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Function: Step-down type
Frequency - Switching: 600kHz
Number of Outputs: 1
Features: Overcurrent Protection;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~30V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~12V
Output Current: 1.2A
Quiescent Current: 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

The LP6498A is a synchronous step-down regulator from a high voltage input supply. Operating with an input voltage range from 4.5V to 30V. 1.2A continuous output current. The converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. LP6498A requires a minimum number of readily available standard external components. Over current protection and thermal shutdown, output short circuit protection. The LP6498A converters are available in the industry standard SOT23-6 packages. The LP6498A is a switch-mode step-down DC-DC converter. The device operates at a fixed 600KHz switching frequency, and uses a slope compensated current mode architecture. This step-down DC-DC converter can supply up to 1.2A output current at input voltage range from 4.5V to 30V. It minimizes external component size and optimizes efficiency at the heavy load range. The integrated slope compensation allows the device to remain stable over a wider range of inductor values so that smaller values (6.8μH to 22μH) with lower DCR can be used to achieve higher efficiency.
