LPD3201

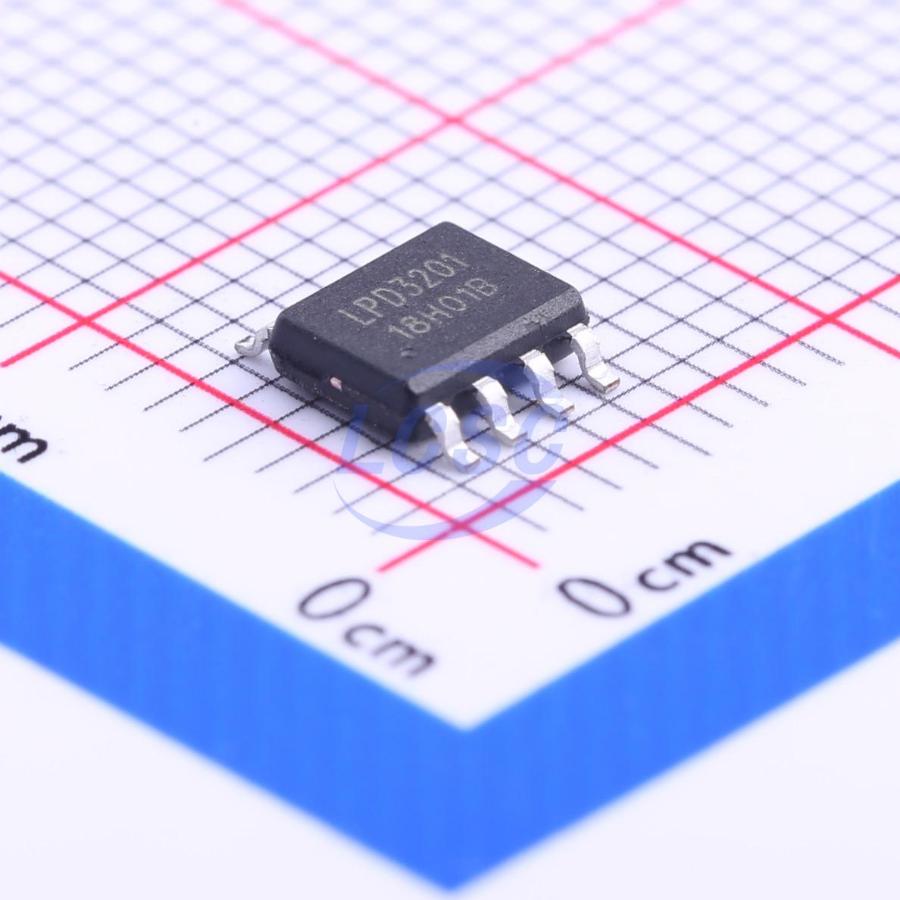

Buck Switching Regulator IC Adjustable 1.25V~25V 1 Output 0.5A SOIC-8-EP

SOIC-8-EPRoHSActive

0.5A 200KHZ 70VDC t0DC Buck Chip

Manufacturer: SX
Manufacturer part #: LPD3201
Store part #: C46321
Package / case: SOIC-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,844 in stock

#C46321

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹67.88	₹67.88
10+	₹53.83	₹538.30
30+	₹47.79	₹1,433.70
100+	₹40.22	₹4,022.00
500+	₹32.65	₹16,325.00
1,000+	₹30.71	₹30,710.00

Quantity (min 1)

1 × ₹67.88

₹67.88

excl. GST

₹80.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

LPD3201

₹67.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 200kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 5V~70V
Switch tube (built-in/external): Built-in
Output Voltage: 1.25V~25V
Output Current: 500mA
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.202 g

Overview

A high-efficiency, 200KHz fixed-frequency PWM DC step-down converter with 0.5A continuous load capability, low ripple, and excellent line/load regulation. Features built-in frequency compensation and fixed-frequency oscillator, requiring minimal external components for ease of use. The PWM control circuit enables linear duty cycle adjustment from 0 to 100%. Includes EN function and overcurrent protection; under output short-circuit conditions, the switching frequency reduces from 200KHz to 45KHz.
