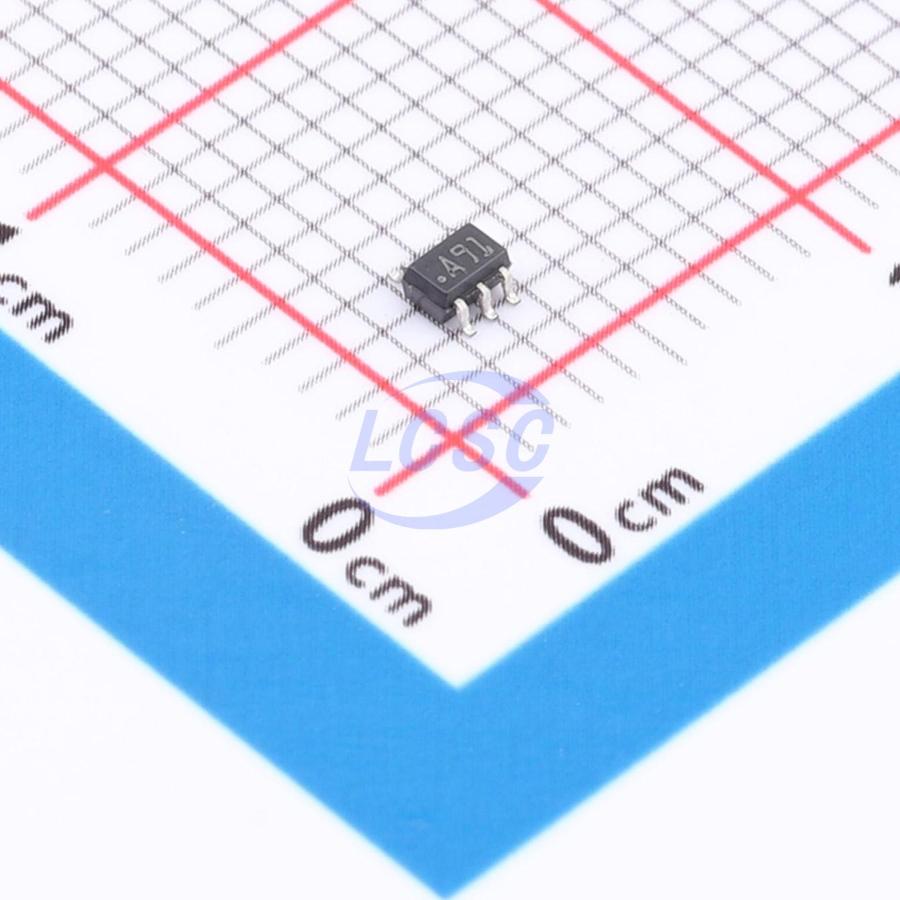

LPV511MG/NOPB

1.35mA 1 200uV 7.7V/ms 77dB 320pA 880nA 27kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

Micropower, Rail-to-Rail Input and Output Operational Amplifier

Manufacturer: TI
Manufacturer part #: LPV511MG/NOPB
Store part #: C2058400
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C2058400

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹229.54	₹229.54
10+	₹194.18	₹1,941.80
30+	₹172.04	₹5,161.20
100+	₹149.49	₹14,949.00
500+	₹139.29	₹69,645.00
1,000+	₹134.73	₹1,34,730.00

Quantity (min 1)

1 × ₹229.54

₹229.54

excl. GST

₹270.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LPV511MG/NOPB

₹229.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 1.35mA
Number of Channels: 1
Vos - Input Offset Voltage: 200uV
Slew Rate: 7.7V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 77dB
Ib - Input Bias Current: 320pA
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 880nA
Gain Bandwidth Product: 27kHz
Features: Built-in compensation
Input Voltage Noise Density: 320nV/√Hz@100Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.082 g

Overview

The LPV511 is a micropower operational amplifier that operates from a voltage supply range as wide as 2.7 V to 12 V with ensured specifications at 3 V, 5 V, and 12 V. The ultra-low power LPV511 exhibits an excellent speed to power ratio, drawing only 880 nA of supply current with a bandwidth of 27 kHz. These specifications make the LPV511 an ideal choice for battery-powered systems that require long life through low supply current, such as instrumentation, sensor conditioning and battery current monitoring. The LPV511 has an input range that includes both supply rails for ground and high-side battery sensing applications. The LPV511 output swings within 100 mV of either rail to maximize the signal's dynamic range in low supply applications. In addition, the output is capable of sourcing 650 μA of current when powered by a 12-V battery. The LPV511 is fabricated on TI's advanced VIP50C process. The LPV511 is available in the space-saving SC70 package, which makes it ideal for portable electronics with area-constrained PC boards.

Applications

Battery Powered Systems
Security Systems
Micropower Thermostats
Solar Powered Systems
Portable Instrumentation
Micropower Filters
Remote Sensor Amplifiers

Key features

Wide Supply Voltage Range: 2.7 V to 12 V
Slew Rate: 7.7 V/ms
Supply Current: 880 nA
Output Short-Circuit Current: 1.35 mA
Rail-to-Rail Input
Rail-to-Rail Output: 100 mV from Rails
Bandwidth (Δ[CL = 50 pF, RL = 1 MΩ]): 27 kHz Unity Gain Stable
