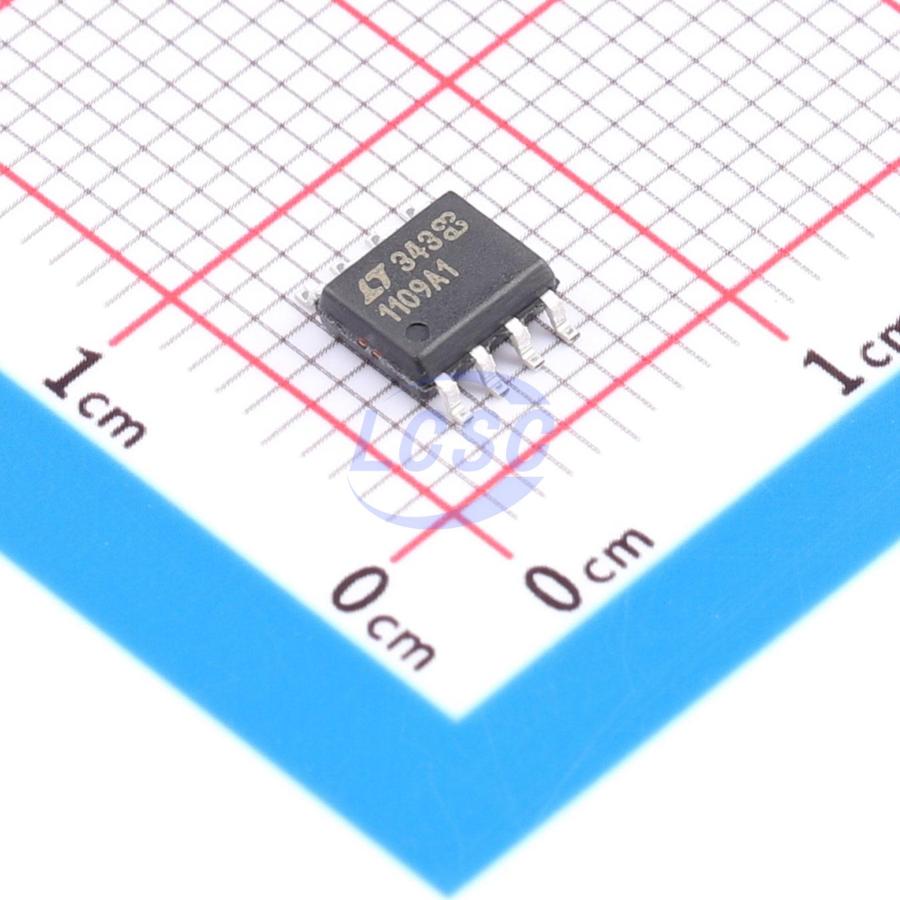

LT1109ACS8-12#PBF
120kHz Boost Fixed 12V 2A SO-8 Voltage Regulators - DC DC Switching Regulators RoHS
SO-8ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT1109ACS8-12#PBF
- Store part #
- C661594
- Package / case
- SO-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C661594
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,942.98 | ₹1,942.98 |
| 10+ | ₹1,854.13 | ₹18,541.30 |
| 30+ | ₹1,700.16 | ₹51,004.80 |
| 100+ | ₹1,565.73 | ₹1,56,573.00 |
1 × ₹1,942.98
₹1,942.98
excl. GST
₹2,292.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
LT1109ACS8-12#PBF
₹1,942.98 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 120kHz
- Function
- Boost
- Number of Outputs
- 1
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 2V~9V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 2A
- Quiescent Current
- 360uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.89 g
Overview
The LT1109A is a simple step-up DC/DC converter. The 8-pin DIP or SOIC devices require only four external components to construct a complete DC/DC converter. Current drain is just 360μA at no load, making the device ideal for cost-sensitive applications where standby current must be kept to a minimum. The LT1109A-12 can deliver 12V at over 150mA from a 5V supply, enough power to program four flash memory chips simultaneously. The LT1109A-5 can deliver 5V at up to 110mA from a 2V input. The devices feature a shutdown pin that turns off the oscillator when taken low. The gated oscillator design requires no frequency compensation components. High frequency 120kHz operation permits the use of small surface mount inductors and capacitors.
Applications
- Flash Memory VPP Generators
- 5V to 12V Converters
- 3.3V to 12V Converters
- Disk Drives
- PC Plug-In Cards
- Peripherals Battery-Powered Equipment
Key features
- Uses Off-the-Shelf Inductors
- Low Cost
- 8-Pin DIP or SO Package
- Fixed 5V or 12V Output or Adjustable Version
- Only Four External Components Required
- 360μA Standby Current
- Logic-Controlled Shutdown
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT1109ACS8-12#TRPBF#C661595ADI · SO-8 | ADI | SO-8 | On request | ₹601.17 · 0 in stock | View | |
