ADI

LT1213CS8#TRPBF

30mA 2 100uV 12V/us 105dB 100nA 28MHz 2.7mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Single Supply Dual and Quad Precision Op Amps

Manufacturer: ADI
Manufacturer part #: LT1213CS8#TRPBF
Store part #: C663156
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C663156

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹2,114.42	₹2,114.42
10+	₹2,011.52	₹20,115.20
30+	₹1,832.98	₹54,989.40
100+	₹1,677.33	₹1,67,733.00

Quantity (min 1)

1 × ₹2,114.42

₹2,114.42

excl. GST

₹2,495.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

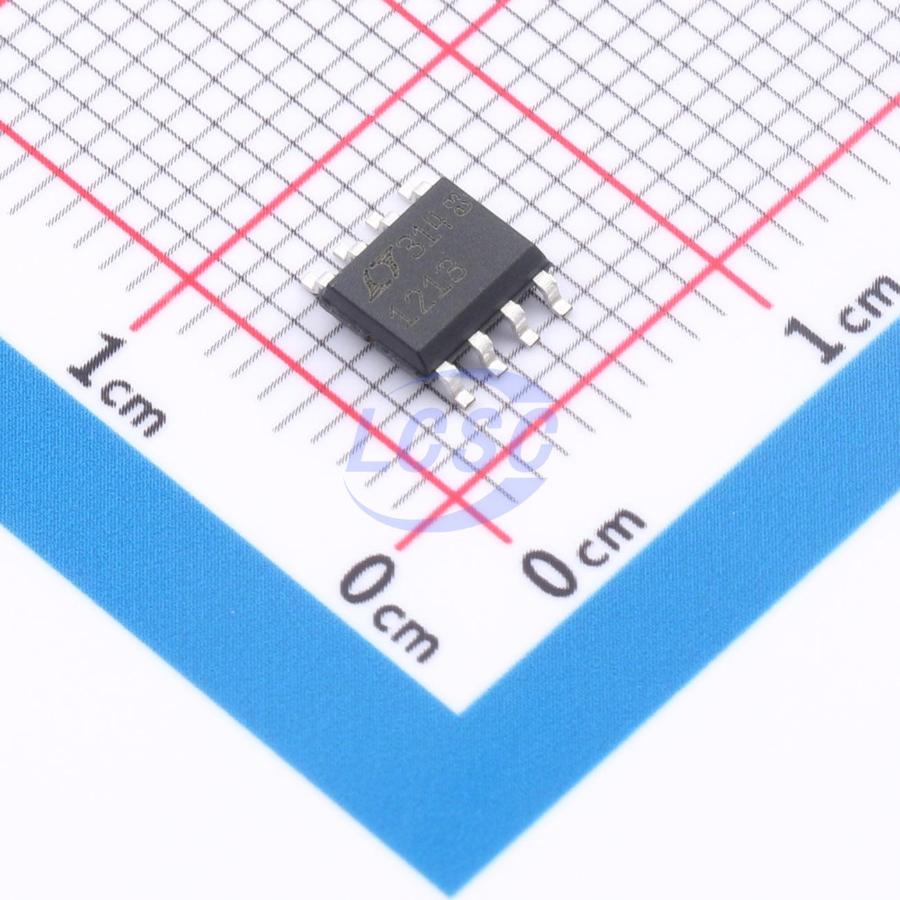

LT1213CS8#TRPBF

₹2,114.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 100uV
Slew Rate: 12V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 105dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Gain Bandwidth Product: 28MHz
Quiescent Current: 2.7mA
Features: Reverse-phase input protection
Input Voltage Noise Density: 10nV/√Hz@1kHz
Single Supply: 2.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.15 g

Overview

The LT1213 is a dual, single supply precision op amp with a 28MHz gain-bandwidth product and a 12V/µs slew rate. The LT1214 is a quad version of the same amplifier. The DC precision of the LT1213/LT1214 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. The LT1213/LT1214 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified at single 3.3V, single 5V and ±15V supplies, and only require 2.7mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.

Applications

2.5V Full-Scale 12-Bit Systems: VOS ≤ 0.45LSB
10V Full-Scale 16-Bit Systems: VOS ≤ 1.8LSB
Active Filters
Photodiode Amplifiers
DAC Current-to-Voltage Amplifiers
Battery-Powered Systems

Key features

Slew Rate: 12V/µs Typ
Gain-Bandwidth Product: 28MHz Typ
Fast Settling to 0.01% 2V Step to 200µV: 500ns Typ 10V Step to 1mV: 1.1µs Typ
Excellent DC Precision in All Packages Input Offset Voltage: 275µV Max Input Offset Voltage Drift: 6µV/°C Max Input Offset Current: 40nA Max Input Bias Current: 200nA Max Open-Loop Gain: 1200V/mV Min
Single Supply Operation Input Voltage Range Includes Ground Output Swings to Ground While Sinking Current
Low Input Noise Voltage: 10nV/√Hz Typ
Low Input Noise Current: 0.2pA/√Hz Typ
Specified at 3.3V, 5V and ±15V
Large Output Drive Current: 30mA Min
Low Supply Current per Amplifier: 3.5mA Max
Dual in 8-Pin DIP and SO-8
Quad in 14-Pin DIP and NARROW SO-16
