ADIDatasheet (PDF)

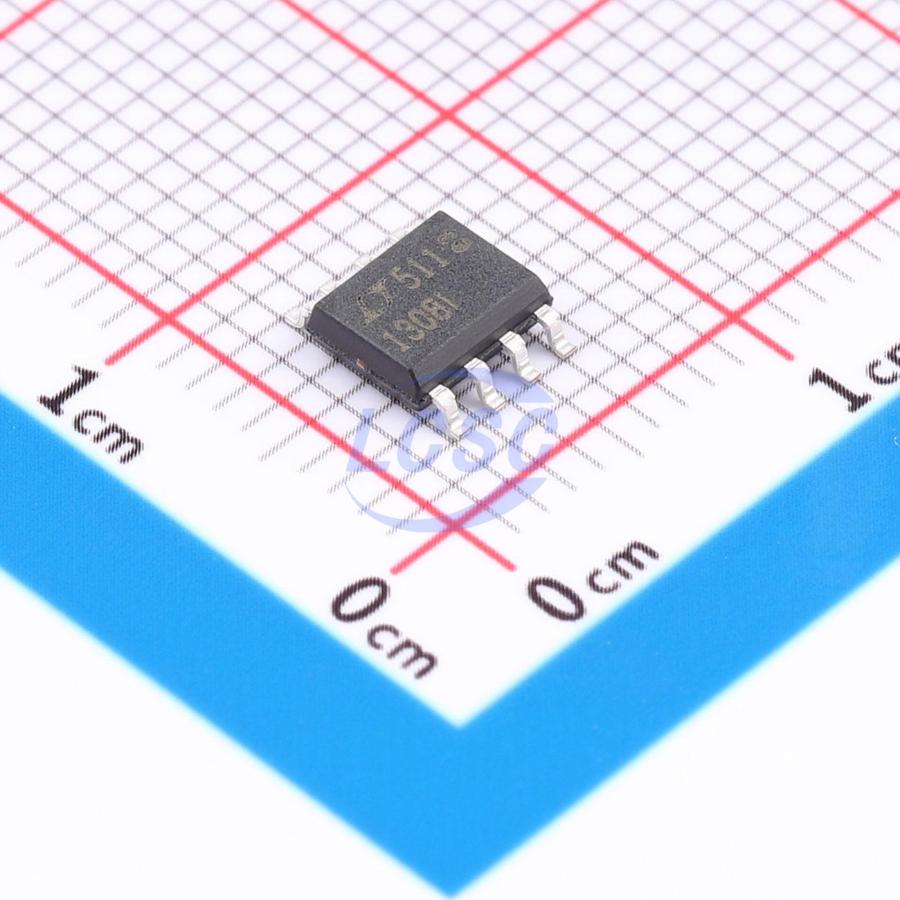

LT1308IS8#PBF
600kHz Boost Adjustable 2A SO-8 Voltage Regulators - DC DC Switching Regulators RoHS
SO-8ROHS3 CompliantActive
Single Cell High Current Micropower 600kHz Boost DC/DC Converter
- Manufacturer
- ADI
- Manufacturer part #
- LT1308IS8#PBF
- Store part #
- C663413
- Package / case
- SO-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C663413
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,358.46 | ₹3,358.46 |
| 10+ | ₹3,243.11 | ₹32,431.10 |
1 × ₹3,358.46
₹3,358.46
excl. GST
₹3,962.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
LT1308IS8#PBF
₹3,358.46 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 600kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1V~6V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.3 g
Overview
The LT1308 is a micropower, fixed frequency boost DC/DC converter that operates from an input voltage as low as 1V. Capable of delivering 5V at load current of 1A from a single Li-Ion cell, the LT1308 also features power saving Burst Mode operation at light loads. High efficiency is maintained over a broad 1mA to 1A load range. The device contains a low-battery detector with a 200mV reference and shuts down to less than 5µA quiescent current. No-load quiescent current is 100µA and the internal NPN power switch handles a 2A current with a voltage drop of just 300mV. High frequency 600kHz switching allows the use of small, surface mount components. The LT1308’s current mode architecture provides fast response to load and line variations. The device is available in an 8-lead SO package.
Applications
- GSM Terminals
- Digital Cameras
- Answer-Back Pagers
- Cordless Telephones
- DECT Phones
- GPS Receivers
- Battery Backup Supplies
Key features
- 5V at 1A from a Single Li-Ion Cell
- 3.3V at 300mA from a Single NiCd Cell
- Low Quiescent Current: 100µA
- Operates with VIN as Low as 1V
- Fixed Frequency Operation: 600kHz
- Current Mode PWM Delivers Low Output Ripple
- Guaranteed Start-Up into Full Load
- Low Shutdown Current: 3µA
- Low-Battery Comparator
- Automatic Burst ModeTM Operation at Light Load
- Low VCESAT Switch: 300mV at 2A
