ADIDatasheet (PDF)

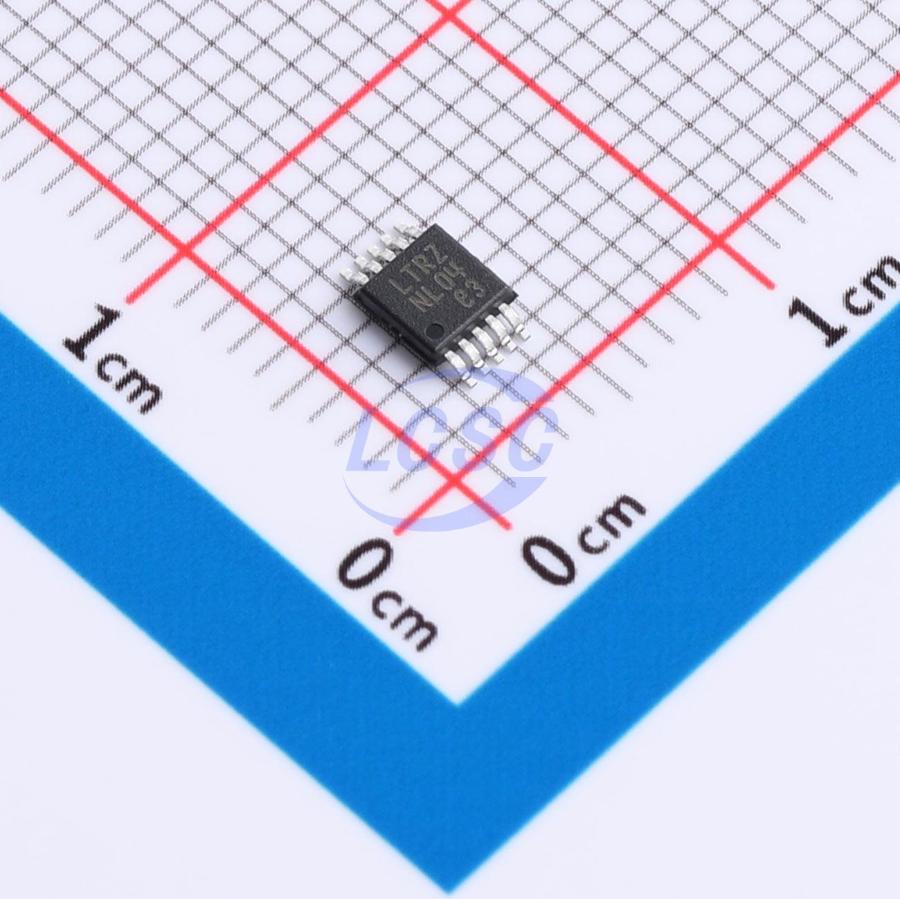

LT1310EMSE#PBF
4.5MHz Boost Adjustable 1.5A 2.8V~35V MSOP-10-EP Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-10-EPROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT1310EMSE#PBF
- Store part #
- C663415
- Package / case
- MSOP-10-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C663415
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,892.83 | ₹1,892.83 |
| 10+ | ₹1,831.22 | ₹18,312.20 |
1 × ₹1,892.83
₹1,892.83
excl. GST
₹2,233.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LT1310EMSE#PBF
₹1,892.83 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 4.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Frequency synchronization;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.8V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Output Voltage
- 2.8V~35V
- Quiescent Current
- 11.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
The LT1310 boost DC/DC converter combines a 1.5A current mode PWM switcher with an integrated phaselocked loop, allowing the user to set the switching frequency anywhere from 10kHz to 4.5MHz. Intended for use in applications where switching frequency must be accurately controlled, the LT1310 can generate 12V at up to 400mA from a 5V input. Switching frequency is set with an external capacitor, and the device can be operated in either free-running or phaselocked mode. A wide capture range of nearly 2:1 allows the free-running frequency to be set using standard ±10% tolerance NP0 dielectric capacitors. The LT1310 is available in the tiny thermally enhanced 10-lead MSOP package.
Applications
- Instruments
- Data Acquisition
- Communications
- Imaging
- Ultrasound
Key features
- Synchronizable or Constant Frequency
- Low Noise Output
- Synchronizable Up to 4.5MHz
- Wide Input Voltage Range: 2.8V to 18V
- Low Profile Surface Mount Solution (All Ceramic Capacitors)
- Low VCESAT Switch: 240mV at 1A
- Adjustable Output from VIN to 35V
- Small Thermally Enhanced 10-Lead MSOP Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT1310EMSE#TRPBF#C663416ADI · MSOP-10-EP | ADI | MSOP-10-EP | On request | ₹694.91 · 0 in stock | View | |
