ADIDatasheet (PDF)

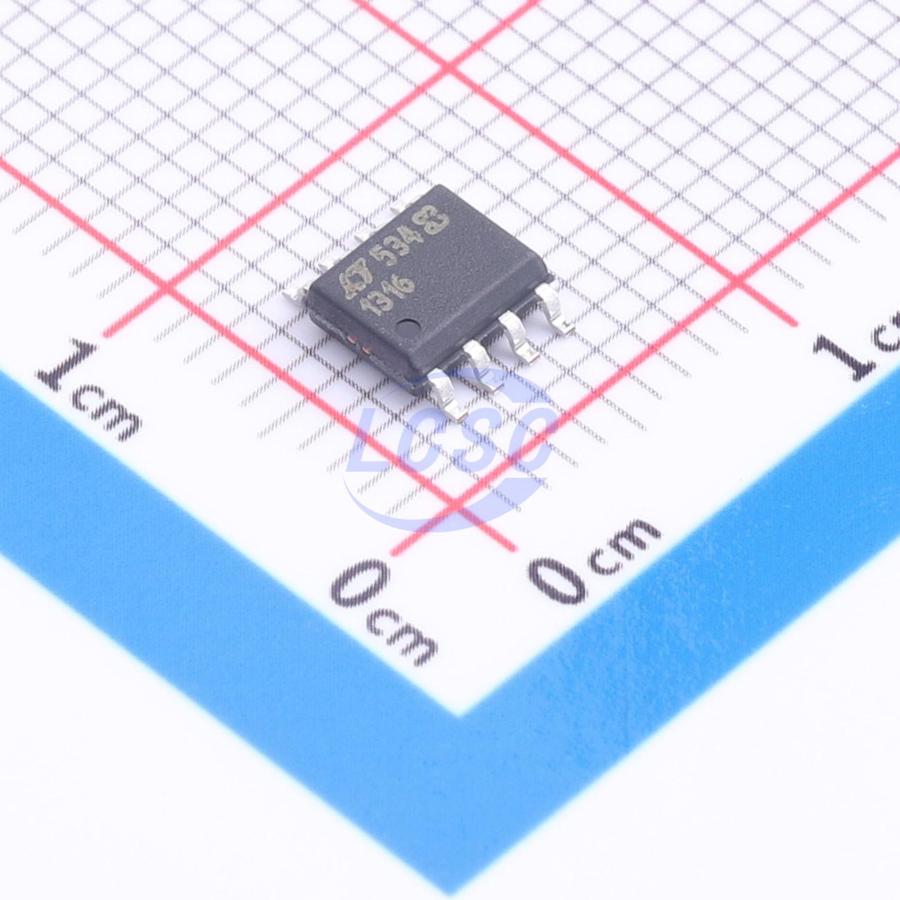

LT1316CS8#PBF
Boost Adjustable 750mA 1.23V~30V SO-8 Voltage Regulators - DC DC Switching Regulators RoHS
SO-8ROHS3 CompliantActive
Precise Control of Peak Switch Current
- Manufacturer
- ADI
- Manufacturer part #
- LT1316CS8#PBF
- Store part #
- C663421
- Package / case
- SO-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C663421
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,207.85 | ₹2,207.85 |
| 10+ | ₹2,104.99 | ₹21,049.90 |
| 30+ | ₹1,926.38 | ₹57,791.40 |
| 100+ | ₹1,770.58 | ₹1,77,058.00 |
1 × ₹2,207.85
₹2,207.85
excl. GST
₹2,605.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
LT1316CS8#PBF
₹2,207.85 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.5V~12V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 750mA
- Output Voltage
- 1.23V~30V
- Quiescent Current
- 33uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.72 g
Overview
The LT1316 is a micropower step-up DC/DC converter that operates from an input voltage as low as 1.5V. A programmable input current limiting function allows precise control of peak switch current. Peak switch current can be set to any value between 30mA and 500mA by adjusting one resistor. This is particularly useful for DC/DC converters operating from high source impedance inputs such as lithium coin cells or telephone lines. The fixed off-time, variable on-time regulation scheme results in quiescent current of only 33μA in active mode. Quiescent current decreases to 3μA in shutdown with the low-battery detector still active. The LT1316 is available in 8-lead MSOP and SO packages.
Applications
- Battery Backup
- LCD Bias
- Low Power –48V to 5V/3.3V Converters
Key features
- Precise Control of Peak Switch Current
- Quiescent Current: 33μA in Active Mode 3μA in Shutdown Mode
- Low-Battery Detector Active in Shutdown
- Low Switch VCESAT: 300mV at 500mA
- 8-Lead MSOP and SO Packages
- Operates with VIN as low as 1.5V
- Logic Level Shutdown Pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT1316CS8#TRPBF#C663422ADI · SO-8 | ADI | SO-8 | On request | ₹628.53 · 0 in stock | View | |
| LT1316IS8#PBF#C663423ADI · SO-8 | ADI | SO-8 | On request | ₹1,382.15 · 0 in stock | View | |
| LT1317CS8#PBF#C579706ADI · SO-8 | ADI | SO-8 | On request | ₹607.34 · 0 in stock | View | |
| LT1316IS8#TRPBF#C663424ADI · SO-8 | ADI | SO-8 | On request | ₹701.85 · 0 in stock | View | |
