ADI

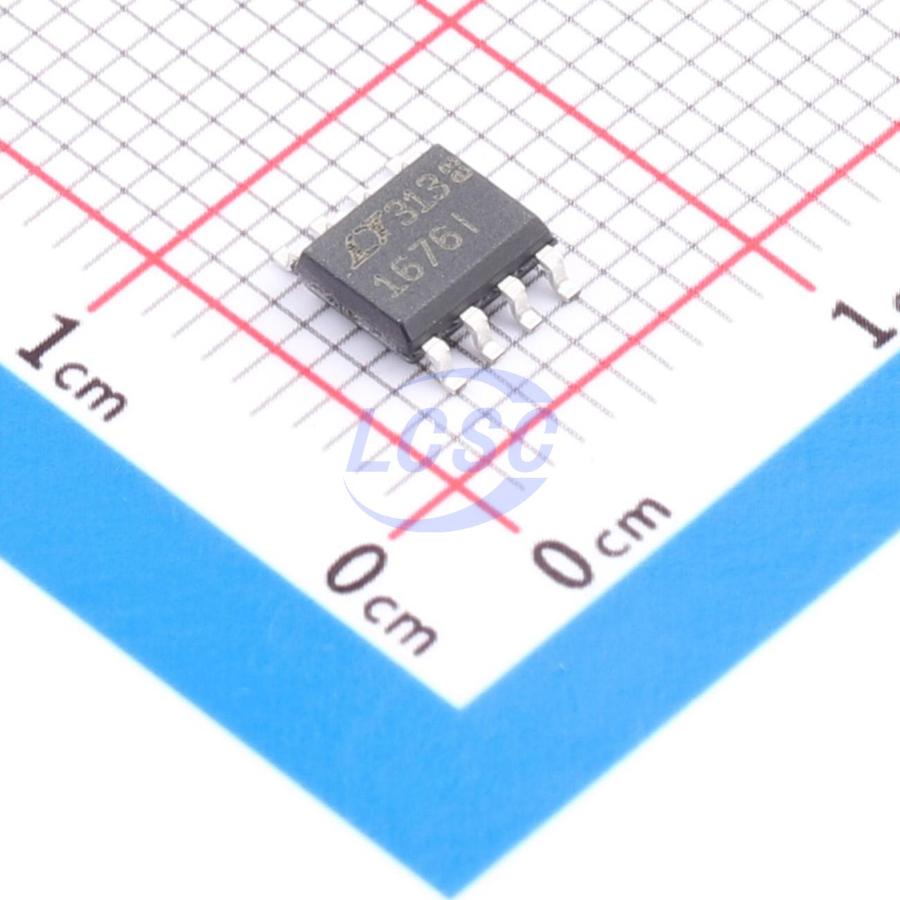

LT1676IS8#PBF

100kHz Step-down type Adjustable 550mA 1.24V~51V SO-8 Voltage Regulators - DC DC Switching Regulators RoHS

SO-8ROHS3 CompliantActive

Wide Input Range, High Efficiency, Step-Down Switching Regulator

Manufacturer: ADI
Manufacturer part #: LT1676IS8#PBF
Store part #: C664594
Package / case: SO-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28 in stock

#C664594

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹1,713.17	₹1,713.17
10+	₹1,632.56	₹16,325.60
30+	₹1,493.27	₹44,798.10
100+	₹1,371.58	₹1,37,158.00

Quantity (min 1)

1 × ₹1,713.17

₹1,713.17

excl. GST

₹2,021.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

LT1676IS8#PBF

₹1,713.17 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 100kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Frequency synchronization;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 7.4V~60V
Switch tube (built-in/external): Built-in
Output Current: 550mA
Output Voltage: 1.24V~51V
Quiescent Current: 800uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.209 g

Overview

The LT1676 is a wide input range, high efficiency Buck (step-down) switching regulator. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current mode control offers excellent dynamic input supply rejection and short-circuit protection. The LT1676 contains several features to enhance efficiency. The internal control circuitry is normally powered via the VCC pin, thereby minimizing power drawn directly from the VIN supply. The action of the LT1676 switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains high rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behavior. The available SO-8 package and 100kHz switching frequency allow for minimal PC board area requirements.

Applications

Automotive DC/DC Converters
Telecom 48V Step-Down Converters
Cellular Phone Battery Charger Accessories
IEEE 1394 Step-Down Converters

Key features

Wide Input Range: 7.4V to 60V
700mA Peak Switch Current Rating
Adaptive Switch Drive Maintains Efficiency at High Load Without Pulse Skipping at Light Load
True Current Mode Control
100kHz Fixed Operating Frequency
Synchronizable to 250kHz
Low Supply Current in Shutdown: 30µA
Available in 8-Pin SO and PDIP Packages
