ADI

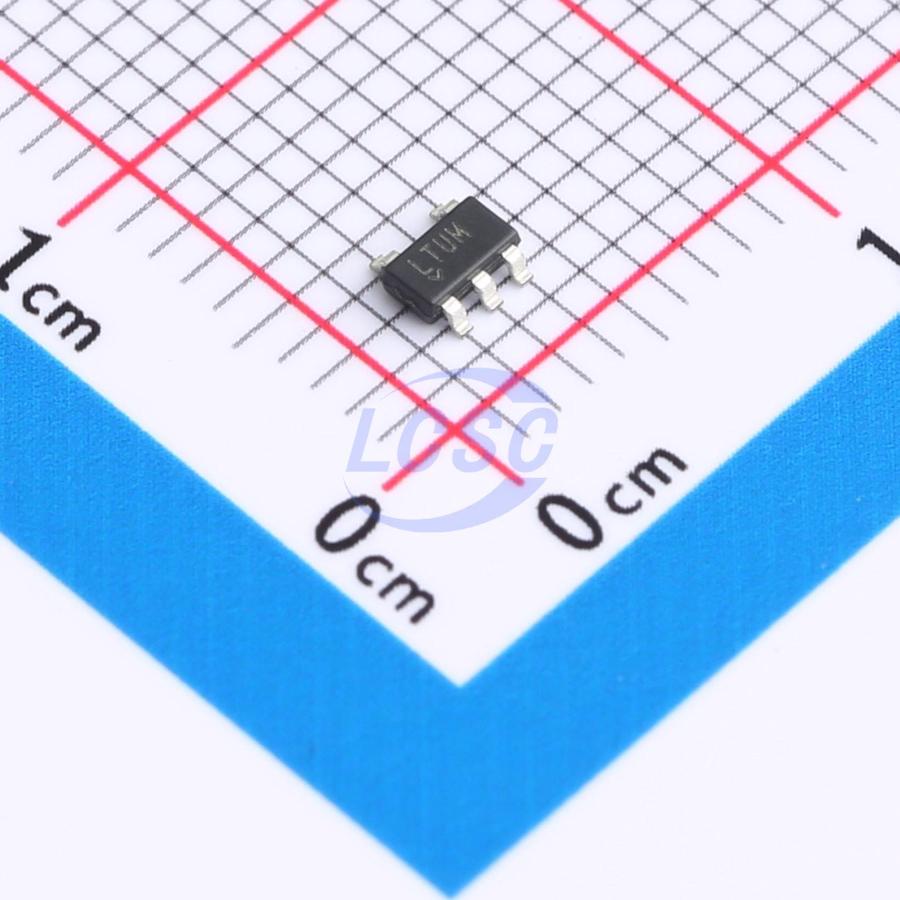

LT1880CS5#TRMPBF

20mA 1 40uV 0.4V/us 150pA 135dB 1.2mA 1.1MHz Rail-to-rail output TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

TSOT-23-5ROHS3 CompliantActive

SOT-23, Rail-to-Rail Output, Picoamp Input Current Precision Op Amp

Manufacturer: ADI
Manufacturer part #: LT1880CS5#TRMPBF
Store part #: C579918
Package / case: TSOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C579918

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,036.29	₹1,036.29
10+	₹891.15	₹8,911.50
30+	₹802.70	₹24,081.00
100+	₹728.60	₹72,860.00

Quantity (min 1)

1 × ₹1,036.29

₹1,036.29

excl. GST

₹1,222.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LT1880CS5#TRMPBF

₹1,036.29 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 40uV
Slew Rate: 0.4V/us
Input Offset Current(Ios): 150pA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 150pA
Common Mode Rejection Ratio(CMRR): 135dB
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 1.2mA
Gain Bandwidth Product: 1.1MHz
Features: ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 13nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.024 g

Overview

The LT1880 op amp brings high accuracy input performance and rail-to-rail output swing to the SOT-23 package. Input offset voltage is trimmed to less than 150μV and the low drift maintains this accuracy over the operating temperature range. Input bias current is an ultralow 900pA maximum. The amplifier works on any total power supply voltage between 2.7V and 36V. Output voltage swings to within 55mV of the negative supply and 250mV of the positive supply, which makes the amplifier a good choice for low voltage single supply operation. Slew rates of 0.4V/μs with a supply current of 1.2mA give superior response and settling time performance in a low power precision amplifier. The LT1880 is available in a 5-lead SOT-23 package.

Applications

Thermocouple Amplifiers
Bridge Transducer Conditioners
Instrumentation Amplifiers
Battery-Powered Systems
Photocurrent Amplifiers

Key features

Offset Voltage: 150μV Max
Input Bias Current: 900pA Max
Offset Voltage Drift: 1.2μV/°C Max
Rail-to-Rail Output Swing
Operates with Single or Split Supplies
Open-Loop Voltage Gain: 1 Million Min
1.2mA Supply Current
Slew Rate: 0.4V/μs
Gain Bandwidth: 1.1MHz
Low Noise: 13nV/√Hz at 1kHz
Low Profile (1mm) ThinSOT Package

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LT1880IS5#TRMPBF#C579919ADI · TSOT-23-5	ADI	TSOT-23-5	On request	₹521.13 · 0 in stock	View
	MAX44244AUK+T#C2976380MAXIM · SOT-23-5	MAXIM	SOT-23-5	On request	₹1,185.65 · 0 in stock	View
