ADIDatasheet (PDF)

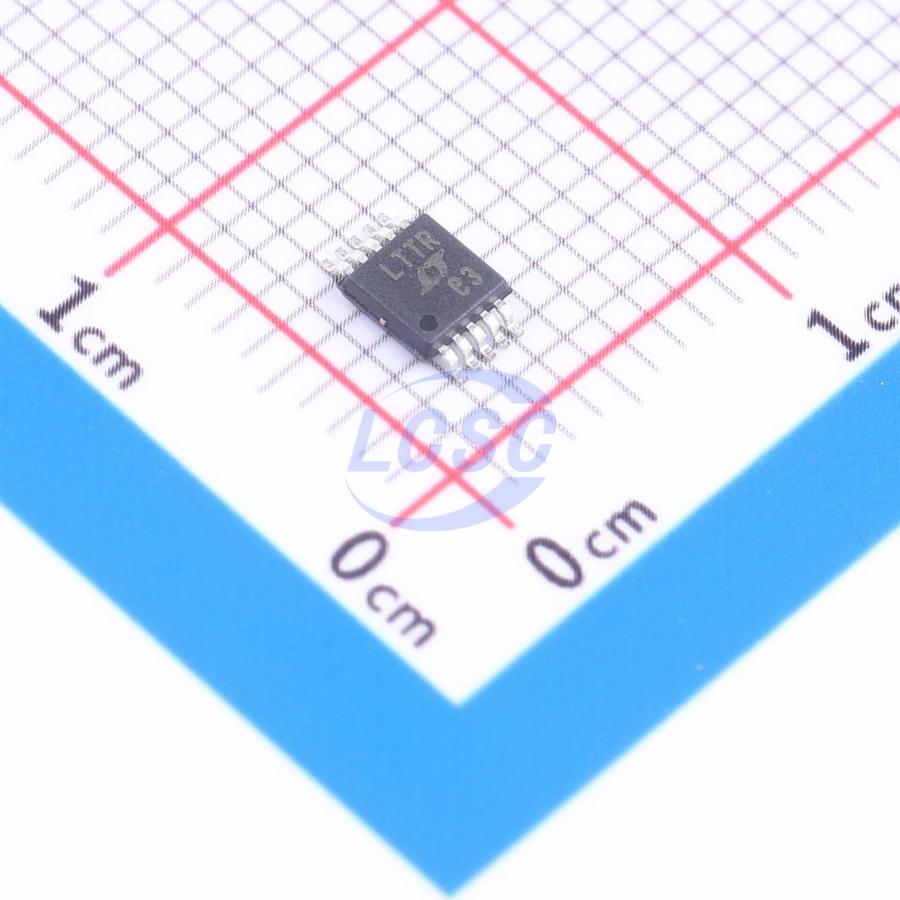

LT1944EMS#PBF
Boost Adjustable 1.23V~34V MSOP-10 Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-10ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT1944EMS#PBF
- Store part #
- C665597
- Package / case
- MSOP-10
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C665597
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,227.82 | ₹1,227.82 |
| 10+ | ₹1,197.04 | ₹11,970.40 |
| 30+ | ₹1,176.44 | ₹35,293.20 |
| 100+ | ₹1,155.84 | ₹1,15,584.00 |
1 × ₹1,227.82
₹1,227.82
excl. GST
₹1,448.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LT1944EMS#PBF
₹1,227.82 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Number of Outputs
- 2
- Function
- Boost
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.2V~15V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~34V
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.86 g
Overview
A dual micropower step-up DC/DC converter in a 10-pin MSOP package. Each converter is designed with a 350mA current limit and an input voltage range of 1.2 to 15 , making it ideal for a wide variety of applications. Both converters feature a quiescent current of only 20μA at no load, which further reduces to 0.5μA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The 36 switch allows high voltage outputs up to 34 to be easily generated in a simple boost topology without the use of costly transformers. Its low off-time of 400ns permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.
Applications
- LCD Bias
- Handheld Computers
- Battery Backup
- Digital Cameras
Key features
- Low Quiescent Current: 20μA in Active Mode <1μA in Shutdown Mode
- Operates with VIN as Low as 1.2V
- Low VCESAT Switch: 250mV at 300mA
- Uses Small Surface Mount Components
- High Output Voltage: Up to 34V
- Tiny 10-Pin MSOP Package
