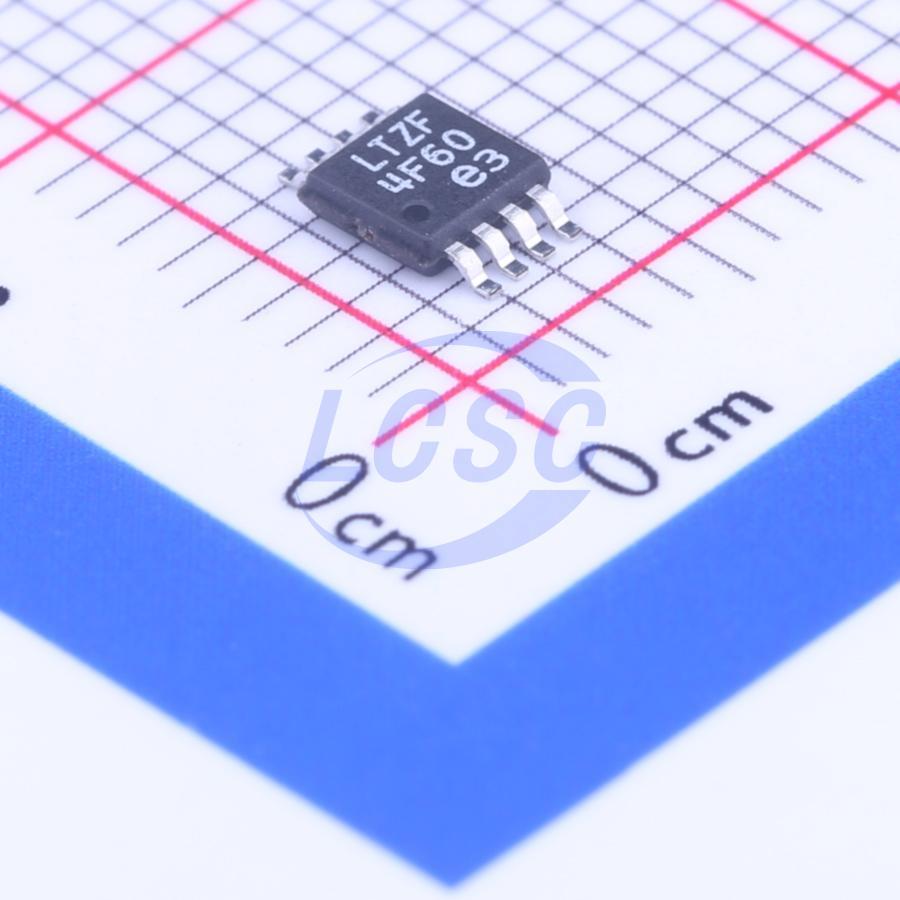

LT3010EMS8E#PBF
1.275V~60V Positive Adjustable MSOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
MSOP-8-EPROHS3 CompliantActive
ADJ Input 80V Output 1.275V~60V 50mA
- Manufacturer
- ADI
- Manufacturer part #
- LT3010EMS8E#PBF
- Store part #
- C117342
- Package / case
- MSOP-8-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C117342
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹940.53 | ₹940.53 |
| 10+ | ₹809.69 | ₹8,096.90 |
| 30+ | ₹730.10 | ₹21,903.00 |
| 100+ | ₹663.15 | ₹66,315.00 |
1 × ₹940.53
₹940.53
excl. GST
₹1,109.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LT3010EMS8E#PBF
₹940.53 for 1 + GST
Specifications
- Output Voltage
- 1.275V~60V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 80V
- Output Current
- 50mA
- Features
- Reverse polarity voltage protection;Reverse-polarity current protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.333 g
Overview
The ±300 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 50mA output current with a dropout voltage of 300mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (30μA operating and 1μA in shutdown) makes the LT3010 an ideal choice. Quiescent current is also well controlled in dropout.
Applications
- Low Current High Voltage Regulators
- Regulator for Battery - Powered Systems
- Telecom Applications
- Automotive Applications
Key features
- Wide Input Voltage Range: 3V to 80V
- Low Quiescent Current: 30µA
- Low Dropout Voltage: 300mV
- Output Current: 50mA
- Thermally Enhanced 8-Lead MSOP Package
- No Protection Diodes Needed
- Fixed Output Voltage: 5V (LT3010 - 5)
- Adjustable Output from 1.275V to 60V (LT3010)
- 1µA Quiescent Current in Shutdown
- Stable with 1µF Output Capacitor
- Stable with Aluminum, Tantalum or Ceramic Capacitors
- Reverse-Battery Protection
- No Reverse Current Flow from Output
- Thermal Limiting
- The ability to operate with very small output capacitors
- Internal protection circuitry includes reverse - battery protection, current limiting, thermal limiting and reverse current protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT3010EMS8E#TRPBF#C579990ADI · MSOP-8-EP | ADI | MSOP-8-EP | 4 | ₹953.08 · 4 in stock | View |
 | LT3010HMS8E#TRPBF#C666211ADI · MSOP-8-EP | ADI | MSOP-8-EP | 15 | ₹734.90 · 15 in stock | View |
| LT3010MPMS8E#TRPBF#C666214ADI · MSOP-8-EP | ADI | MSOP-8-EP | 2 | ₹891.70 · 2 in stock | View | |
 | LT3010MPMS8E#PBF#C579992ADI · MSOP-8-EP | ADI | MSOP-8-EP | 3 | ₹2,052.16 · 3 in stock | View |
| LT3010HMS8E#PBF#C666210ADI · MSOP-8-EP | ADI | MSOP-8-EP | On request | ₹502.95 · 0 in stock | View | |
