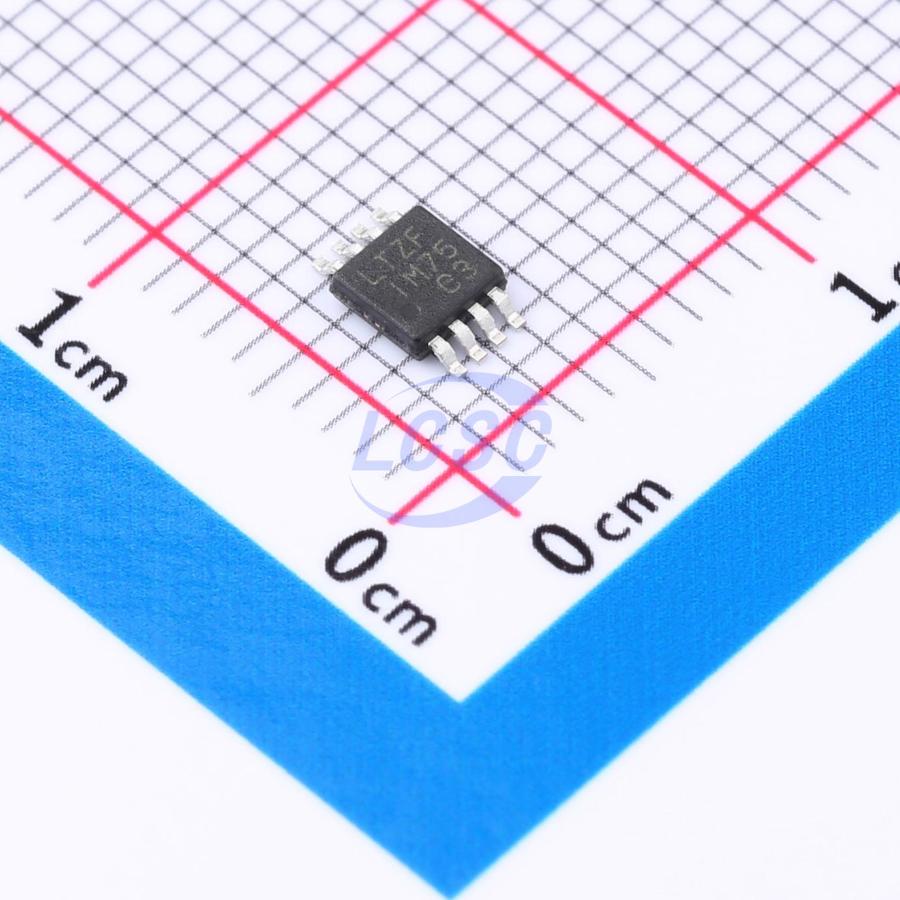

LT3010MPMS8E#PBF

The LT3010 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 50mA output current with a dropout voltage of 300mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (30µA operating and 1µA in shutdown) makes the LT3010 an ideal choice. Quiescent current is also well controlled in dropout. Other features of the LT3010 include the ability to operate with very small output capacitors. The regulators are stable with only 1µF on the output while most older devices require between 10µF and 100µF for stability. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection. The device is available in a fixed output voltage of 5V and as an adjustable device with a 1.275V reference voltage. The LT3010 regulator is available in the 8-lead MSOP package with an exposed pad for enhanced thermal handling capability.

Applications

• Low Current High Voltage Regulators
• Regulator for Battery-Powered Systems
• Telecom Applications
• Automotive Applications

Key features

• Wide Input Voltage Range: 3V to 80V
• Low Quiescent Current: 30µA
• Low Dropout Voltage: 300mV
• Output Current: 50mA
• Thermally Enhanced 8-Lead MSOP Package
• No Protection Diodes Needed
• Fixed Output Voltage: 5V (LT3010 - 5)
• Adjustable Output from 1.275V to 60V (LT3010)
• 1µA Quiescent Current in Shutdown
• Stable with 1µF Output Capacitor
• Stable with Aluminum, Tantalum or Ceramic Capacitors
• Reverse-Battery Protection
• No Reverse Current Flow from Output
• Thermal Limiting
• AEC - Q100 Qualified for Automotive Applications
