ADI

LT3461ES6#TRPBF

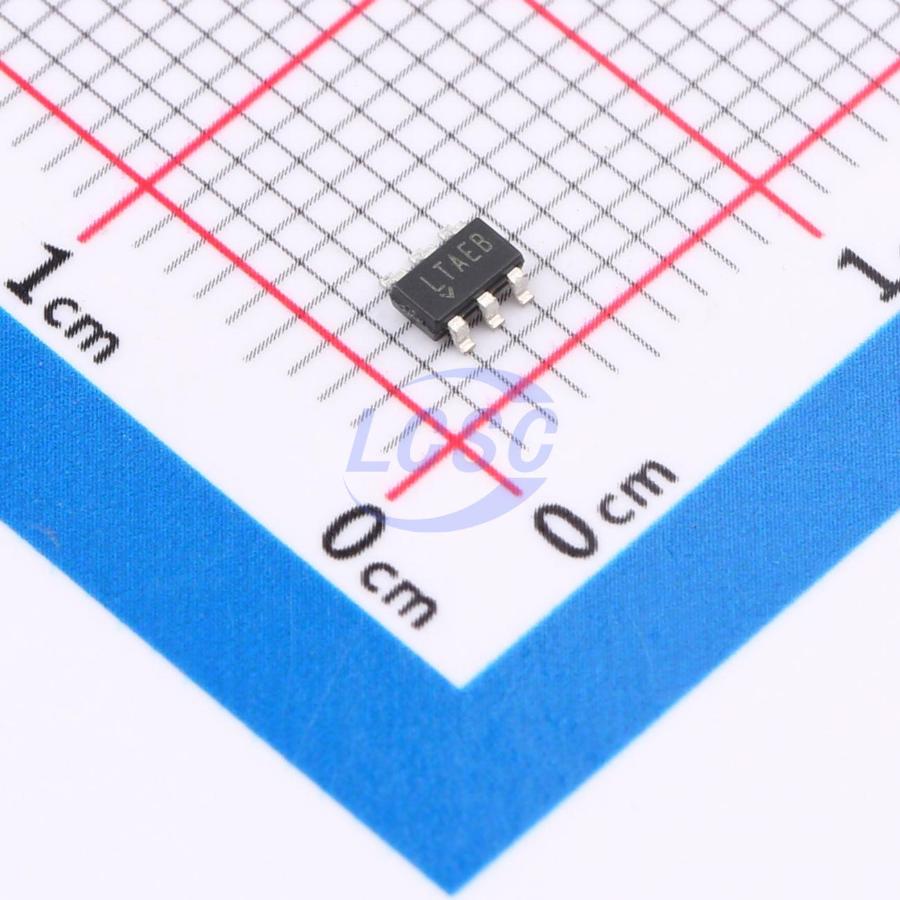

1MHz~1.7MHz Boost Adjustable 1.255V~38V 300mA TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-6LROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LT3461ES6#TRPBF
Store part #: C670573
Package / case: TSOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2 in stock

#C670573

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
1+	₹781.51	₹781.51
10+	₹763.58	₹7,635.80
30+	₹751.48	₹22,544.40
100+	₹739.37	₹73,937.00

Quantity (min 1)

1 × ₹781.51

₹781.51

excl. GST

₹922.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT3461ES6#TRPBF

₹781.51 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1MHz~1.7MHz
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.5V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 1.255V~38V
Output Current: 300mA
Quiescent Current: 2.8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.023 g

Overview

The LT3461/LT3461A are general purpose fixed frequency current mode step-up DC/DC converters. Both devices feature an integrated Schottky and a low VCESAT switch allowing a small converter footprint and lower parts cost. The LT3461 switches at 1.3MHz while the LT3461A switches at 3MHz. These high switching frequencies enable the use of tiny, low cost and low height capacitors and inductors. The constant switching frequency results in predictable output noise that is easy to filter, and the inductor based topology ensures an input free from switching noise typically present with charge pump solutions. The high voltage switch in the LT3461/LT3461A is rated at 40V making the device ideal for boost converters up to 38V. The LT3461/LT3461A are available in a low profile (1mm) SOT-23 package.

Applications

Digital Cameras
CCD Bias Supply
XDSL Power Supply
TFT-LCD Bias Supply
Local 5V or 12V Supply
Medical Diagnostic Equipment
Battery Backup

Key features

Integrated Schottky Rectifier
Fixed Frequency 1.3MHz/3MHz Operation
High Output Voltage: Up to 38V
Low VCESAT Switch: 260mV at 250mA
12V at 70mA from 5V Input
5V at 115mA from 3.3V Input
Wide Input Range: 2.5V to 16V
Uses Small Surface Mount Components
Low Shutdown Current: <1µA
Soft-Start
Low Profile (1mm) SOT-23 (ThinSOT) Package
